N Tray 3 paper sensor
Tray 3 media-presence sensor (PS451)
1. Remove the Tray 3 cassette, and then push on the sensor levers to activate the sensor.

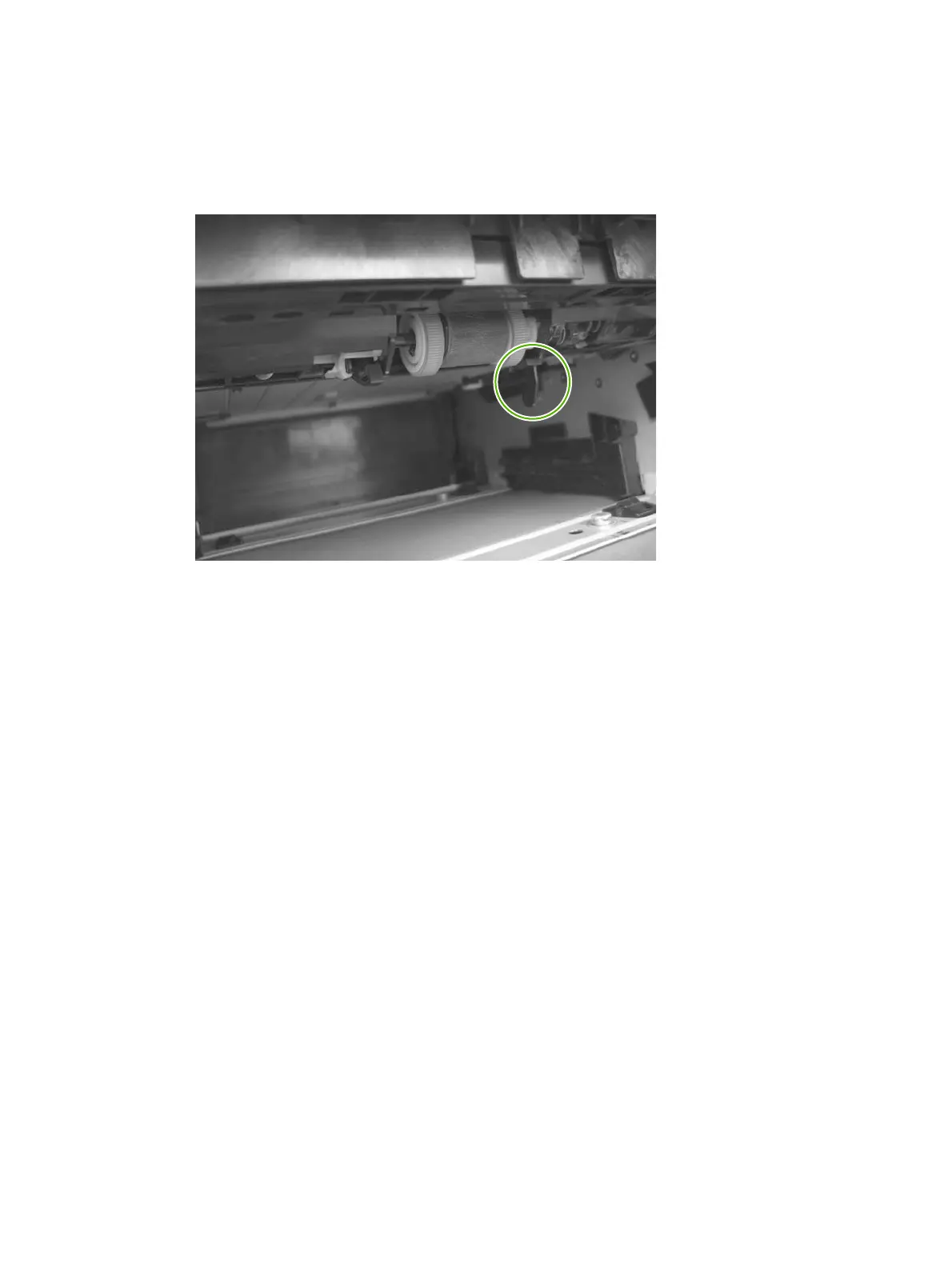

Figure 3-17 Test the Tray 3 cassette media-presence sensor
2. Check the control-panel display for sensor response.
3. If there is no response, replace the optional 500-sheet feeder.
ENWW Tools for troubleshooting 153
