Control panel
WARNING! ESD sensitive component.
1. Before proceeding, remove the following components:
●
DIMM cover. See
DIMM cover and DIMM on page 57.
●
Formatter cover. See
Formatter cover and formatter PCA on page 60.
2. Press the cartridge-door release button, and then open the cartridge door. Make sure that the door
is completely open.

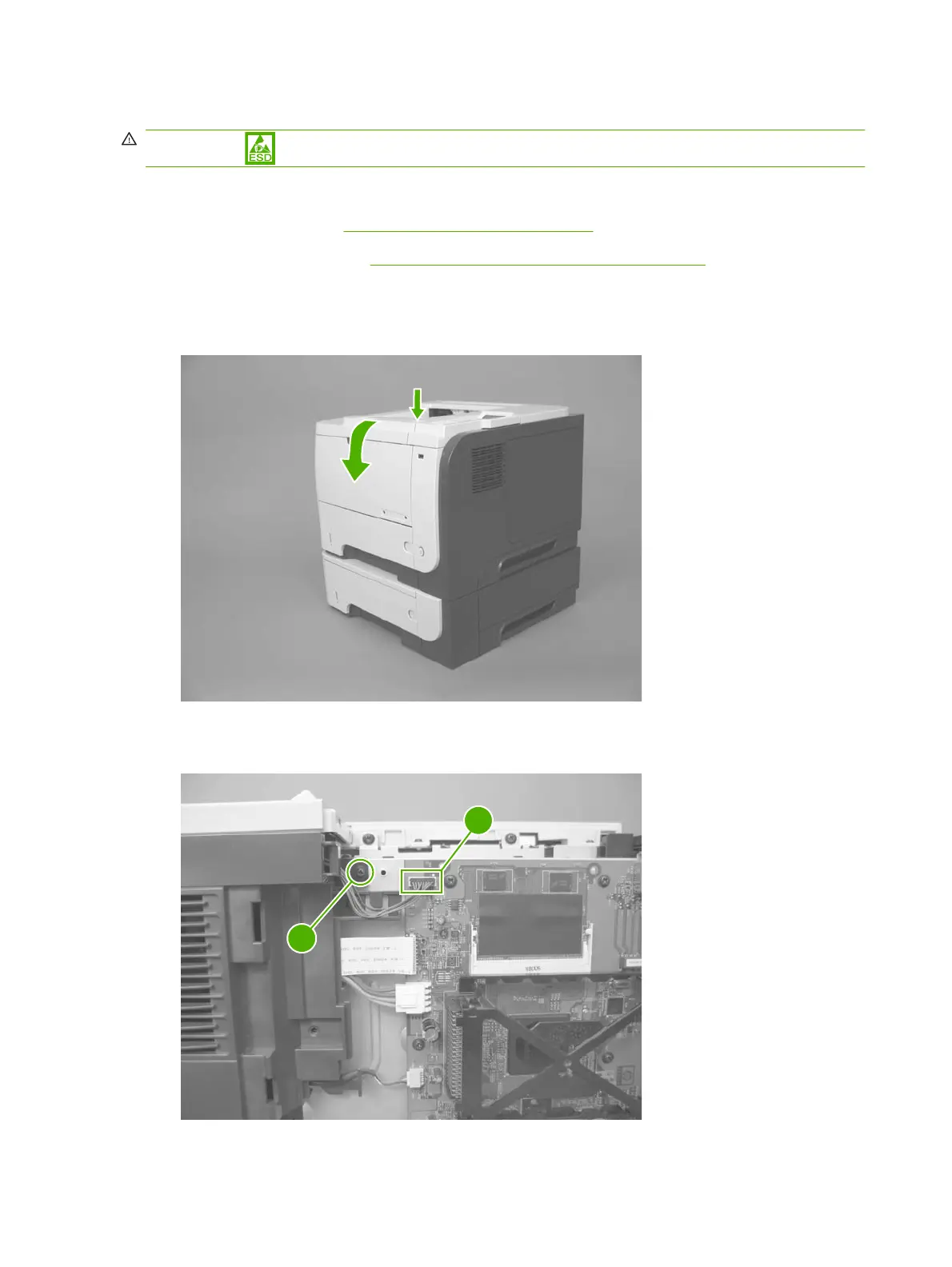

Figure 2-42 Remove the control panel (1 of 4)
3. Disconnect one connector (callout 1), and then remove one screw (callout 2).
Figure 2-43 Remove the control panel (2 of 4)
1
2
74 Chapter 2 Removal and replacement ENWW
