Laser/scanner
WARNING! ESD sensitive component.
1. Before proceeding, remove the following components:
●
DIMM cover. See
DIMM cover and DIMM on page 57.
●
Formatter cover. See
Formatter cover and formatter PCA on page 60.
●
Rear-door assembly. See
Rear-door assembly on page 62.
●
Left cover. See
Left cover on page 66.
●
Top-right cover. See
Top-right cover on page 73.
●
Control panel. See
Control panel on page 74.
●
Top cover. See
Top cover on page 84.
2. Release one tab (callout 1) on the air duct, and then lift the air duct (callout 2) out of the product.

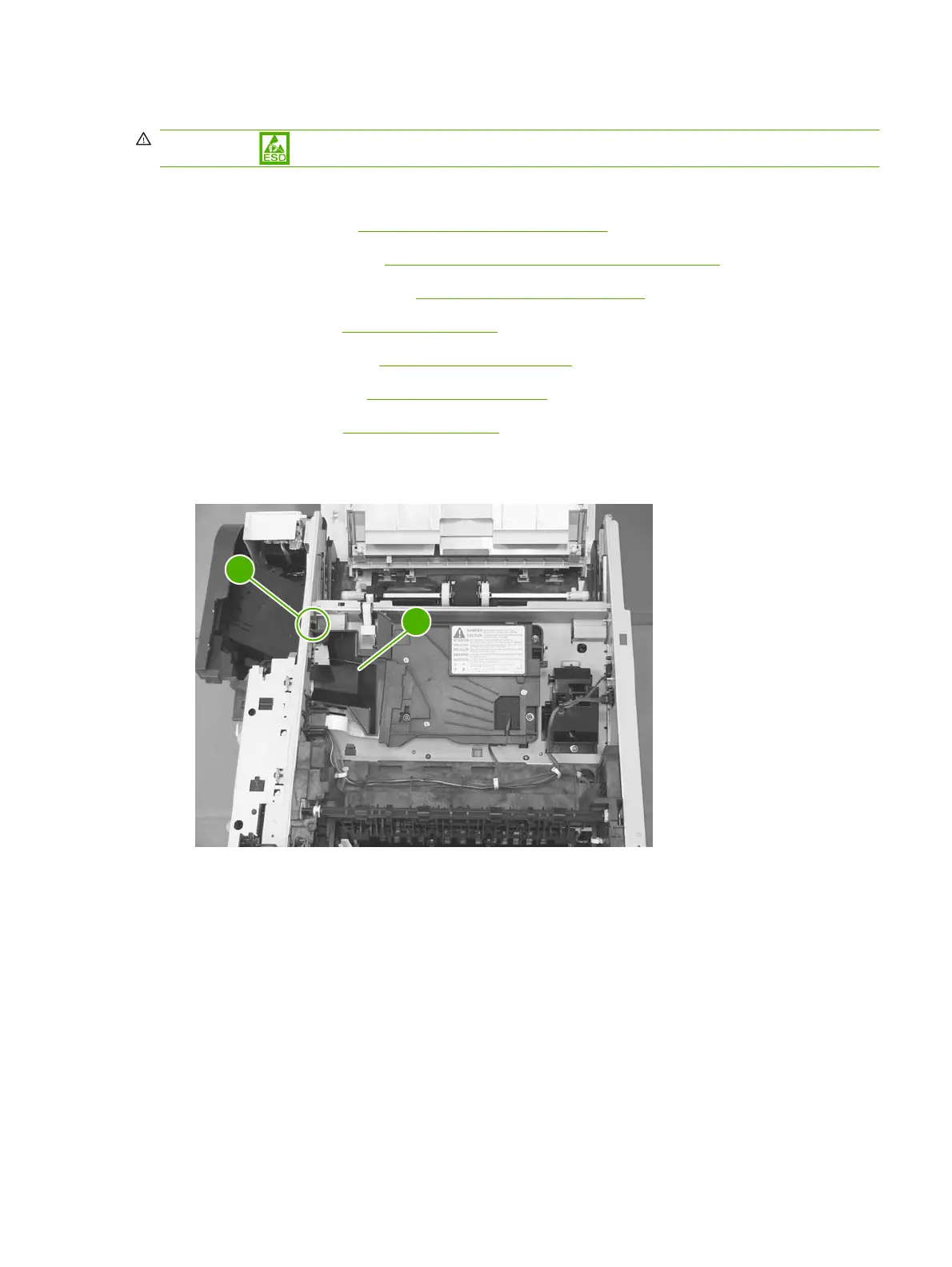

Figure 2-93 Remove the laser/scanner (1 of 5)
1
2
ENWW Removal and replacement procedures 107
