4. Disconnect three connectors (callout 1; J14, J17, and J16) and one FFC (callout 2; J18).

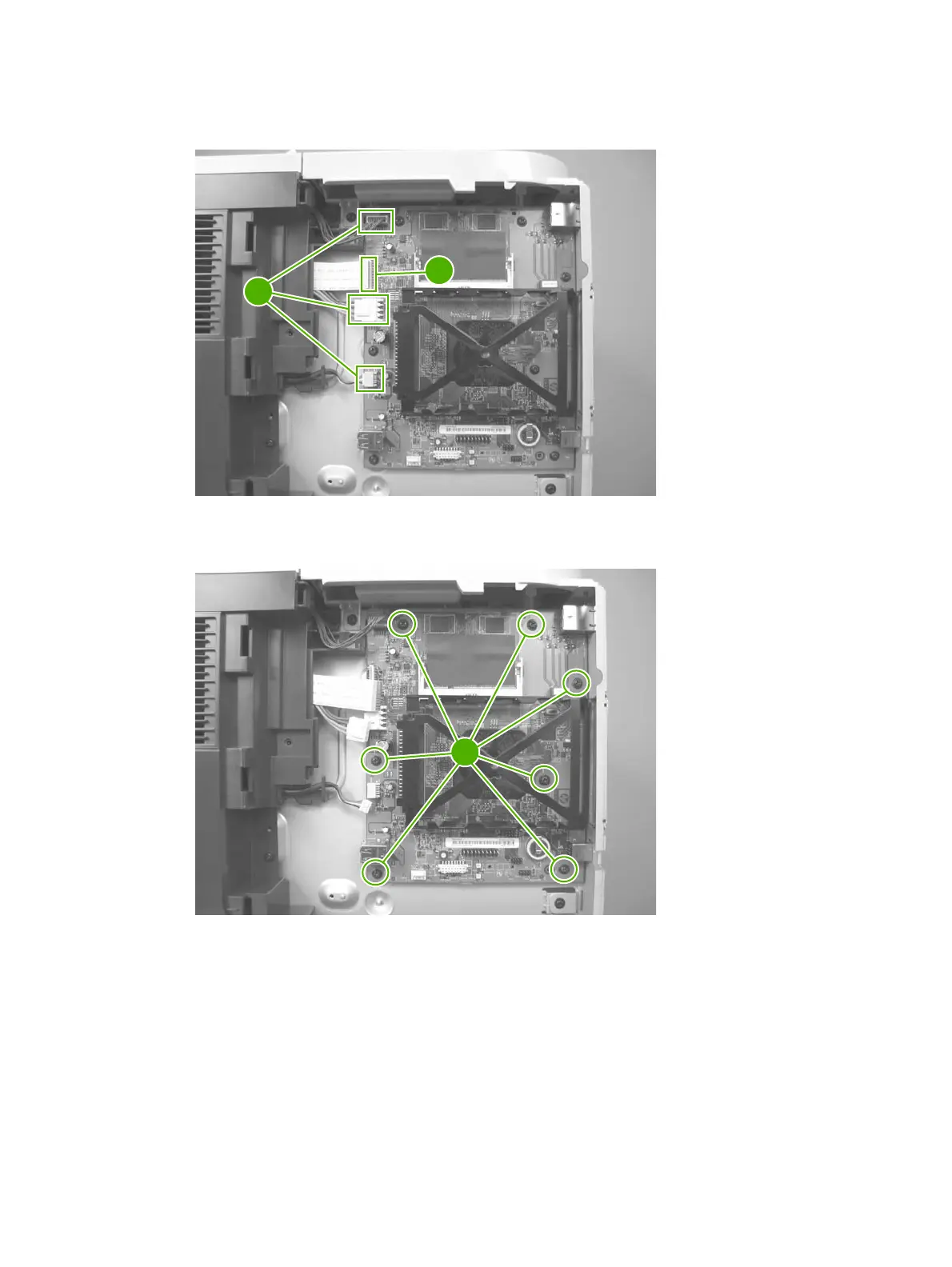

Figure 2-18 Remove the formatter cover and formatter PCA (3 of 4)
1
2
5. Remove seven screws (callout 1), and then carefully remove the formatter PCA.
Figure 2-19 Remove the formatter cover and formatter PCA (4 of 4)
1
