HAFM Server Configuration
7–17HAFM server installation guide
7–17
NOTE: These procedural steps are valid only for an initial installation. Several dialog boxes
appearing in this procedure are configured only once per installation.
To configure the call-home feature, complete the following instructions for Windows
2000:
1. Ensure an analog telephone cable is routed and connected to the modem.
2. Log on to Windows 2000 as Administrator, and then double-click Call-Home
Setup that displays on the Windows desktop to begin the configuration. If this is
the first time call-home setup is attempted, the Network Connection Wizard
dialog box displays, as shown in Figure 7–13.

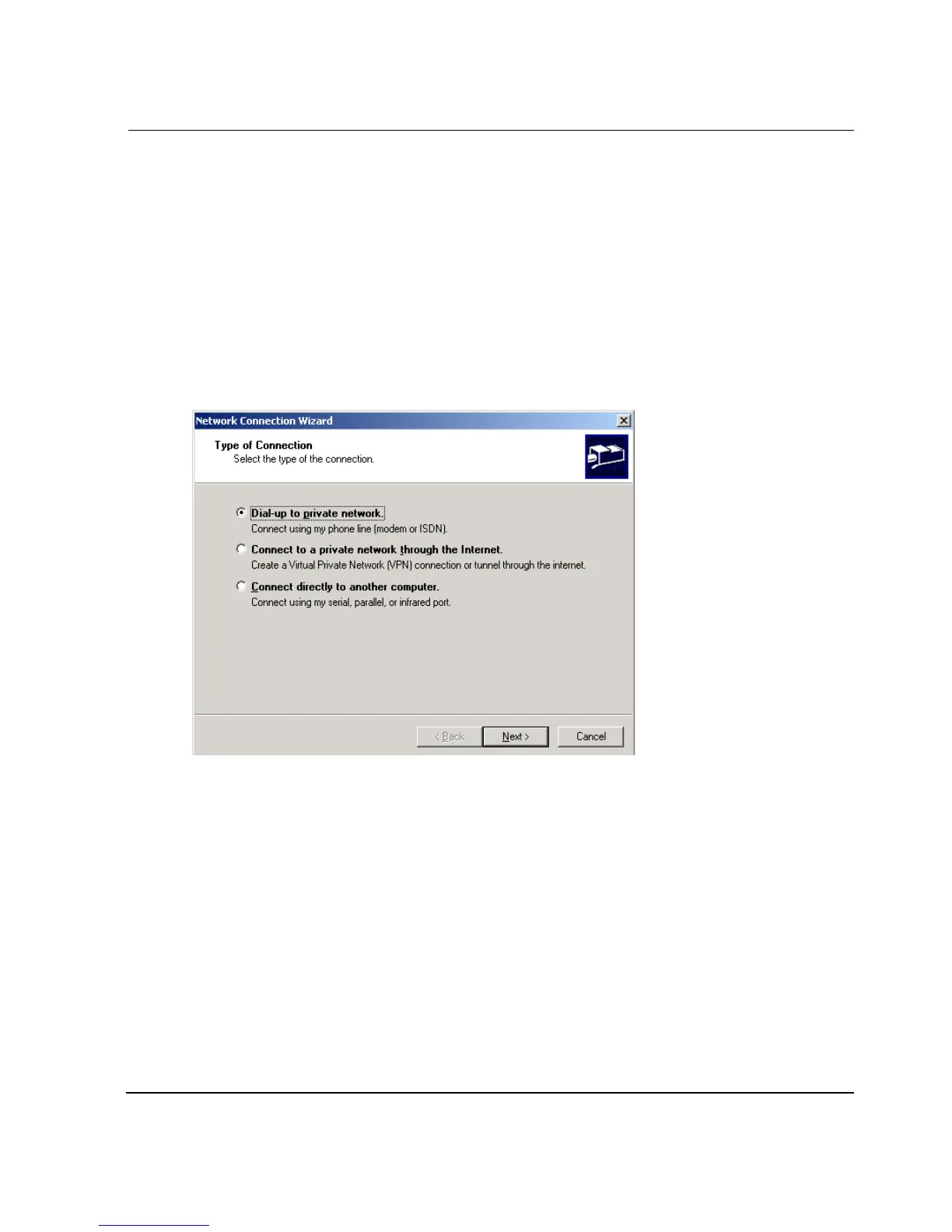

Figure 7–13: Type of Connection window
3. Select the Dial-up to private network option, and then click Next. The Phone
Number to Dial window displays, as shown in Figure 7–14.
