Sliding Shelf Installation for HAFM Server
10–3HAFM server installation guide
10–3

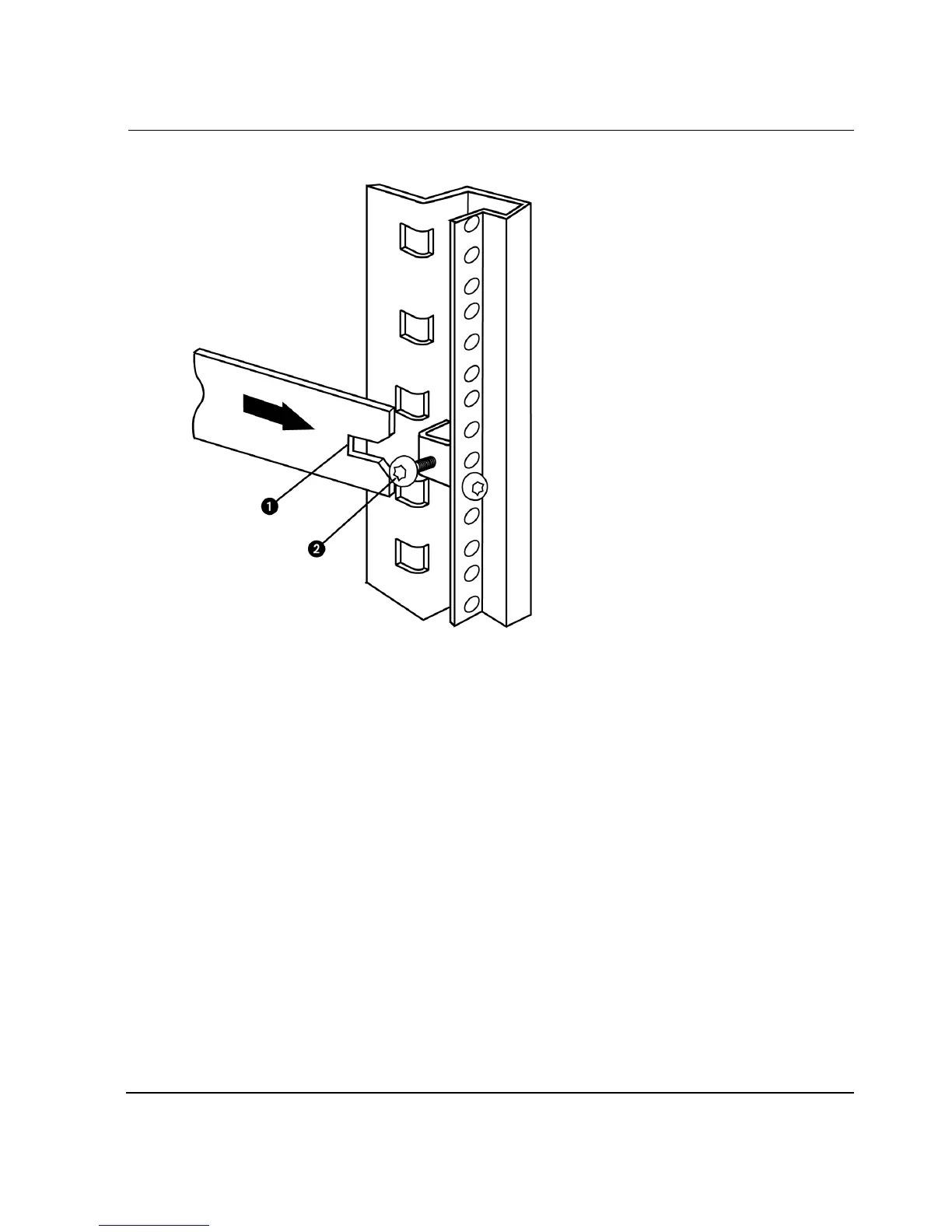

Figure 10–2: Positioning the sliding shelf bracket on a rail rear slot
8. Make sure that the sliding shelf and rails are horizontal (see Figure 10–3) at the
rack front.
9. Push each of the rail front tabs (1) into the corresponding holes on the rack
columns (2).
10. At the back of the rack, tighten the screws that attach the sliding shelf rails to the
mounting brackets (see Figure 10–2 (2)).
