Features
The following illustrations show the notebook’s main external features. For an exploded view of the
notebook, see page 4-2.

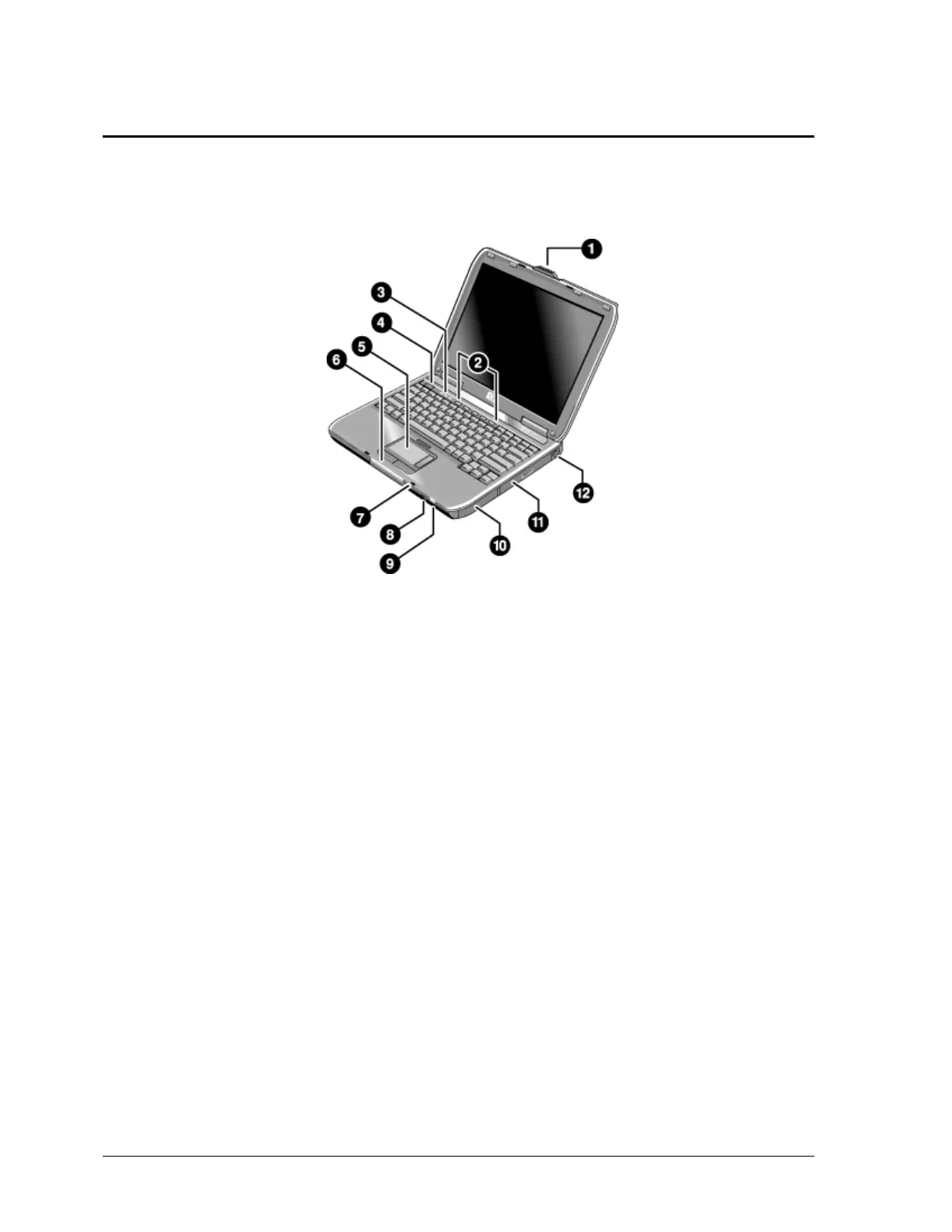

Figure 1-1. Front View
HP Pavilion ze4x00, HP nx9005 and nx9000,
Compaq Evo Notebook N1050v and N1010v,
and Compaq Presario 2100 and 1100
1. Notebook open/close latch
2. One-touch buttons
3. Keyboard status lights
4. Power button: turns the notebook on and off
5. Touch pad, scroll pad, Select buttons, and plus
on-off button
6. Main status lights (left to right): power mode,
hard disk activity, and battery
7. Microphone option (not available)
8. Infrared port (select models only)
9. Wireless on-off button and indicator light
(select models only)
10. Battery
11. CD-ROM, DVD, or other drive
12. PS/2 keyboard or PS/2 mouse port
(supports Y adapter)
