Service Manual Removal and Replacement 2-39
5. Remove the two M2.0×3.0mm flathead screws that secure the audio PCA shield to the
bottom case.
6. Remove the audio PCA shield.
7. Remove the M2.0×3.0mm flathead screw that secures the audio PCA to the bottom case.
8. Remove the audio PCA.

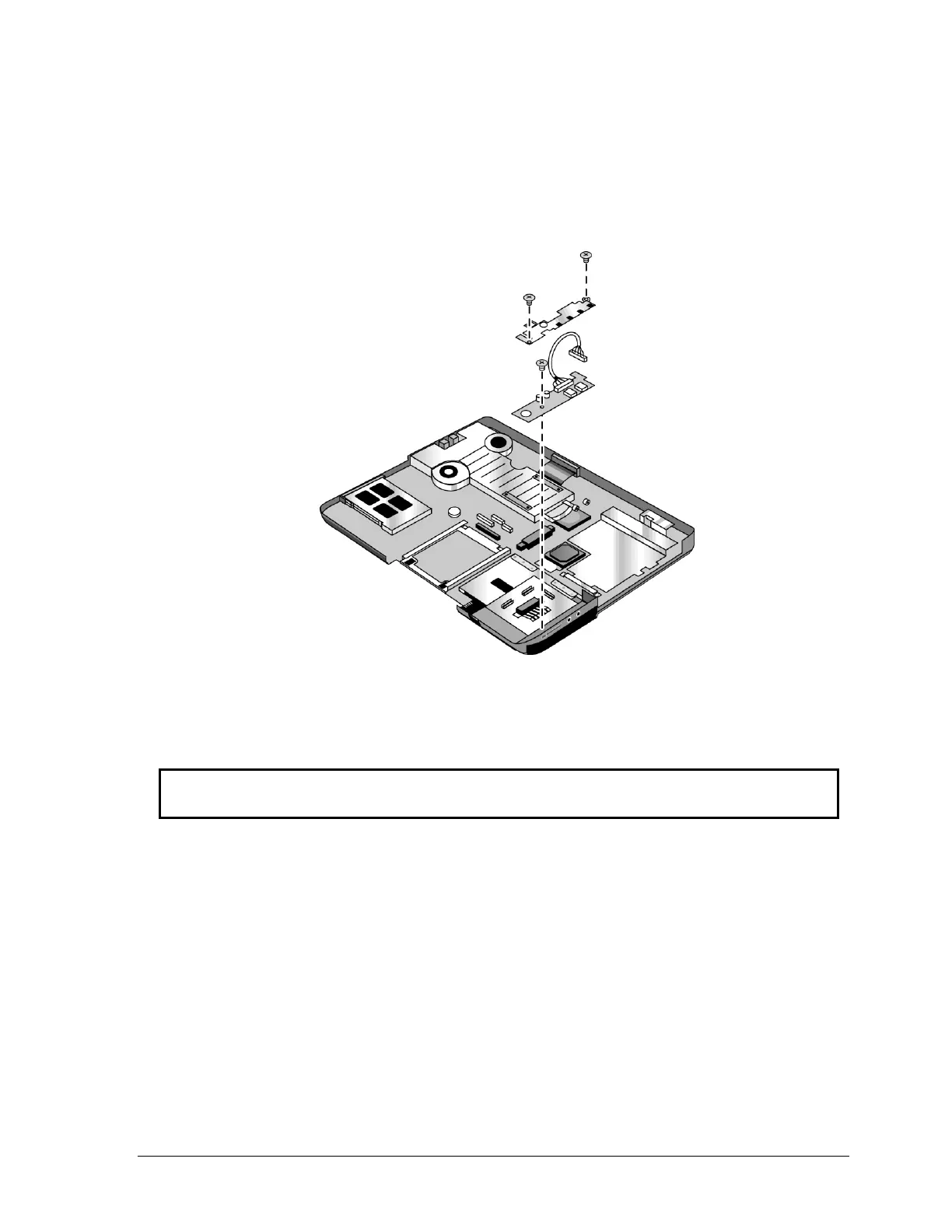

Figure 2-25. Removing the Audio PCA
Reassembly Note
CAUTION: Use care when handling the audio PCA cable. Damaging the cable can degrade
notebook performance.
Make sure you route the audio PCA cable into the clip on the bottom case.
