Service Manual Product Information 1-9

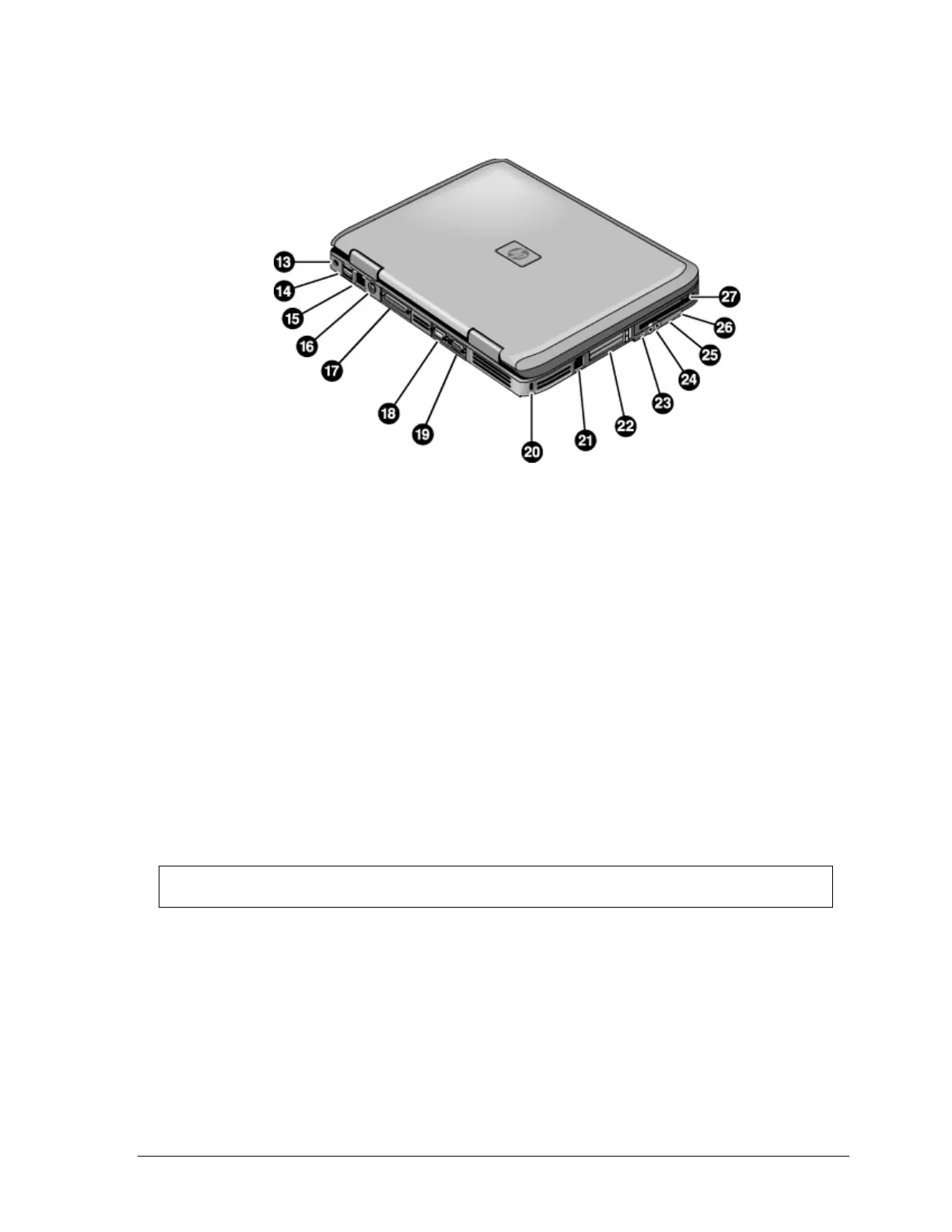

Figure 1-2. Back View
HP Pavilion ze4x00
HP nx9005 and nx9000
13. AC adapter jack
14. Two universal Serial Bus (USB) ports
15. LAN port (select models only)
16. S-Video port (select models only)
17. Parallel port (LPT1): use this port for a parallel
printer or other parallel device
18. Serial port (COM1): use this port for a serial
mouse, modem, printer, or other serial device
19. External monitor port
20. Kensington lock slot (security connector)
21. Modem port (select models only)
22. PCMCIA card and CardBus slot and button
23. IEEE 1394 port (select models only)
24. Audio jacks (left to right): external microphone
and audio out (headphones)
25. Volume controls (select models only)
26. Audio mute button and audio mute light
(select models only)
27. Floppy drive (select models only)
NOTE: Compaq Evo Notebook N1050v, N1010v, and Compaq Presario 2100 and 1100 very similar
except for logo.
