2-22 Removal and Replacement Service Manual
NOTE: This section applies only to HP Pavilion ze5x00, HP nx9010 and HP nx9008, and
Compaq Presario 2500 models.
Required Equipment
1 Phillips screwdriver
Removal Procedure
1. Unplug the AC adapter, if present, and then remove the battery.
2. Remove these additional assemblies:
•
Keyboard cover (page 2-13)
• Keyboard (page 2-16)
3. Remove the two M2.5×6.0mm screws that secure the CD/DVD drive to the top case and motherboard.
4. Place your index finger in the top case opening and push out on the CD/DVD drive to release it from
the motherboard.
5. Remove the CD/DVD drive.

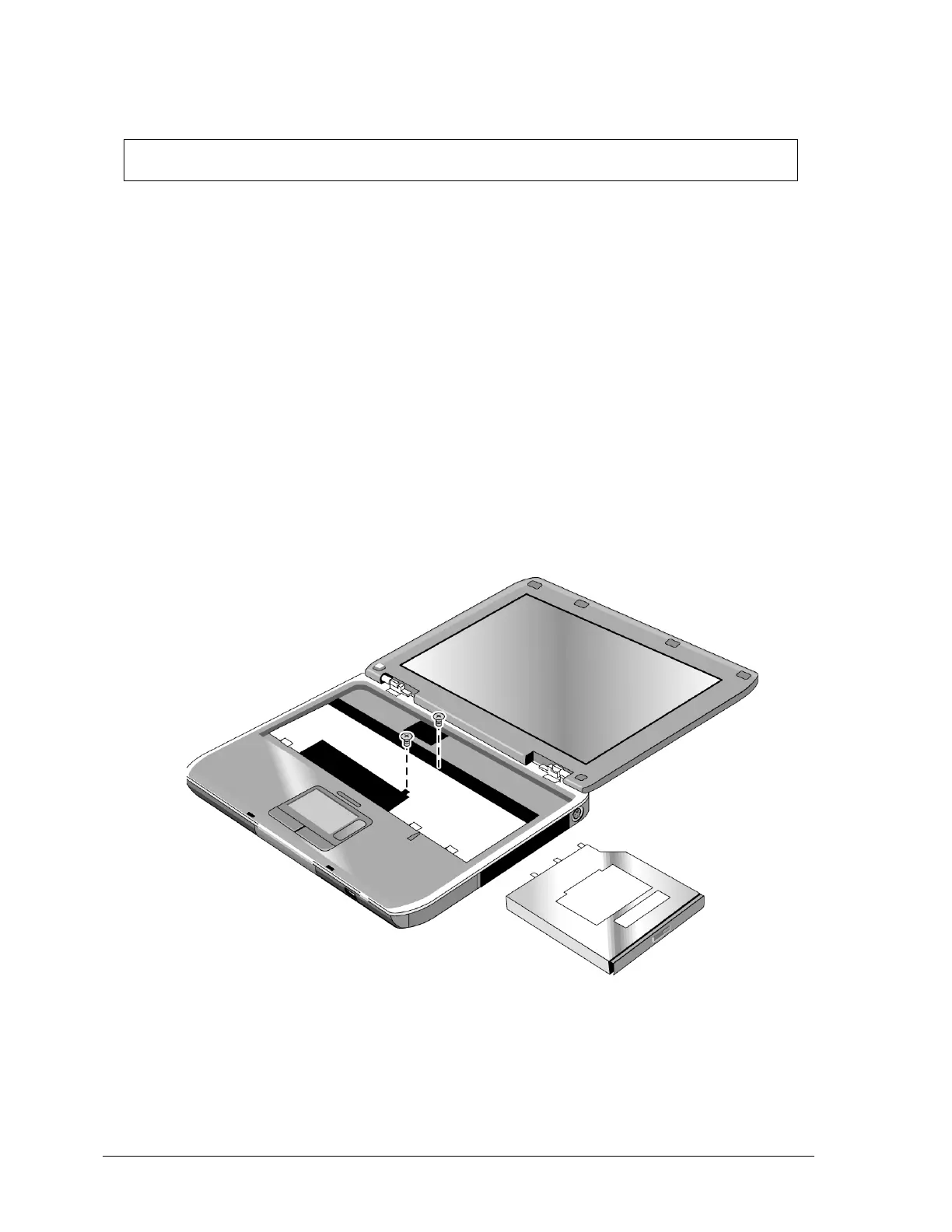

Figure 2-16. Removing the CD/DVD Drive
HP Pavilion ze5x00,
HP nx9010 and HP nx9008, and
Compaq Presario 2500 Models
