Service Manual Removal and Replacement 2-53
CAUTION: Wireless Models
Be careful when removing and attaching antenna cables. Damage to cables or connectors can degrade
performance.
3. Wireless models only: Remove the Mini PCI door, and then unplug the 2 antenna cables from the Mini
PCI card. Do not remove the Mini PCI card at this time.
4. Remove the two M2.0×4.0mm screws that secure the PCMCIA assembly to the bottom case.
5. Remove the 4 screws that secure the hard disk drive guide to the bottom case.
NOTE: The 4 screws that secure the hard disk drive guide are 2 different sizes. The screw in the upper
left corner is a M2.5×6.0mm screw. The remaining 3 screws are M2.0×4.0mm screws. Make sure these
screws are installed in the correct locations when reinstalling the hard disk drive guide.
6. Remove the hard disk drive guide.

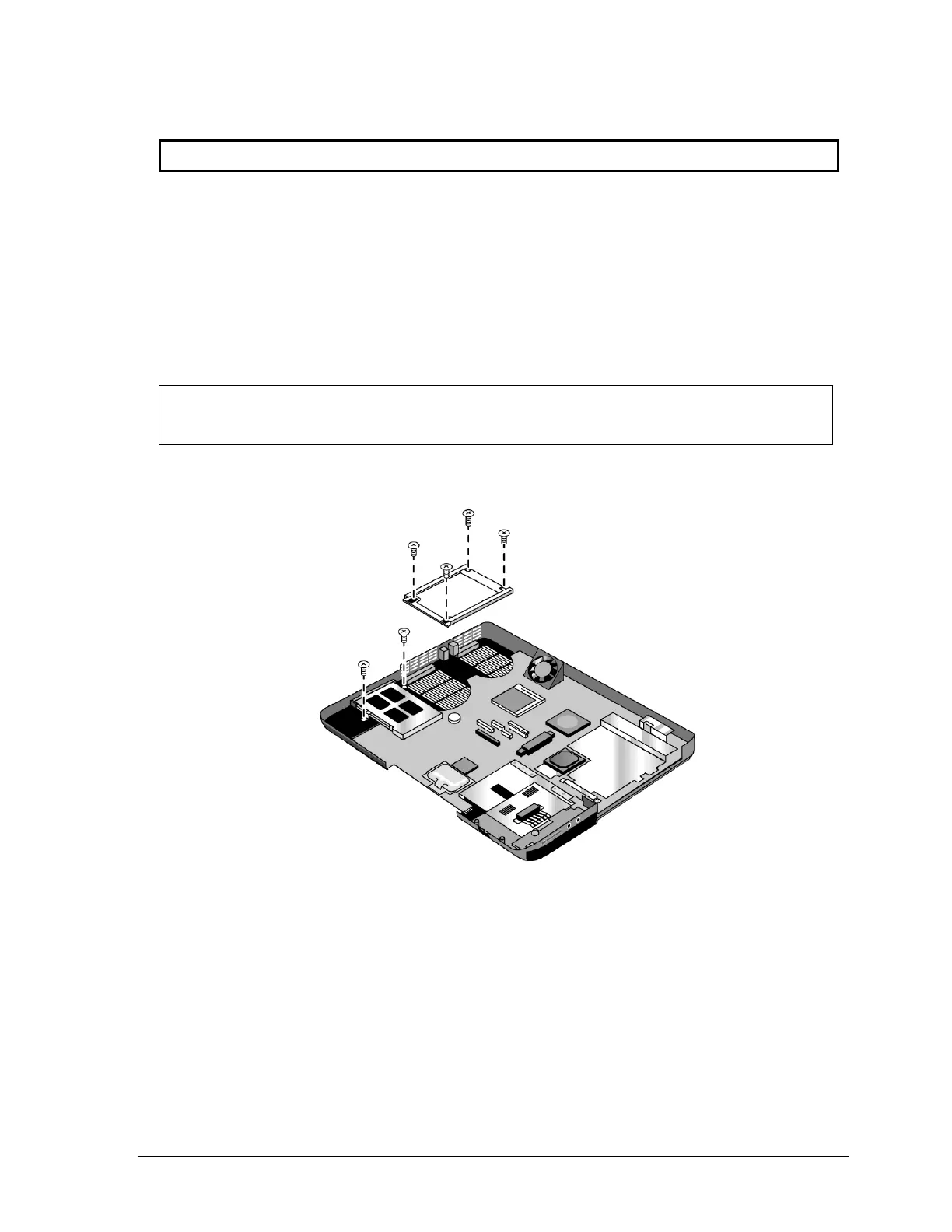

Figure 2-32. Removing the Hard Disk Drive Guide
To Next Page
