Service Manual Removal and Replacement 2-33
3. Remove the two M2.5×4.0mm screws (right side) that secure the hard disk drive guide to the
motherboard. (Note that the screws (left side) are missing. These screws were removed during the
top case removal procedure.)
4. Disconnect the motherboard cable.
5. Remove the two M2.5×4.0mm screws that secure the floppy drive to the motherboard.
6. Remove the floppy drive.

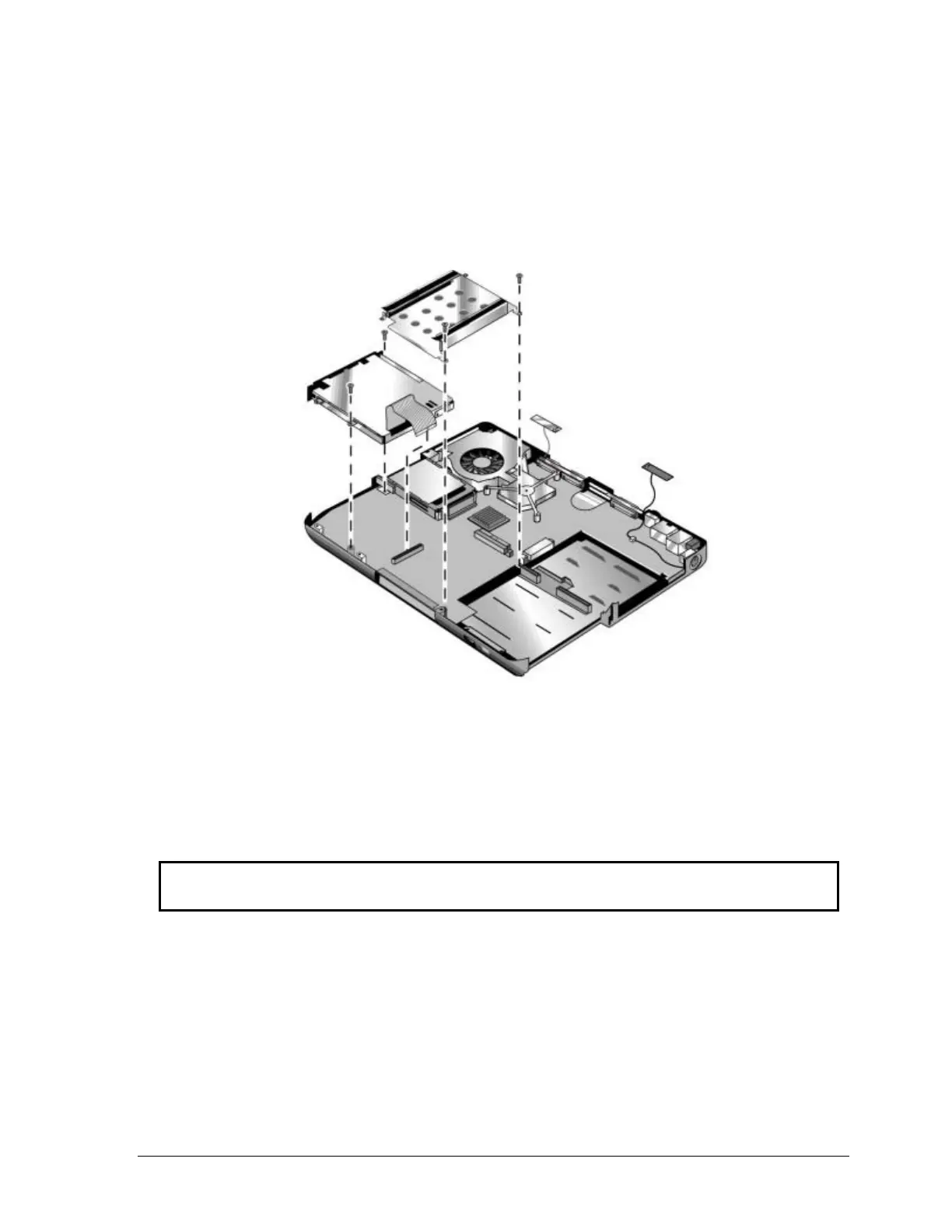

Figure 2-22. Removing the Floppy Drive
HP Pavilion ze4x00, HP nx9005 and nx9000,
Compaq Evo Notebook N1050v and N1010v, and
Compaq Presario 2100 and 1100 Models
Reassembly Notes
CAUTION: Do not excessively bend or fold the floppy drive cable. Excessive flexing can
damage the floppy drive cable connections.
• Connect the floppy drive cable to the motherboard prior to replacing the floppy drive and hard disk
drive guide.
• When replacing the hard disk drive guide, do not secure the left side to the motherboard. The left side
of the guide gets secured during the top case replacement procedure.
