Service Manual Product Information 1-11

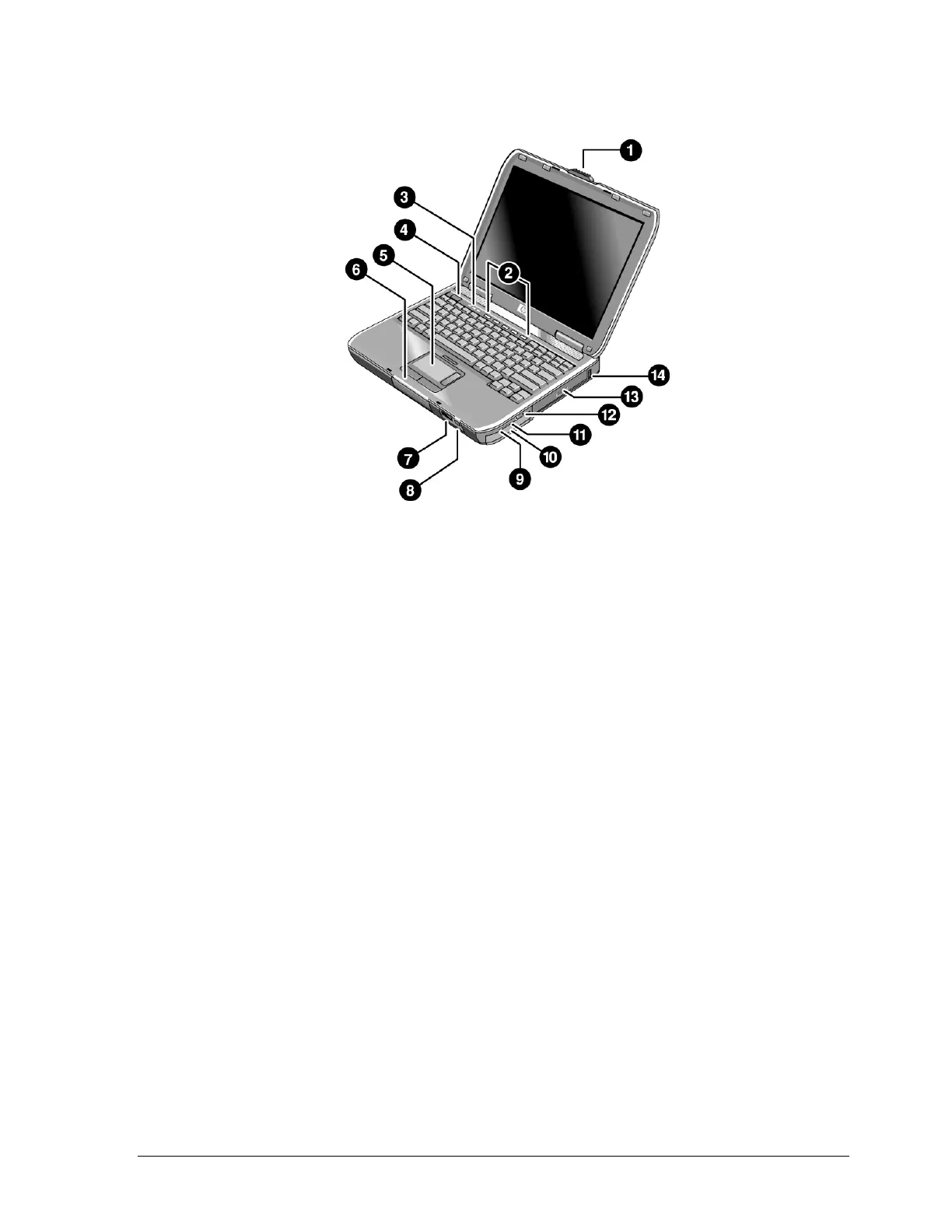

Figure 1-4. Front View
HP Pavilion ze5x00,
HP nx9010 and HP nx9008, and
Compaq Presario 2500
1. Notebook open/close latch
2. One-touch buttons
3. Keyboard status lights
4. Power button: turns the notebook on and off
5. Touch pad, scroll pad, Select buttons, and plus
on-off button
6. Main status lights (left to right): power mode,
hard disk activity, and battery
7. Infrared port (select models only)
8. Wireless on-off button and indicator light
(select models only)
9. Audio mute button and audio mute light
(select models only)
10. Battery
11. Volume controls (select models only)
12. Audio jacks (left to right): external microphone
and audio out (headphones)
13. CD-ROM, DVD, or other drive
14. Universal Serial Bus (USB) port
