2-10
Removal and Replacement
Service Manual
4.
Remove the four M3.0×4.0m
m screws from
the hard disk drive and hard disk drive t
ray, and
then lift the drive o
ut of the tray.
5.
Remove the connector bar from
the hard disk drive.
NOTE:
Connector bar not used on HP Pavilion ze5x00 series

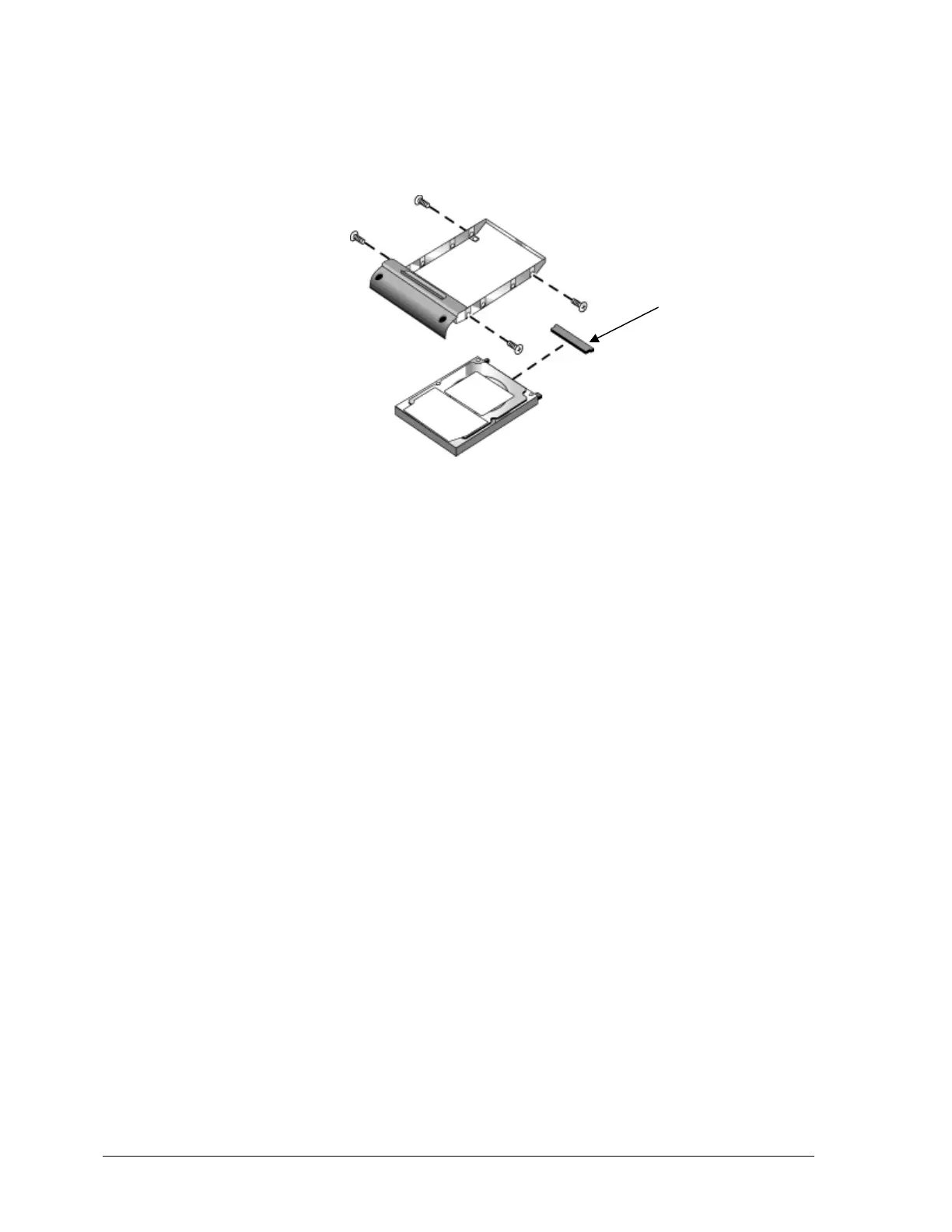

Figure 2-8. Removing the Hard Disk Driv
e Tray
See note below
42
44
Table of Contents
Default Chapter
4
Table of Contents
4
Introduction
7
Product Information
8
Table 1-1. Product Comparisons
8
Features
15
Figure 1-1. Front View
15
Figure 1-2. Back View
16
Figure 1-3. Bottom View
17
Figure 1-4. Front View
18
Figure 1-5. Back View
19
Figure 1-6. Bottom View
20
Operation
21
Table 1-2. Activating Power Modes
21
Table 1-3. Main Status Lights (Front of Notebook)
22
Table 1-4. Keyboard Status Lights
22
Table 1-5. Fn Hot Keys
23
Figure 1-7. Resetting the Notebook
24
Specifications
25
Table 1-6. Specifications
25
Table 1-7. Accessories
29
Internal Design
31
Figure 1-8. Replaceable Module Diagram
31
Table 1-8. Functional Structure Description
32
Removal and Replacement
34
Table 2-1. Removal Cross-Reference
34
Table 2-2. Required Equipment
35
Table 2-3. Recommended Screw Torque Values
35
Disassembly Flowchart
36
Figure 2-1. Disassembly Flow
36
Figure 2-2. Removing the Battery
37
Removing the Battery
37
Figure 2-3. Removing an SDRAM Module
38
Removing an SDRAM Module
38
Figure 2-4. Removing an SDRAM Module
39
Figure 2-5. Removing the Mini PCI Card
40
Removing the Wireless LAN Mini PCI Card
40
Figure 2-6. Removing the Mini PCI Card
41
Figure 2-7. Removing the Hard Disk Drive
42
Removing the Hard Disk Drive
42
Figure 2-8. Removing the Hard Disk Drive Tray
43
Recovering the Factory Software
44
Replacing Small Parts
45
Table 2-4. Replacing Small Parts
45
Removing the Keyboard Cover
46
Figure 2-10. Disconnecting the Speaker Cable
47
Figure 2-9. Removing the Keyboard Cover
47
Figure 2-11. Removing the Speaker Assembly
48
Removing the Speaker Assembly
48
Removing the Keyboard
49
Figure 2-12. Removing the Keyboard
50
Figure 2-13. Removing the Switchboard PCA
51
Figure 2-14. Removing the Switchboard PCA
52
Removing the Switchboard PCA
52
Removing the CD/DVD Drive
53
Figure 2-15. Removing the CD/DVD Drive
54
Figure 2-16. Removing the CD/DVD Drive
55
Removing the Display Assembly
56
Figure 2-17. Removing the Display Assembly
57
Removing the Top Case
59
Figure 2-18. Removing the Top Case
60
Figure 2-19. Removing the Top Case Screws
62
Figure 2-20. Removing the Top Case Screws
63
Figure 2-21. Removing the Top Case
64
Removing the Floppy Drive
65
Figure 2-22. Removing the Floppy Drive
66
Figure 2-23. Removing the Floppy Drive
68
Removing the Infrared (I/R) PCA
69
Figure 2-24. Removing the I/R PCA
70
Removing the Audio PCA
71
Figure 2-25. Removing the Audio PCA
72
Removing the Heat Sink (with Fan)
73
Figure 2-26. Removing the Heat Sink (with Fan)
74
Figure 2-27. Removing the Heat Sink (with Fan)
76
Removing the CPU Module
77
Figure 2-28. Removing the CPU Module
78
Figure 2-29. Removing the CPU Module
80
Removing the RJ11/1394 Connector Module
81
Figure 2-30. Removing the RJ11/1394 Connector Module
82
Removing the Motherboard
83
Figure 2-31. Removing the Motherboard
84
Figure 2-32. Removing the Hard Disk Drive Guide
86
Figure 2-33. Disconnecting the Motherboard Cables
87
Figure 2-34. Removing the Motherboard
89
Figure 2-35. Example of Serial Number Label
92
Replacing Components on a Bottom Case
92
Figure 2-36. Replacing the Antennas
93
Figure 2-37. Removing a PCMCIA Door
93
Repairing the BIOS IC
94
Figure 2-38. Boot-Block Jumper
95
Removing Other Components
96
Table 2-5. Removing Components
96
Troubleshooting and Diagnostics
98
Support by Authorized Service Providers
99
Table 3-1. ASP Support Options
99
Troubleshooting
100
Figure 3-1. Basic Troubleshooting Steps
100
Checking for Customer Abuse
101
Troubleshooting the Problem
102
Verifying the Repair
103
Table 3-2. Scope of Diagnostic Tools
104
Table 3-3. Troubleshooting Suggestions
105
Diagnostic Tools
115
Table 3-4. POST Terminal-Error Beep Codes
117
Table 3-5 POST Messages
121
Table 3-6 Sycard Pcctest Commands
123
Bios Setup Utility
124
Table 3-7 BIOS Setup Menus and Parameters
125
Replaceable Parts
127
Figure 4-1 Exploded View
128
Figure 4-2 Exploded View
129
Table 4-1 Replaceable Parts
130
Table 4-2 Accessory Replaceable Parts
137
Table 4-3 Part Number Reference
138
Reference Information
149
Password Removal Policy
150
Hewlett-Packard Display Quality Statement
151
Table 5-1 LCD Guidelines
152
Service Notes and Obsolete Parts
153
