Product Information
Service Manual

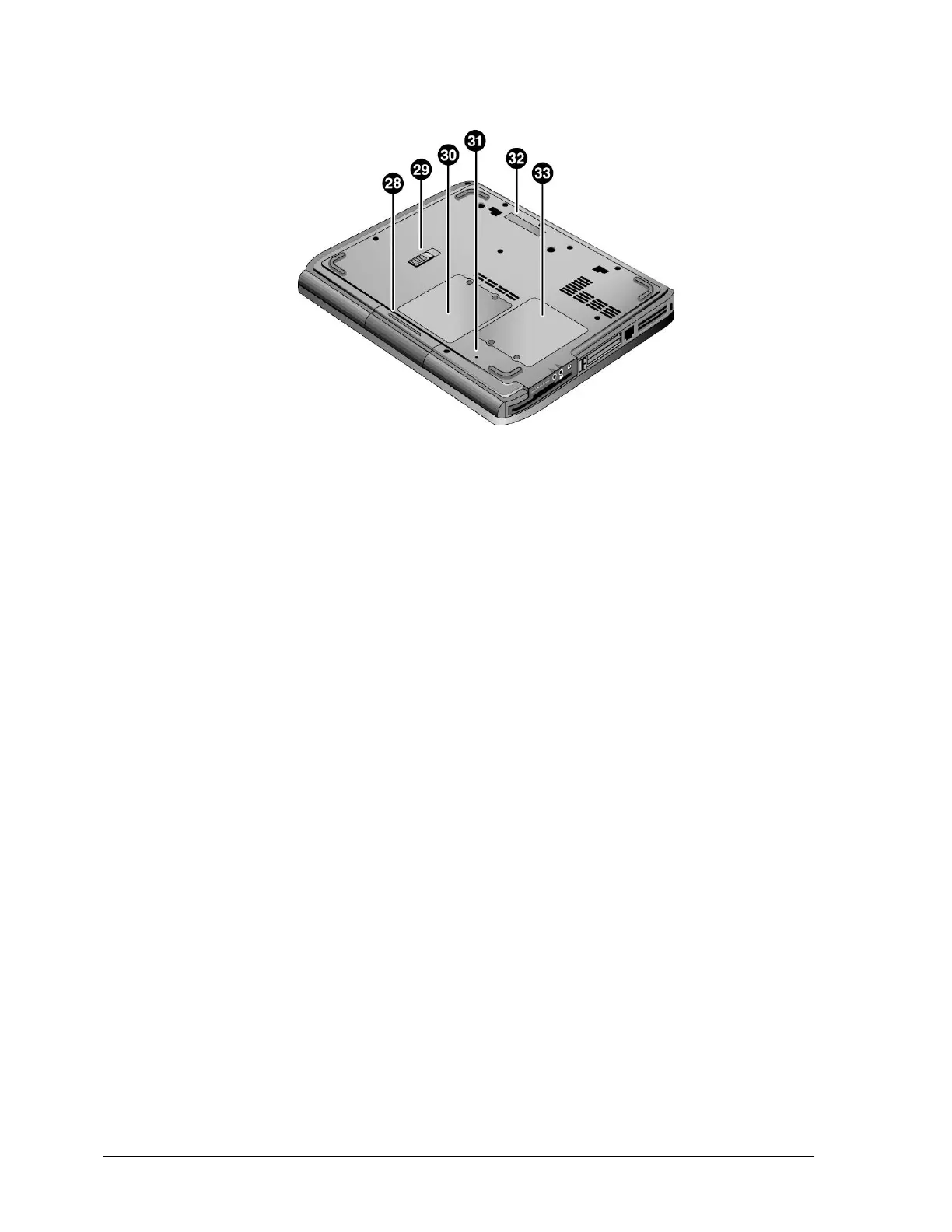

Figure 1-3. Bottom View
HP Pavilion ze4x00, HP nx9005 and nx9000,
Compaq Evo Notebook N1050v and N1010v,
and Compaq Presario 2100 and 1100
28.
Hard disk drive
29. Battery
latch
30. SDRAM
door
31. Reset
button
32.
Port replicator connect (select models only)
33.
Mini PCI door (no user parts inside)
16
18
Table of Contents
Default Chapter
4
Table of Contents
4
Introduction
7
Product Information
8
Table 1-1. Product Comparisons
8
Features
15
Figure 1-1. Front View
15
Figure 1-2. Back View
16
Figure 1-3. Bottom View
17
Figure 1-4. Front View
18
Figure 1-5. Back View
19
Figure 1-6. Bottom View
20
Operation
21
Table 1-2. Activating Power Modes
21
Table 1-3. Main Status Lights (Front of Notebook)
22
Table 1-4. Keyboard Status Lights
22
Table 1-5. Fn Hot Keys
23
Figure 1-7. Resetting the Notebook
24
Specifications
25
Table 1-6. Specifications
25
Table 1-7. Accessories
29
Internal Design
31
Figure 1-8. Replaceable Module Diagram
31
Table 1-8. Functional Structure Description
32
Removal and Replacement
34
Table 2-1. Removal Cross-Reference
34
Table 2-2. Required Equipment
35
Table 2-3. Recommended Screw Torque Values
35
Disassembly Flowchart
36
Figure 2-1. Disassembly Flow
36
Figure 2-2. Removing the Battery
37
Removing the Battery
37
Figure 2-3. Removing an SDRAM Module
38
Removing an SDRAM Module
38
Figure 2-4. Removing an SDRAM Module
39
Figure 2-5. Removing the Mini PCI Card
40
Removing the Wireless LAN Mini PCI Card
40
Figure 2-6. Removing the Mini PCI Card
41
Figure 2-7. Removing the Hard Disk Drive
42
Removing the Hard Disk Drive
42
Figure 2-8. Removing the Hard Disk Drive Tray
43
Recovering the Factory Software
44
Replacing Small Parts
45
Table 2-4. Replacing Small Parts
45
Removing the Keyboard Cover
46
Figure 2-10. Disconnecting the Speaker Cable
47
Figure 2-9. Removing the Keyboard Cover
47
Figure 2-11. Removing the Speaker Assembly
48
Removing the Speaker Assembly
48
Removing the Keyboard
49
Figure 2-12. Removing the Keyboard
50
Figure 2-13. Removing the Switchboard PCA
51
Figure 2-14. Removing the Switchboard PCA
52
Removing the Switchboard PCA
52
Removing the CD/DVD Drive
53
Figure 2-15. Removing the CD/DVD Drive
54
Figure 2-16. Removing the CD/DVD Drive
55
Removing the Display Assembly
56
Figure 2-17. Removing the Display Assembly
57
Removing the Top Case
59
Figure 2-18. Removing the Top Case
60
Figure 2-19. Removing the Top Case Screws
62
Figure 2-20. Removing the Top Case Screws
63
Figure 2-21. Removing the Top Case
64
Removing the Floppy Drive
65
Figure 2-22. Removing the Floppy Drive
66
Figure 2-23. Removing the Floppy Drive
68
Removing the Infrared (I/R) PCA
69
Figure 2-24. Removing the I/R PCA
70
Removing the Audio PCA
71
Figure 2-25. Removing the Audio PCA
72
Removing the Heat Sink (with Fan)
73
Figure 2-26. Removing the Heat Sink (with Fan)
74
Figure 2-27. Removing the Heat Sink (with Fan)
76
Removing the CPU Module
77
Figure 2-28. Removing the CPU Module
78
Figure 2-29. Removing the CPU Module
80
Removing the RJ11/1394 Connector Module
81
Figure 2-30. Removing the RJ11/1394 Connector Module
82
Removing the Motherboard
83
Figure 2-31. Removing the Motherboard
84
Figure 2-32. Removing the Hard Disk Drive Guide
86
Figure 2-33. Disconnecting the Motherboard Cables
87
Figure 2-34. Removing the Motherboard
89
Figure 2-35. Example of Serial Number Label
92
Replacing Components on a Bottom Case
92
Figure 2-36. Replacing the Antennas
93
Figure 2-37. Removing a PCMCIA Door
93
Repairing the BIOS IC
94
Figure 2-38. Boot-Block Jumper
95
Removing Other Components
96
Table 2-5. Removing Components
96
Troubleshooting and Diagnostics
98
Support by Authorized Service Providers
99
Table 3-1. ASP Support Options
99
Troubleshooting
100
Figure 3-1. Basic Troubleshooting Steps
100
Checking for Customer Abuse
101
Troubleshooting the Problem
102
Verifying the Repair
103
Table 3-2. Scope of Diagnostic Tools
104
Table 3-3. Troubleshooting Suggestions
105
Diagnostic Tools
115
Table 3-4. POST Terminal-Error Beep Codes
117
Table 3-5 POST Messages
121
Table 3-6 Sycard Pcctest Commands
123
Bios Setup Utility
124
Table 3-7 BIOS Setup Menus and Parameters
125
Replaceable Parts
127
Figure 4-1 Exploded View
128
Figure 4-2 Exploded View
129
Table 4-1 Replaceable Parts
130
Table 4-2 Accessory Replaceable Parts
137
Table 4-3 Part Number Reference
138
Reference Information
149
Password Removal Policy
150
Hewlett-Packard Display Quality Statement
151
Table 5-1 LCD Guidelines
152
Service Notes and Obsolete Parts
153
5
