3. Turn the notebook bottom side up with the front facing forward.
4. Remove the following M2.5×4.0mm screws:
•
One from the battery bay
• One from the hard disk drive bay
5. Remove the remaining 14 M2.5×6.0mm screws.
6. Turn the notebook top side up with the rear panel facing forward.
7. Remove the two M2.5×4.0mm screws from the rear panel.
8. Remove the two M2.5×6.0mm screws from the top case.
9. Lift the top case off of the notebook and then disconnect the touch pad cable from the motherboard.

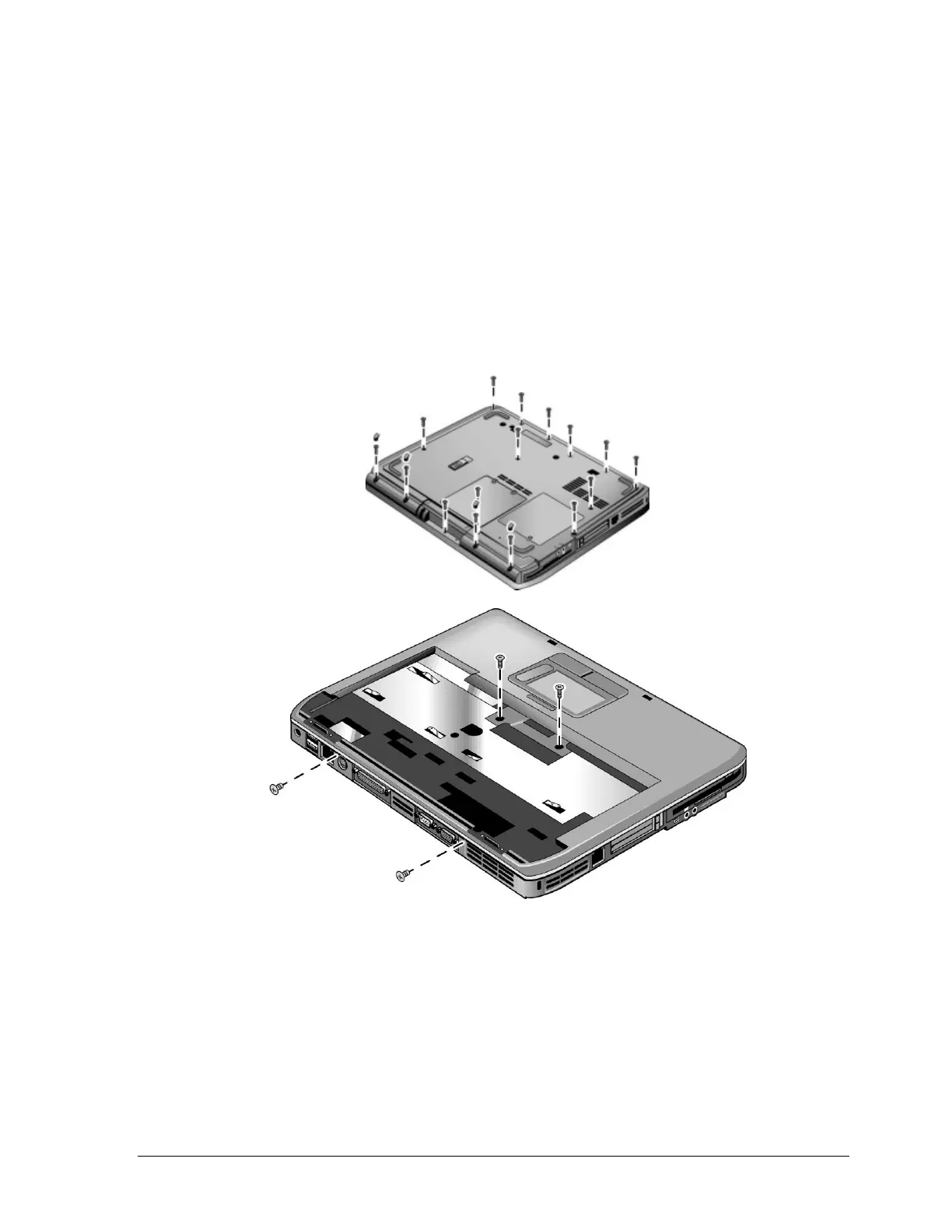

Figure 2-18. Removing the Top Case
