Service Manual Removal and Replacement 2-19
Removing the Switchboard PCA
NOTE: This section applies only to HP Pavilion ze5x00, HP nx9010 and HP nx9008, and
Compaq Presario 2500 models.
Required Equipment
1 Phillips screwdriver
Removal Procedure
1. Unplug the AC adapter, if present, and then remove the battery.
2. Remove the keyboard cover (page 2-13).
3. Disconnect the 2-wire cable that connects the switchboard PCA to the display lid switch.
4. Remove the two M2.5×4.0mm screws that secure the switchboard PCA to the top case.
5. Gently lift up on the rear right edge of the switchboard PCA to disconnect the PCA from the
motherboard.
6. Remove the switchboard PCA.

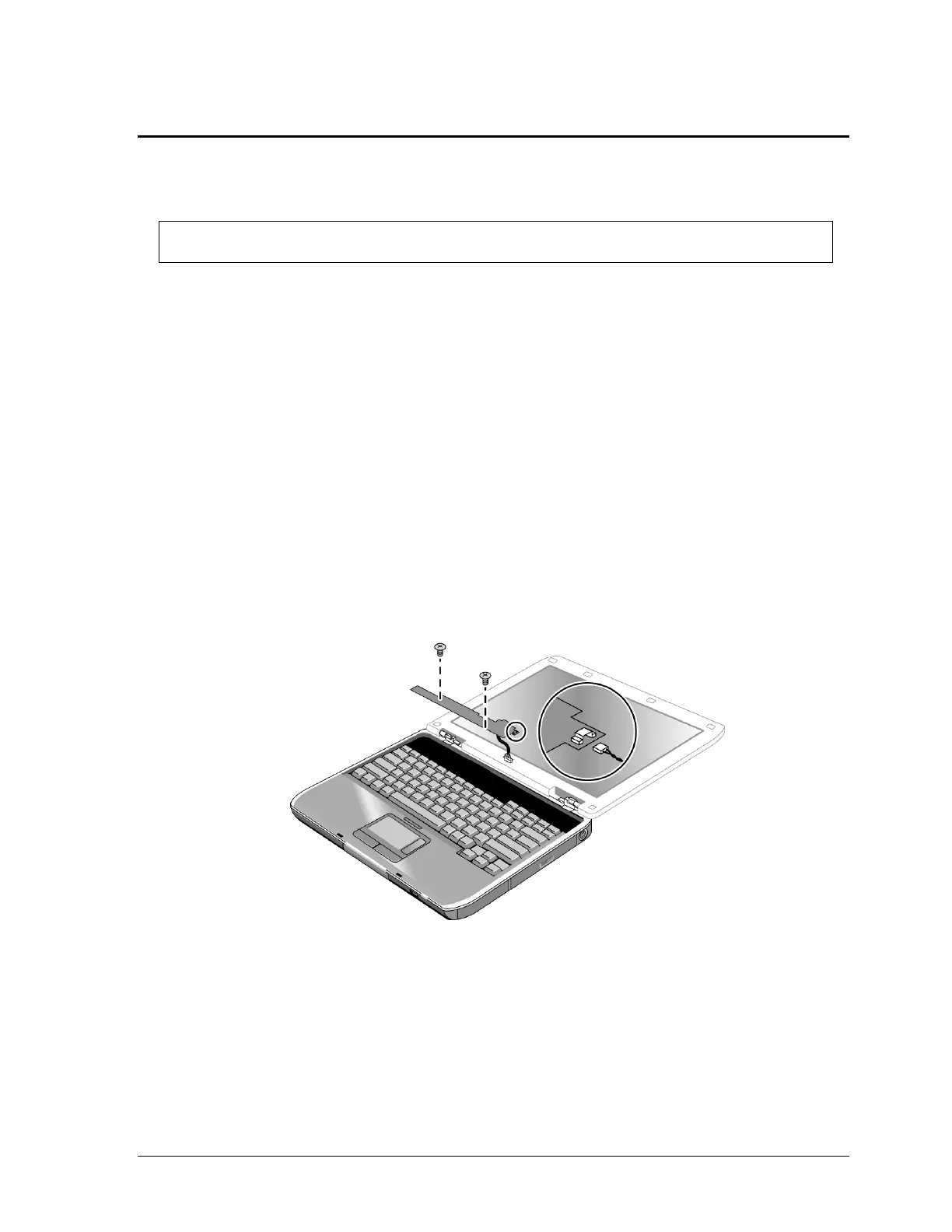

Figure 2-14. Removing the Switchboard PCA
HP Pavilion ze5x00,
HP nx9010 and HP nx9008, and
Compaq Presario 2500 Models
To Next Page
