HP ProLiant BL30p

Server Blade Component Identification
Local I/O Cable Connectors
Use Figure 1-3 and Table 1-4 to identify the local I/O cable connectors.

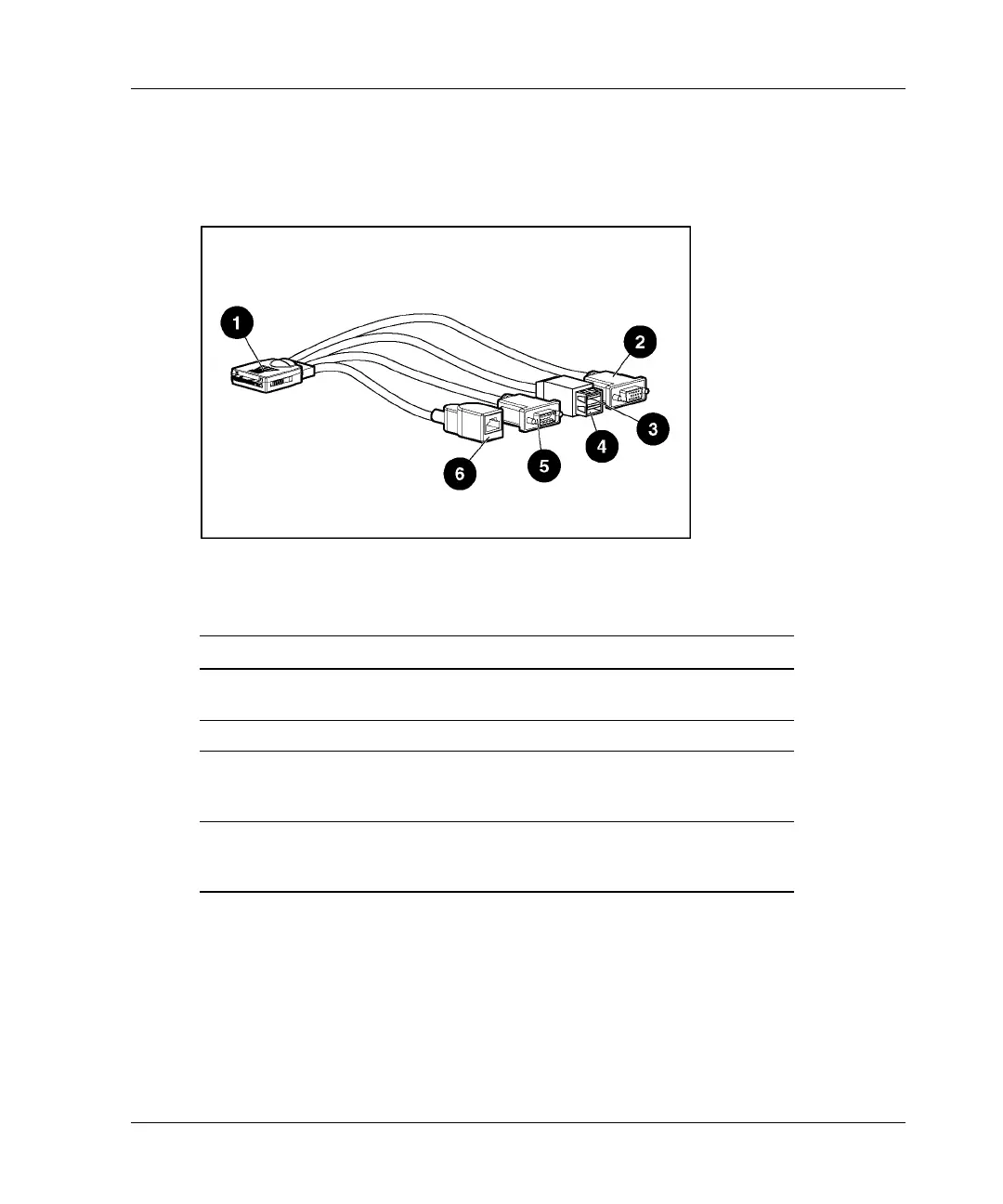

Figure 1-3: Local I/O cable connectors
Table 1-4: Local I/O Cable Connectors
Item Connector Name Connector Description
1 Server blade connector Attaches to the I/O port on the
front of the server blade.
2 Video connector Provides video capability.
3 USB connector 1 Provides USB connection
enabling direct connection to
the server blade.
4 USB connector 2 Provides USB connection
enabling direct connection to
the server blade.
continued
HP ProLiant BL30p Server Blade Setup and Installation Guide 1-7
