Hardware options installation 76
11. Connect each end of the three Mini-SAS X cables to the matching port on each drive box backplane.
Connect port 1 to port 1 and port 2 to port 2 for each cable set.
12. Install the storage controller into PCIe slot 1 or 3.
13. Install the Expander card into PCIe slot 2.

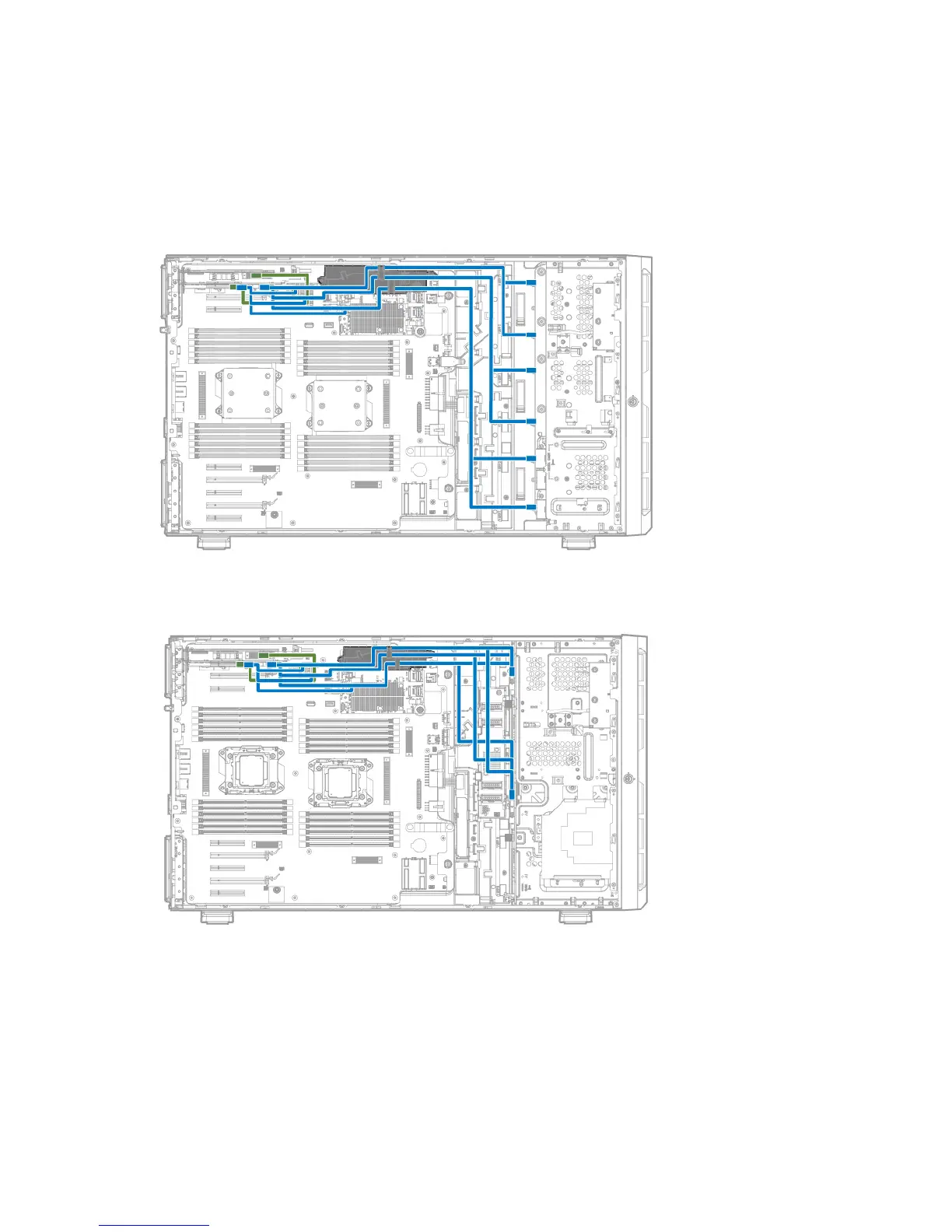

14. Route the cables and secure them under the cable clips.
o SFF configuration
o LFF configuration
15. Replace the existing drive numbering label on the outside of the chassis with the appropriate label
included. For more information, see Device numbering (on page 20).
16. Install the fan cage (on page 37).
17. Install the air baffle (on page 34).
18. Install the access panel (on page 32).
19. Do one of the following:
