Removal and Replacement Procedures 39
5. Connect the heatsink connector to the correct header on the system board.

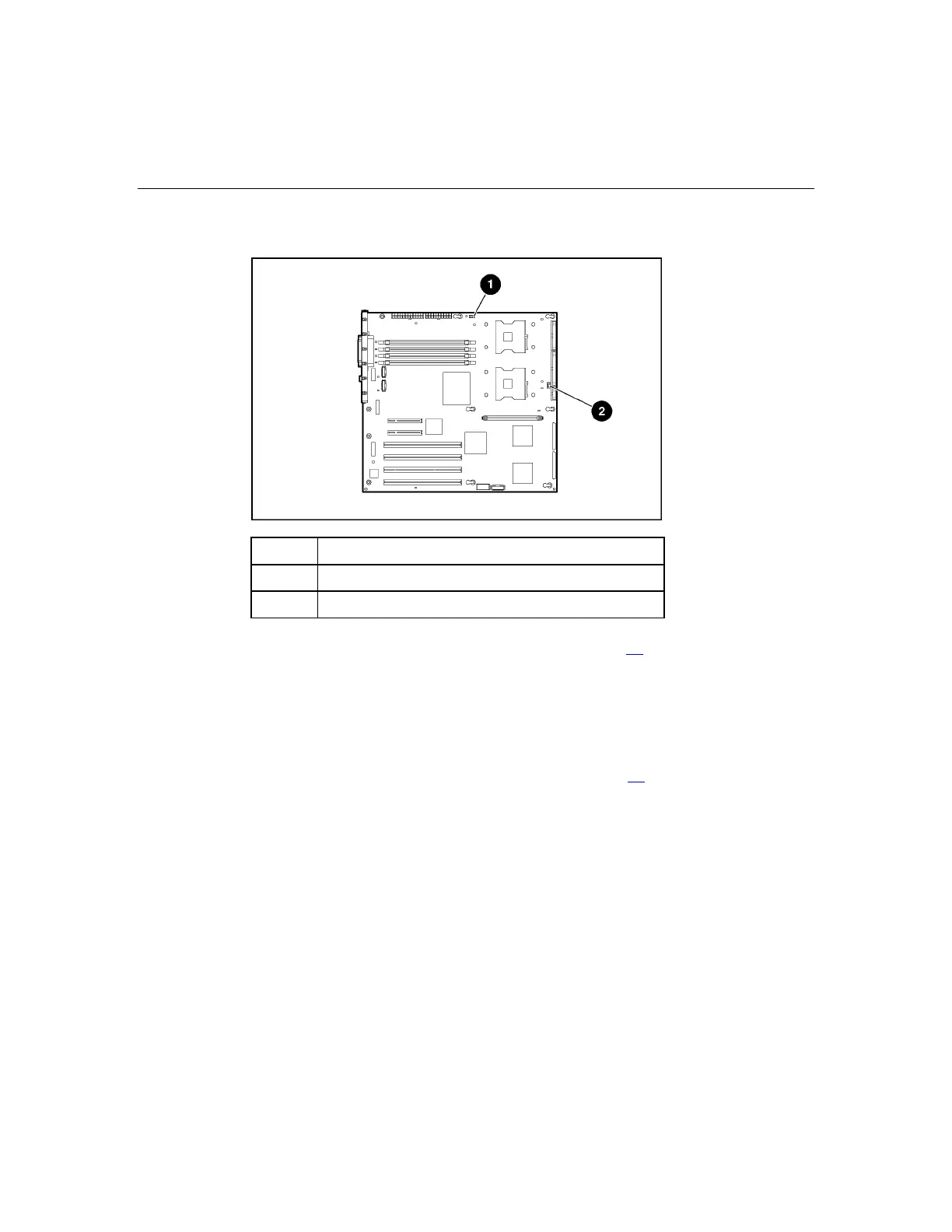

Item Description
1 CPU 1 heatsink header
2 CPU 2 heatsink header
6. Replace the access panel ("Access Panel" on page 17).
PPM
To remove the component:
1. Remove the access panel ("Access Panel" on page 17
).
2. Open the latches on the PPM slot.
3. Install the PPM for processor 2 (if installing a second processor).
