Server Component Identification 57
Item Description Status
3 External health LED
(power supply)
Green = Normal
Red = Power redundancy failure
4 NIC activity LED Green = Network link
Flashing = Network link and activity
Off = No link to network. If power is off, view the rear panel
RJ-45 LEDs for status.
5 Power LED On = Power
Amber = System off and power available
Off = No power
6 System power button
7 UID button

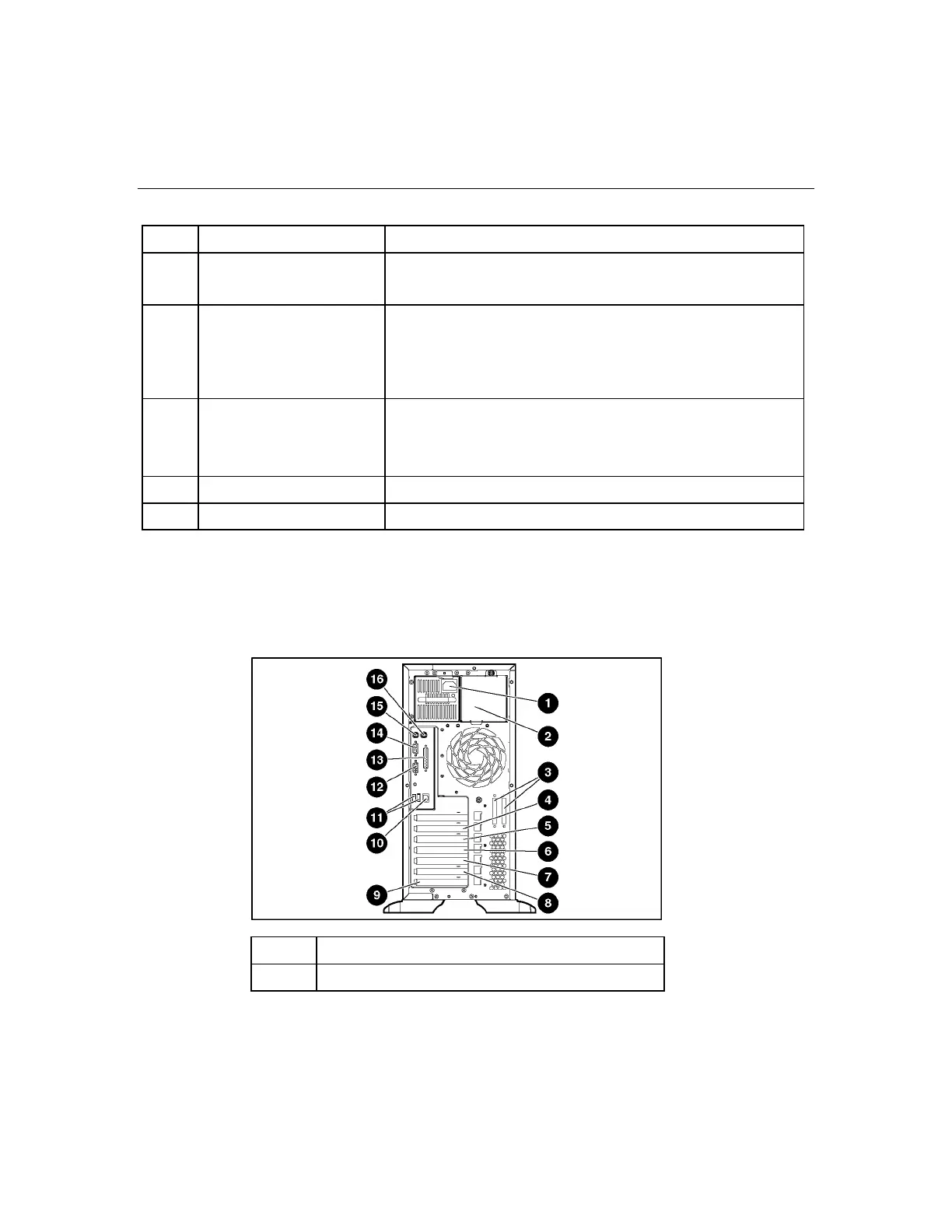

Rear Panel Components
NOTE: Hot-plug power supply model shown. For non-hot-plug models,
the power supply will look different.
Item Description
1 Power cord connector
