Server Component Identification
In This Section
Front Panel Components ..............................................................................................................55
Front Panel LEDs and Buttons .....................................................................................................56
Rear Panel Components................................................................................................................57
Rear Panel LEDs ..........................................................................................................................58
System Board Components ..........................................................................................................59
System LEDs and Internal Health LED Combinations ................................................................62
System Board LEDs .....................................................................................................................63
Hot-Plug SCSI IDs .......................................................................................................................65
Hot-Plug SCSI Hard Drive LEDs.................................................................................................66

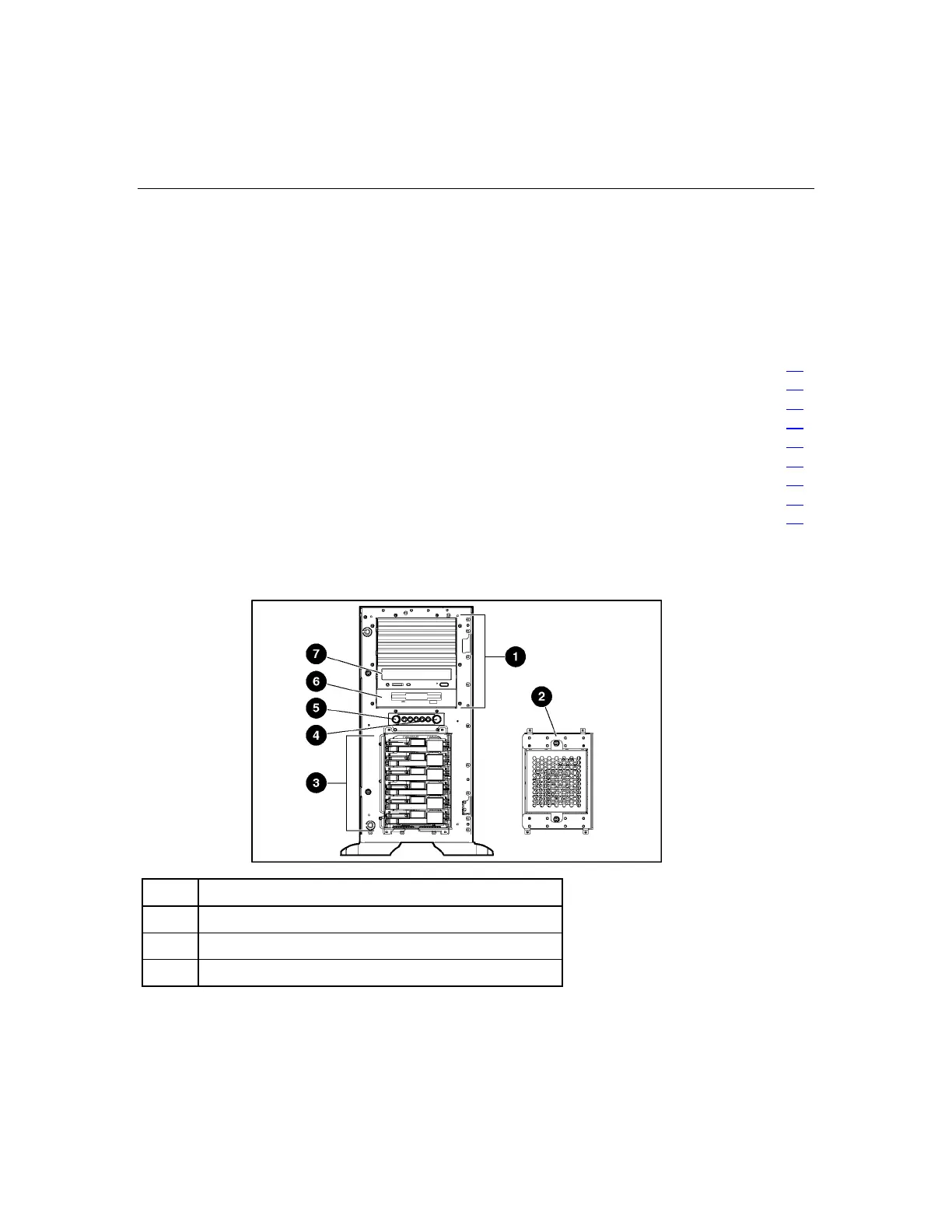

Front Panel Components
Item Description
1 Removable media bays (4)
2 Non-hot-plug SCSI hard drive bays (4)
3 Hot-plug SCSI hard drive bays (6)
