Hot-Plug SCSI IDs
The server supports single- or dual-channel SCSI hard drive configurations. The
single-channel configuration (simplex) supports up to six SCSI hard drives on
one channel. The dual-channel configuration (duplex) supports two SCSI hard
drives on one channel (SCSI IDs 4 and 5) and up to four SCSI hard drives on the
other channel (SCSI IDs 0 through 3) with the duplex option.

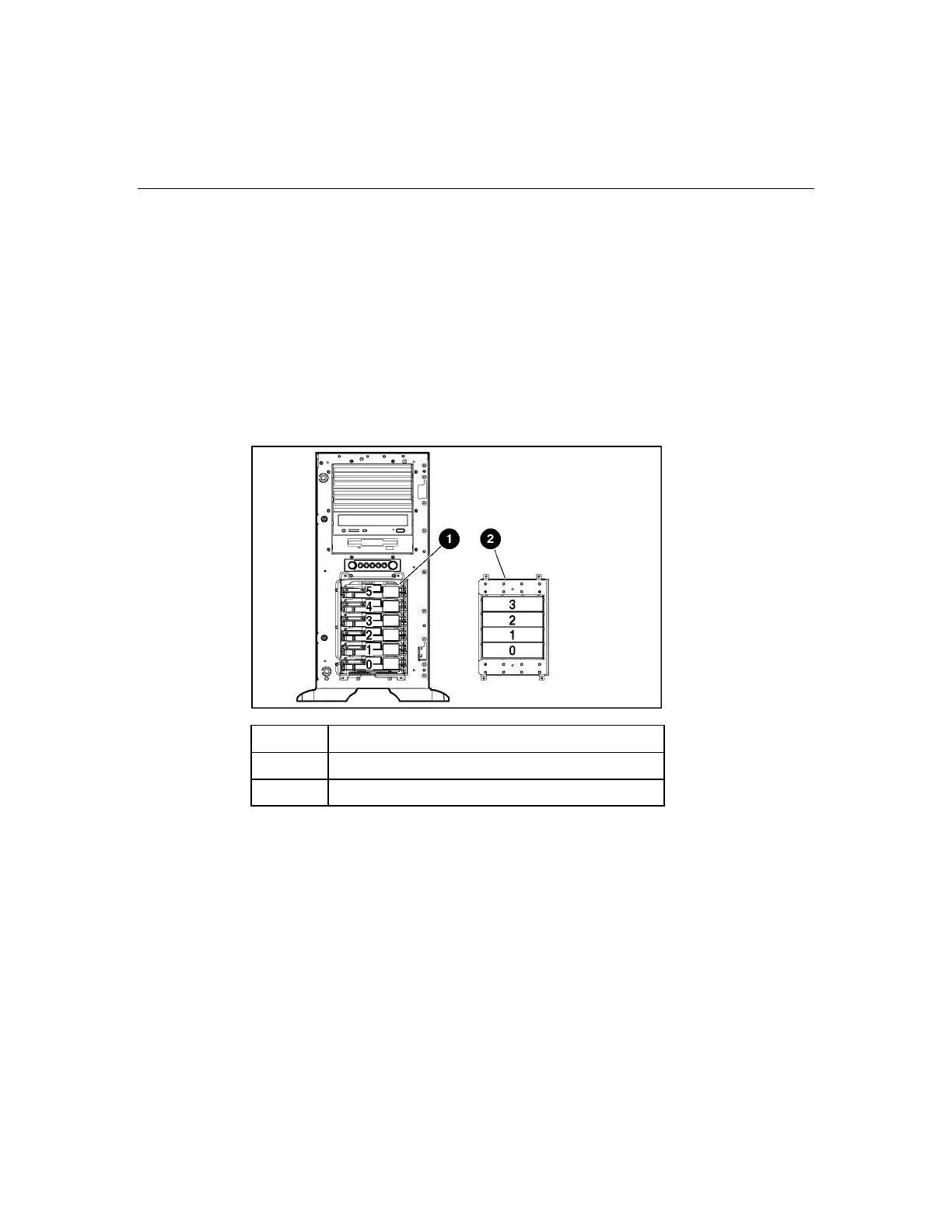

The SCSI IDs for both simplex and duplex configurations are illustrated. Always
populate hard drive bays starting with the lowest SCSI ID.
Item Description
1 Hot-plug SCSI hard drive cage
2 Non-hot-plug SCSI hard drive cage
