Server Component Identification 63
System LED and
Color
Internal Health
LED Color
Status
Overtemperature
(Amber)
Red •
•
The Health Driver has detected a cautionary
temperature level.
The server has detected a hardware critical
temperature level.
Fan (Amber) Red The minimum fan requirements are not being met. Fan
has failed.
Amber A fan has failed but still meets the minimum fan
requirements (with redundant system fan option only).

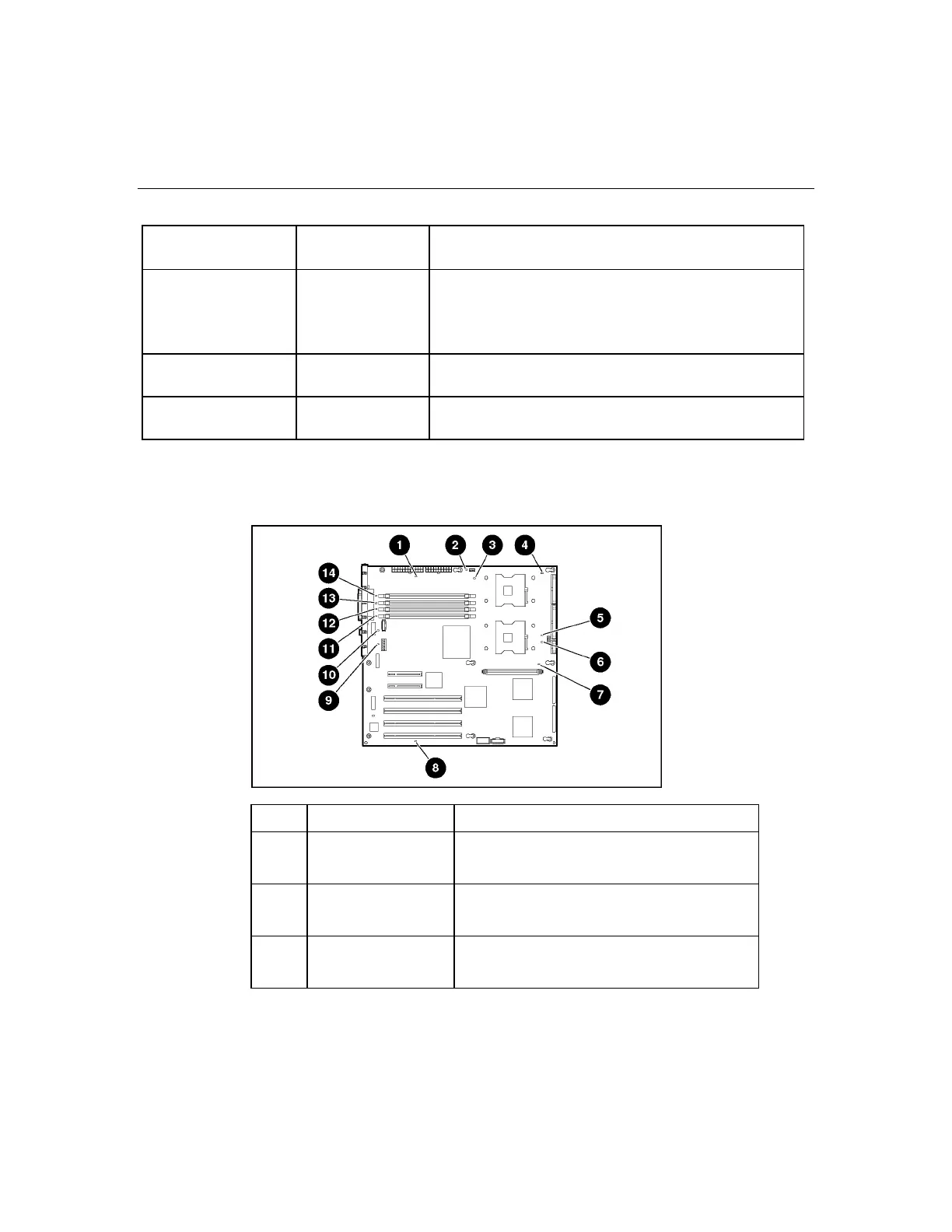

System Board LEDs
Item LED Description Status
1 AC power Off = No AC power or failed power supply
Green = Power supply is on and functioning
2 Processor 1 fan
status
Off = Processor fan is functioning
Amber = Fan is not installed or has failed
3 Processor 1 status Off = Processor 1 functioning
Amber = Processor 1 failed
