• Integrates a single motherboard design with 667 MHz PowerPC 440EPx Reduced Instruction Set
Computer (RISC) CPU and integrated peripherals which provide high performance.
• Ships FICON, FICON Cascading and FICON Control Unit Port (CUP) ready.
• Provides two hot-swappable, redundant integrated power supply and fan FRUs.
• Universal ports that self-configure as E_Ports, F_Ports, M_Ports, or FL_Ports. Ex_Ports are activated
on a per-port basis with the optional HP B-series 48-80 Port SAN Switch Integrated Routing LTU.
This license provides native Fibre Channel Routing (FCR) on a per-port basis, rather than limiting
routing ports to those on a dedicated routing blade or switch. Just like traditional FCR, Integrated
Routing uses EX_Ports to import and export devices between fabrics, enabling selective device
sharing while maintaining remote fabric isolation. See Table 6, page 29 for ordering information.
• Integrates a Universal Serial Bus (USB) port that provides storage for firmware updates, output of
the supportsave command and storage for configuration uploads and downloads.
Port side of the 8/40 SAN Switch
The port side of the 8/40 SAN Switch includes the system status LED, console port, Ethernet port and
LEDs, USB port, and FC ports with corresponding port status LEDs

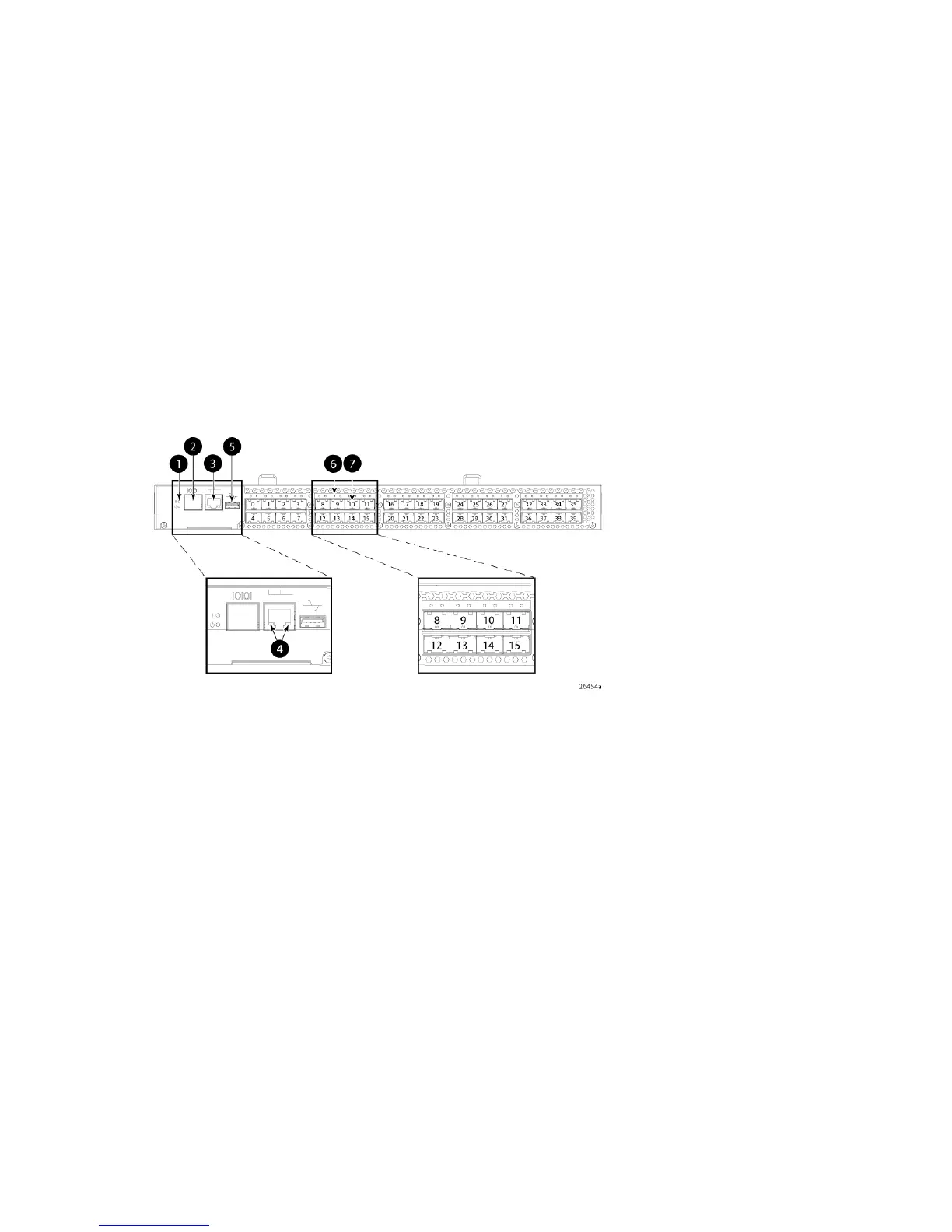

Figure 2 shows the port side of the 8/40 SAN Switch.
5. USB port1. System status (top) and power (bottom) LEDs
6. Fibre Channel port status LED2. System RS-232 console port (RJ-45)
7. Fibre Channel port3. System Ethernet port
4. Ethernet port LEDs (green/amber)
Figure 2 Port side view—8/40 SAN Switch
Nonport side of the 8/40 SAN Switch
The nonport side includes the two redundant power supply fan assemblies and the corresponding
status LEDs. Figure 3 shows the nonport side of the 8/40 SAN Switch.
8-Gb SAN Switch hardware reference manual 19
