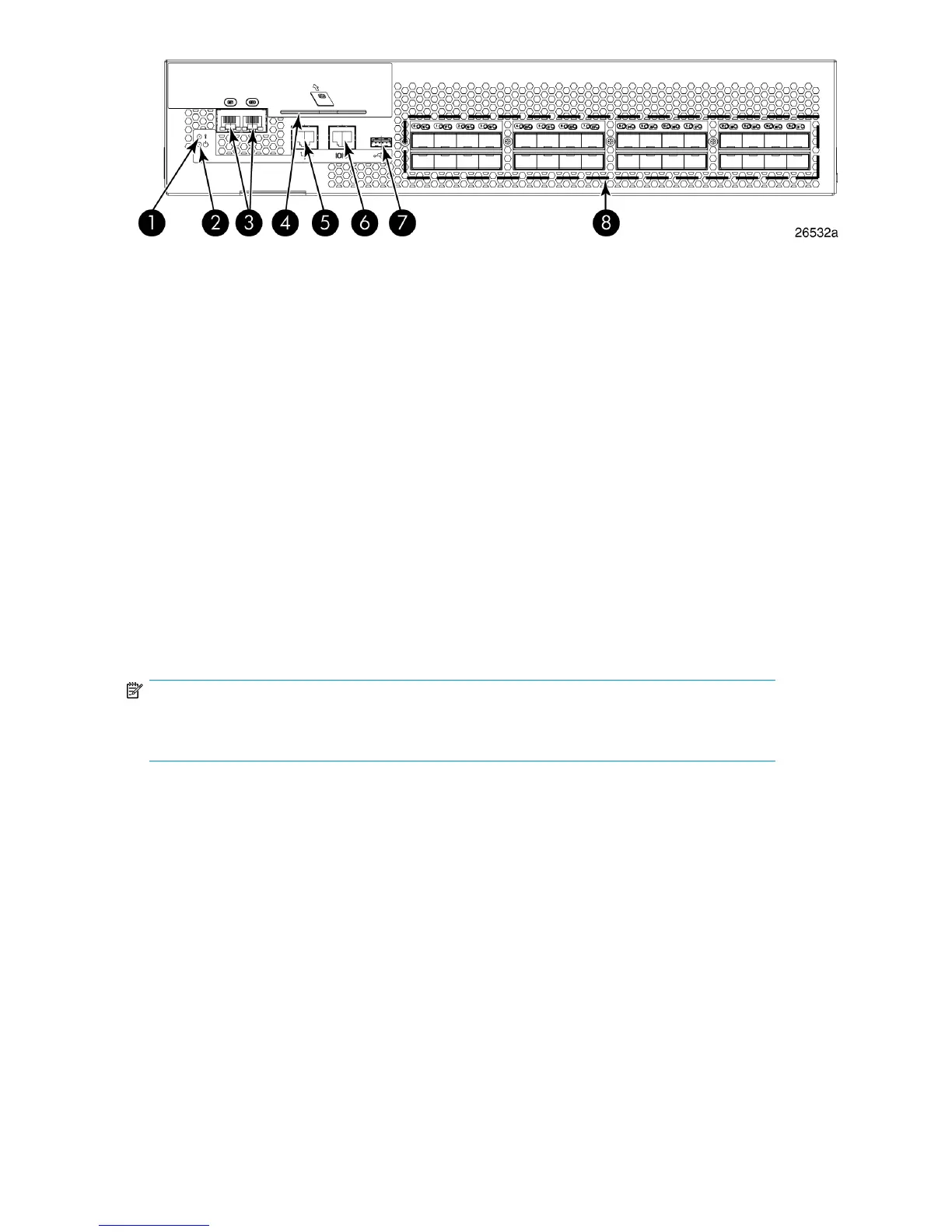

2 Power LED1 Status LED
4 Smart Card reader3 RJ-45 GE ports (for clustering and re-keying)
6 RJ-45 Serial Console port5 RJ-45 Management port
8 Fibre Channel ports (0–31)7 USB port
Figure 6 Port side of the Encryption SAN Switch
FCoE Converged Network Switch features
The FCoE Converged Network Switch has the following features:
• Includes a system motherboard with a Freescale MPC8548 RISC CPU running at 1.3 GHz and
integrated peripherals, that provides high performance with low power consumption.
• Contains an RJ-45 Ethernet management port, and EZSwitch Setup, which supports switch IP address
discovery and configuration.
• Integrates a USB port that provides storage for firmware updates, as well as supportsave
command output and configuration uploads and downloads.
NOTE:
The supportsave command output and configuration upload/download functions are only for the
FC portion of the switch. These functions do not apply to the CEE portion of the switch.
• Provides two hot-swappable, redundant power supply FRUs.
• Provides three hot-swappable fan FRUs in an N+1 configuration to provide hardware-redundant
cooling.
• Includes universal ports that self-configure as E_Ports, F_Ports, M_Ports, or FL_Ports.
• Provides extensive diagnostics and system-monitoring capabilities for enhanced Reliability, Avail-
ability, and Serviceability (RAS).
• Provides FCoE-to-FC latency of 1,670 ns.
The FCoE Converged Network Switch has the following Ethernet capabilities:
• Contains 24 ports, 10-GbE CEE.
• Provides Low-latency, lossless, deterministic interconnect required for FCoE.
• Provides FCoE support with Fabric Provided MAC Address (FPMA) discovery. Fabric OS also
enables support for Priority-based Flow Control (802.1Qbb).
HP StorageWorks 8-Gb SAN Switches24
