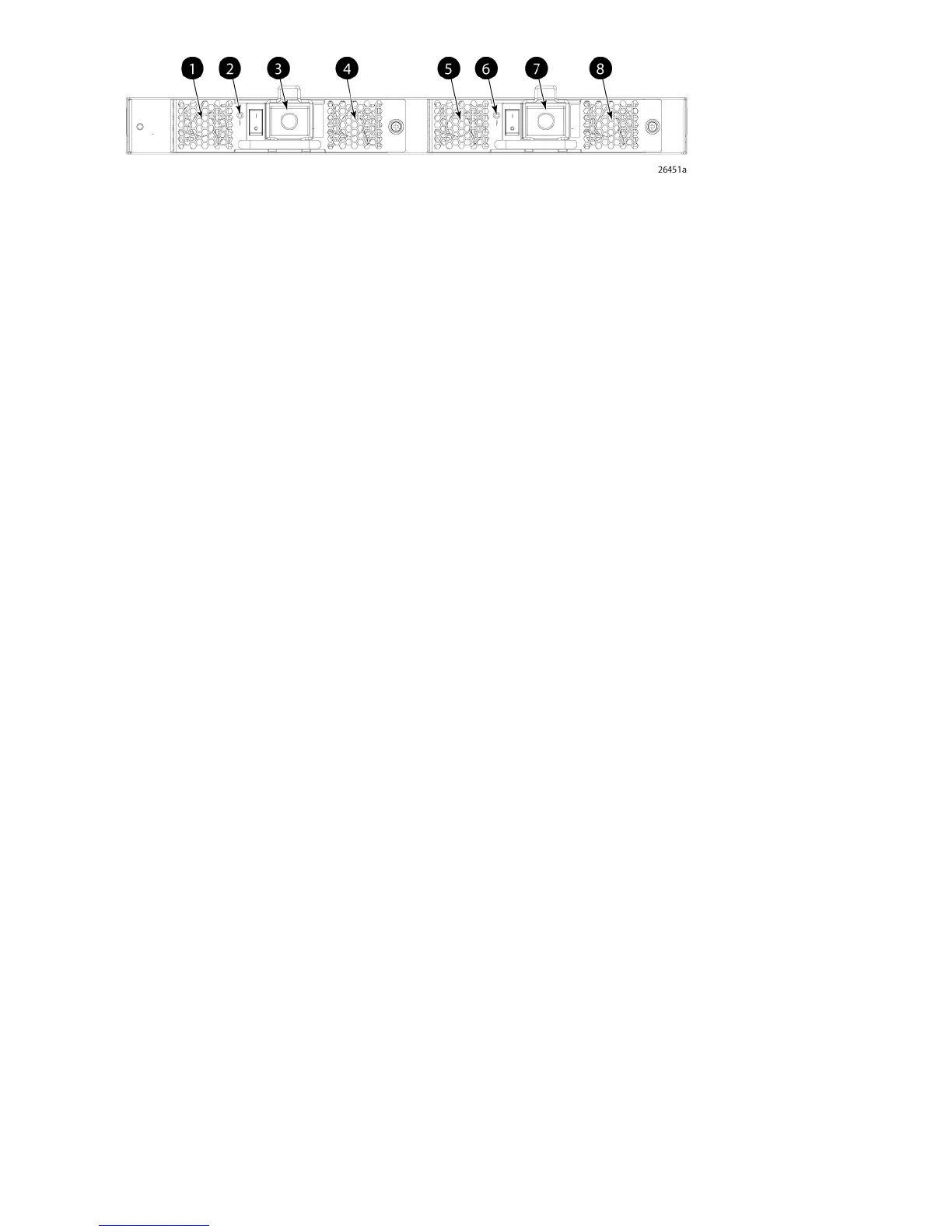

5. Fan (for power supply/fan FRU1)1. Fan (for power supply/fan FRU2)
6. Power supply/fan status LED (for Power Supply/fan
FRU 1)
2. Power supply/fan status LED (for power supply/fan
FRU2)
7. Power supply connector (for power supply/fan FRU
1)
3. Power supply connector (for power supply/fan
FRU2)
8. Fan (for power supply/fan FRU1)4. Fan (for power supply/fan FRU2)
Figure 3 Nonport side view—8/40 SAN Switch
Activating additional 8/40 SAN Switch ports
By default, the 8/40 SAN Switch model integrates 24 licensed ports (ports 0 through 23). To enable
additional ports, you must purchase and install the HP Storage Works 8/40 SAN Switch 8-Gb 8-port
Upgrade LTU (part number T5519A):
• To enable ports 24 through 31, you must purchase and install one upgrade license.
• To enable ports 32 through 40, you must purchase and install a second upgrade license.
See Installing and activating Port Upgrade licenses, page 26.
8/80 SAN Switch features
• Provides the EZSwitch Setup Wizard for easy setup and basic configuration.
• Integrates 1, 2, 4, and 8 Gb/s autosensing Fibre Channel switch and router ports.
• Includes a system motherboard that features a Freescale MPC8548 Reduced Instruction Set
Computer (RISC) CPU running at 1.3 GHz with integrated peripherals that provides high perform-
ance with low power consumption.
• Ships FICON, FICON Cascading, and FICON Control Unit Port (CUP) ready.
• Provides two hot-swappable, redundant power supply FRUs.
• Provides three hot-swappable fan FRUs in an N+1 configuration to provide hardware-redundant
cooling.
• Provides universal ports that self-configure as E_Ports, F_Ports, M_Ports, or FL_Ports. Ex_Ports are
activated on a per-port basis with the optional HP B-series 48-80 Port SAN Switch Integrated
Routing LTU. This license provides native Fibre Channel Routing (FCR) on a per-port basis, rather
than limiting routing ports to those on a dedicated routing blade or switch. Just like traditional
FCR, Integrated Routing uses EX_Ports to import and export devices between fabrics, enabling
selective device sharing while maintaining remote fabric isolation. See Table 6, page 29 for or-
dering information.
• Integrates a Universal Serial Bus (USB) port that provides storage for firmware updates, output of
the supportsave command and storage for configuration uploads and downloads.
