Port side of the 8/80 SAN Switch
The port side of the 8/80 SAN Switch includes the system status LED, console port, Ethernet port and
LEDs, USB port, and FC ports with corresponding port status LEDs. Figure 4 shows the port side of
the 8/80 SAN Switch.
9 FC ports 16–231 8/80 SAN Switch
10 FC ports 24-312 Switch ID pull-out tab
11 FC ports 32-383 Status LED (top) power LED (bottom)
12 FC ports 40-474 Console port
13 FC ports 48-555 Ethernet port
14 FC ports 56-636 USB port
15 FC ports 64-717 FC ports 0–7
16 FC ports 72–798 FC ports 8-15

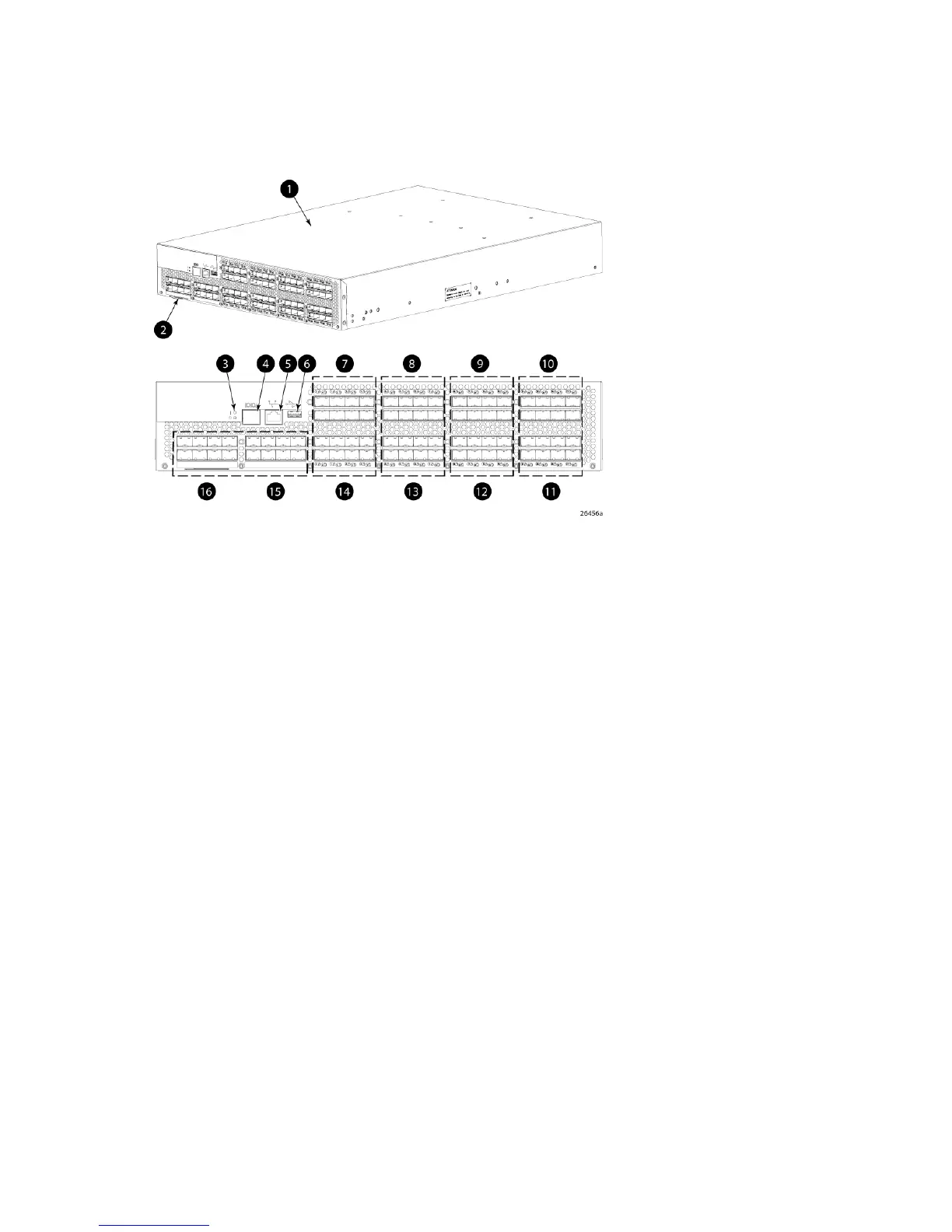

Figure 4 Port side view—8/80 SAN Switch
Nonport side of the 8/80 SAN Switch and the Encryption SAN Switch
Figure 5 shows the nonport side of the 8/80 SAN Switch and the Encryption SAN Switch, which
contains the power supplies (including the AC power receptacle and AC power switch) and fans.
8-Gb SAN Switch hardware reference manual 21
