HP StorageWorks 8/8 - SAN Switch

6 Power supply #1 Status LED1 Power supply #2 status LED
7 Power supply #12 Power supply #2
8 Fan assembly #1 status LED3 Fan assembly #3
9 Fan assembly #2 status LED4 Fan assembly #2
10 Fan Assembly #3 Status LED5 Fan assembly #1

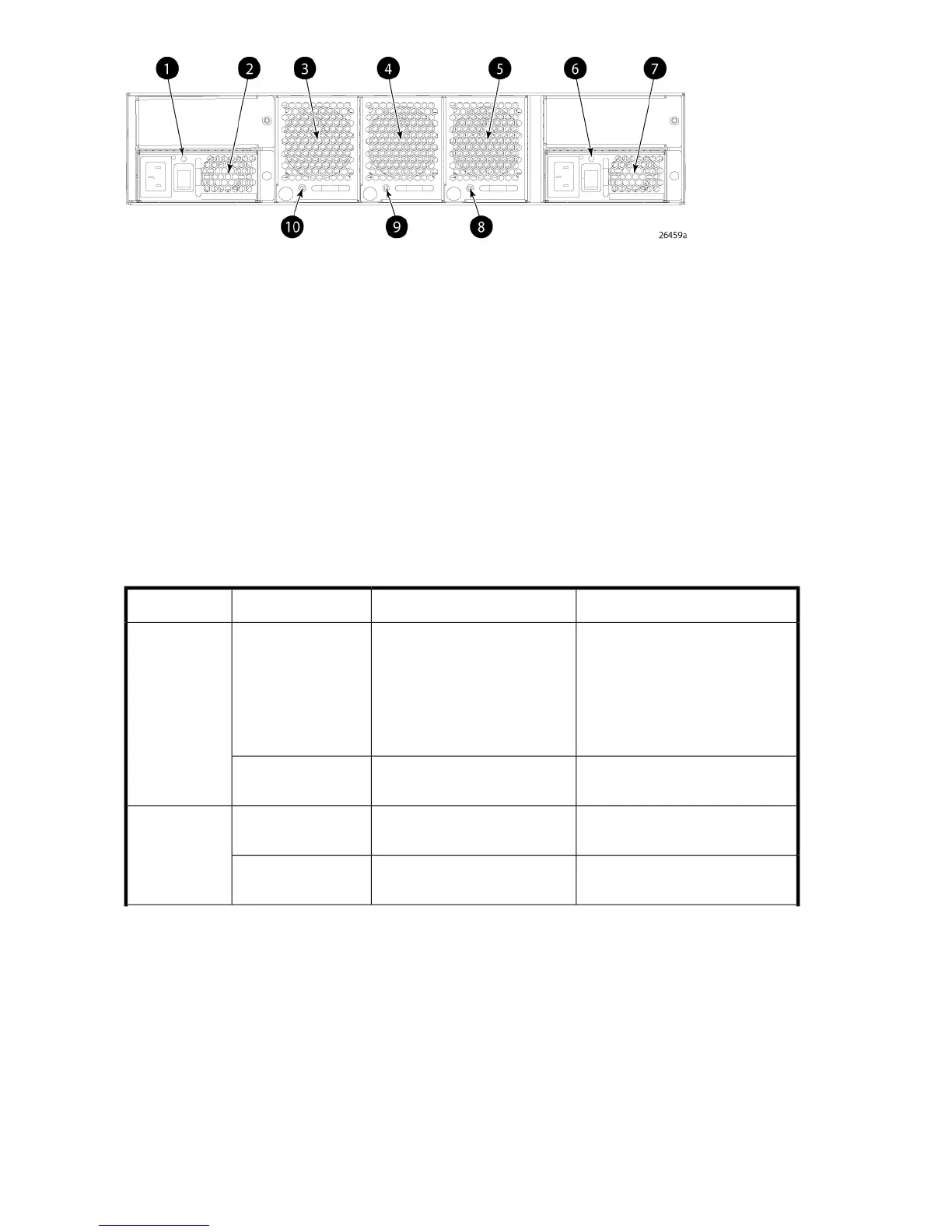

Figure 27 Identifying 8/80 SAN Switch nonport side LEDs
Port side LED activity for the 8/80 SAN Switch
Table 11 describes LEDs and recommended actions.
Table 11 8-Gb SAN Switch port side LED patterns
Recommended actionStatus of hardwareLED colorLED name
Verify that the system is powered
on (power supply switches to “1”),
the power cables are attached,
and your power source is live. If
the system power LED is not green,
the unit may be faulty. Contact
your switch service provider.
System is off or there is an intern-
al power supply failure.
No light
Power status
No action required.
System is on and power sup-
plies are functioning properly.
Steady green
Verify that the system is on and has
completed booting.
System is off or there is no
power.
No light
System status
No action required.
System is on and functioning
properly.
Steady green
Managing the 8-Gb SAN Switches60
