The following items are required to install the switch in a rack:
• SAN Switch
• Power cables
• #2 Phillips screwdriver
• 7/16-inch wrench or socket
• Plenum (if required). For 8-Gb models, a plenum is required for 8/8 and 8/24 SAN Switches
only.
• SAN Switch Rack Mount Kit hardware, shown in Table 9, which identifies rails and rail mounting
hardware

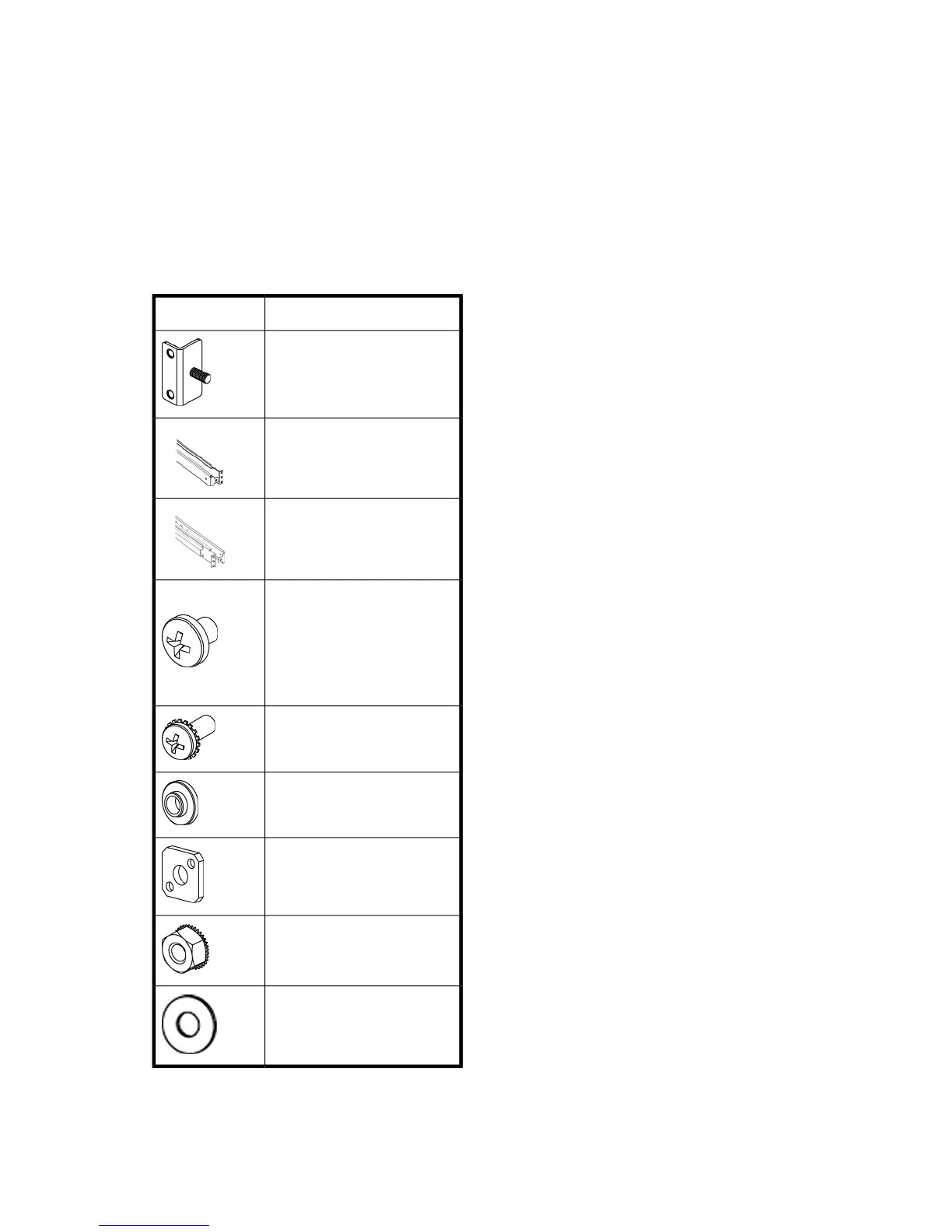

Table 9 SAN Switch Rack Mount Kit hardware
DescriptionItem
Two rear mounting brackets
A right inner rail and a right
outer rail
A left inner rail and a left outer
rail
14 #8-32 x 3/16-inch Phillips
pan-head screws with thread
lock for use with the SAN
Switch 2/32 only.
14 #8-32 x 5/16-inch Phillips
pan-head SEMS screws
10 #10-32 x 1/2-inch Phillips
pan-head screws with captive
star lock-washers
Eight #10 alignment washers
Eight #10 adapter washers
Two 1/4-20 hex nuts with
captive star lock-washers
Two 1/4-inch flat washers
8-Gb SAN Switch hardware reference manual 37
