HP StorageWorks 8/8 - SAN Switch - 8;8 and 8;24 SAN Switch Leds; 8;40 SAN Switch Leds; Identifying 8;8 and 8;24 SAN Switch Leds

8/8 and 8/24 SAN Switch LEDs
8/8 and 8/24 SAN Switch LEDs are located on the port side only.
4 Link speed LED1 System power LED (green)
5 Port status LED (port 3)2 System status LED (green/amber)
6 Port status LED (port 7)3 Link status LED

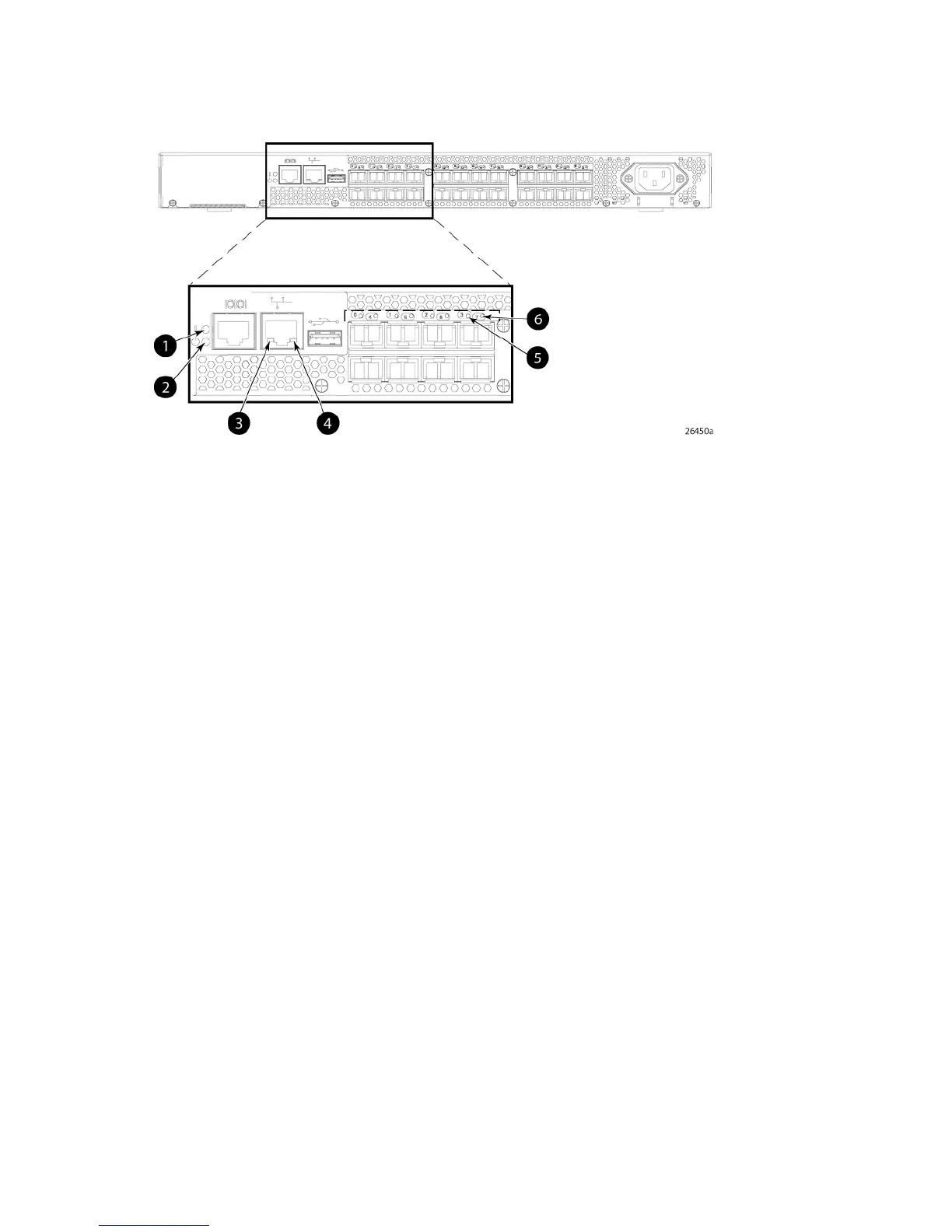

Figure 23 Identifying 8/8 and 8/24 SAN Switch LEDs
8/40 SAN Switch LEDs
8/40 SAN Switch LEDs are located on the port side and nonport side. See Figure 24 and Figure 25.
