Collect the required items
NOTE: The rack mount kit installation requires one technician.
Locate the following items and set them aside:
• SN6000 Fibre Channel Switch
• 8/20q and SN6000 Fibre Channel Switch rack-mount kit
• Smaller items, such as screws, ship in plastic bags in the kit. See Table 9.
Required tools:
• #2 Phillips screwdriver
• 7/16-inch wrench
Verify the kit contents
Check the contents of the 8/20q and SN6000 Fibre Channel Switch rack mount kit shipping carton to
verify that all required parts and hardware are available (Table 9).

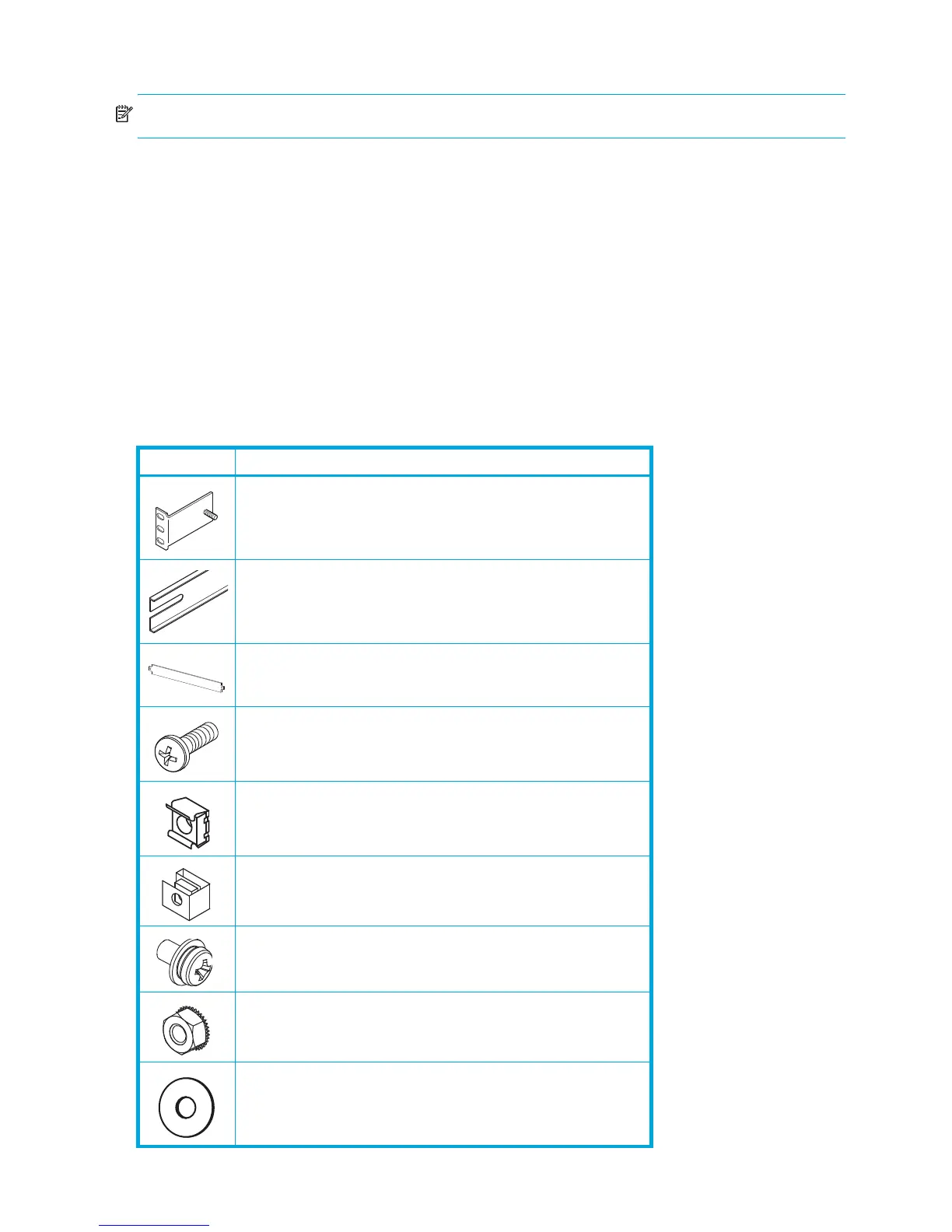

Table 9 8/20q and SN6000 Fibre Channel Switch rack mount kit hardware
Item Description
Two (2) rear mounting brackets
Two (2) switch rails
One (1) filler panel (optional), see step 7.
Ten (10) M6 machine screws
Ten (10) M6 cage-nuts for square rack holes
Ten (10) M6 cage-nuts for round rack holes
Four (4) 10-32 x
.375-inch screws with captive washers
Two (2) 1/4-20 hex nuts with lock washers
Two (2) 1/4-inch flat washers
