5. Fasten each rail flange to the front of the rack using two M6 machine screws (Figure 16).

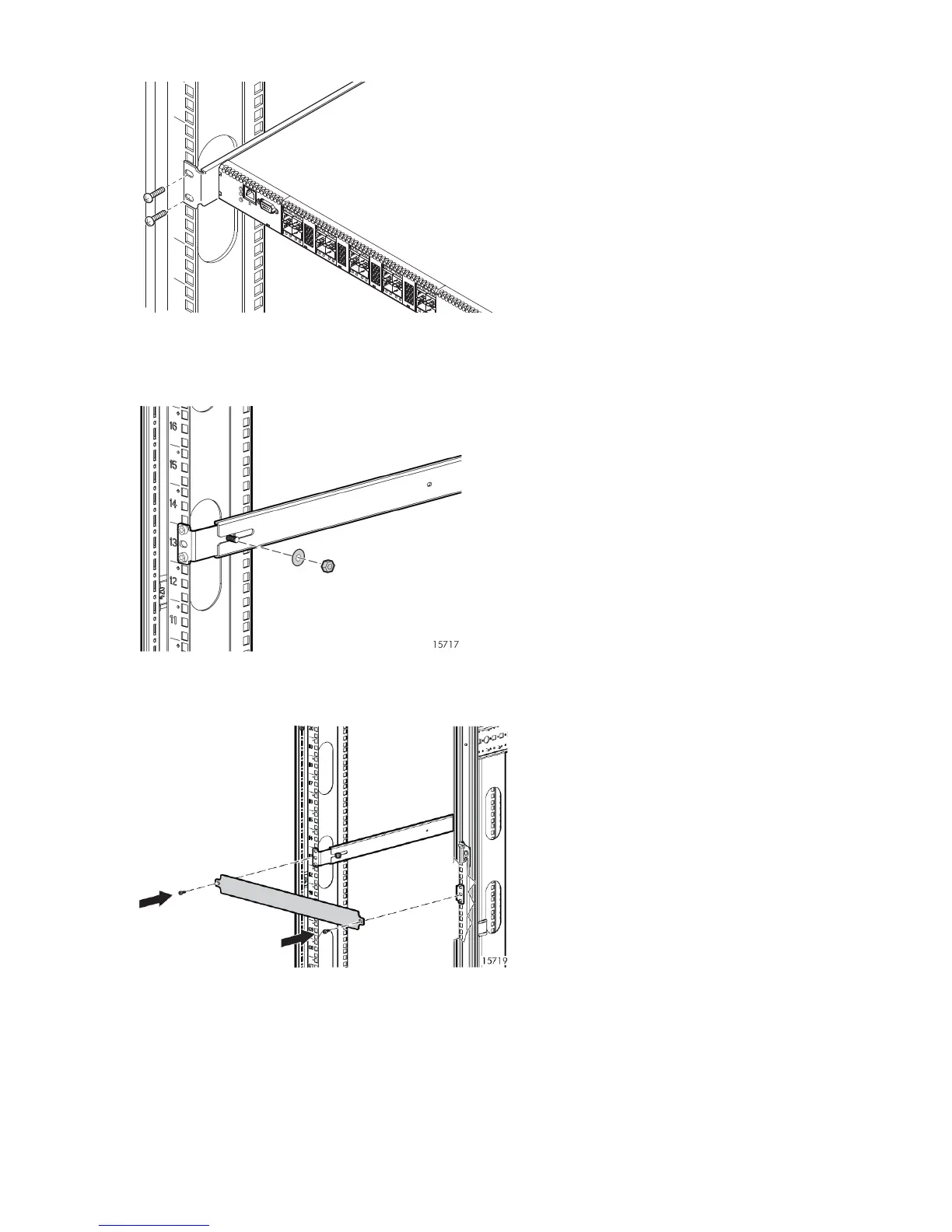

Figure 16 Fastening the rail to the front of the rack
6. Fasten each slotted-rail end to the rear mounting bracket using a flat washer and a 1/4-20 hex nut
(Figure 17).
Figure 17 Fastening the rail to the rear mounting bracket
7. Optional: Fasten the filler panel to the rear mounting brackets with two M6 machine screws (Figure 18).
Figure 18 Installing the filler panel
