USB/audio board
NOTE: The USB/audio board spare part kit does not include the audio/USB board cable. The cable is
available as spare part number L44443-001.
Table 5-9 USB/audio description and part number
Description Spare part number
USB/audio board for use in models with a Pentium or Celeron processor L44442-001
USB/audio board for use in models with an Atom processor L62794-001
Before removing the USB/audio board, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 22).
2. Remove the keyboard/top cover (see Keyboard/top cover on page 22).
3. Disconnect the battery (see Battery on page 30).
Remove the USB/audio board

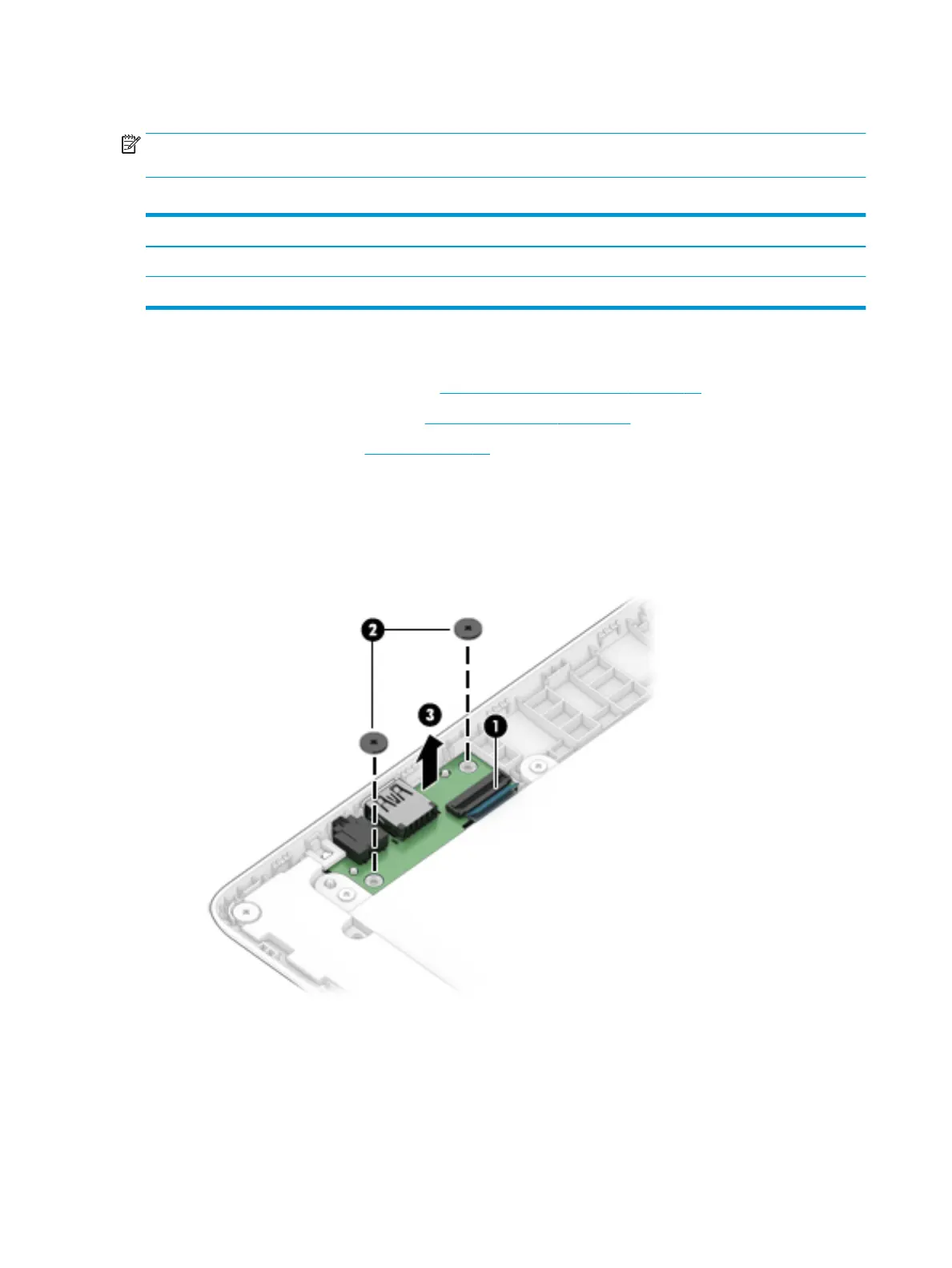

1. Disconnect the cable from the ZIF connector on the audio/USB board (1).
2. Remove the two Phillips M2.0 × 2.5 screws (2) that secure the board to the computer.
3. Remove the board from the computer (3).
Reverse this procedure to install the USB/audio board
34 Chapter 5 Removal and replacement procedures for authorized service provider parts
