Power connector
Table 5-12 Power connector description and part number
Description Spare part number
Power connector L44451-001
Before removing the power connector, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 22).
2. Remove the keyboard/top cover (see Keyboard/top cover on page 22).
3. Disconnect the battery (see Battery on page 30).
4. Remove the display (see Display assembly on page 37).
5. Remove the USB bracket (see System board on page 45).

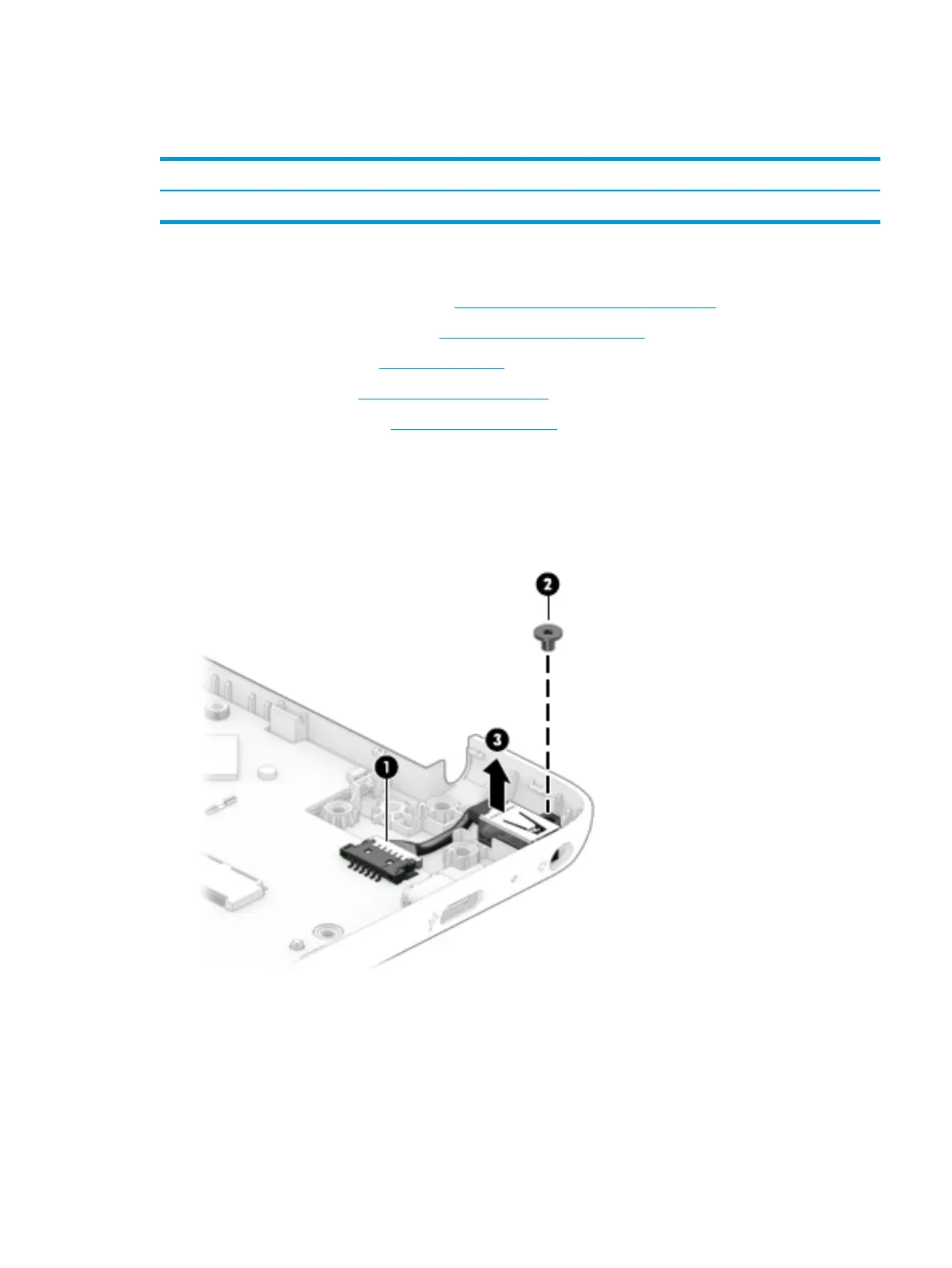

Remove the power connector cable:
1. Disconnect the power connector cable from the system board (1).
2. Remove the Phillips M2.0 × 2.6 screw (2) that secures the power connector to the computer.
3. Remove the power connector and cable from the computer (3).
Reverse this procedure to install the power connector cable.
Component replacement procedures 47
