c. Remove the antennas and cables (3).
The WLAN antennas and cables are available as spare part number L44462-001 for a models that
use a single antenna and L44463-001 for models that use dual antennas.

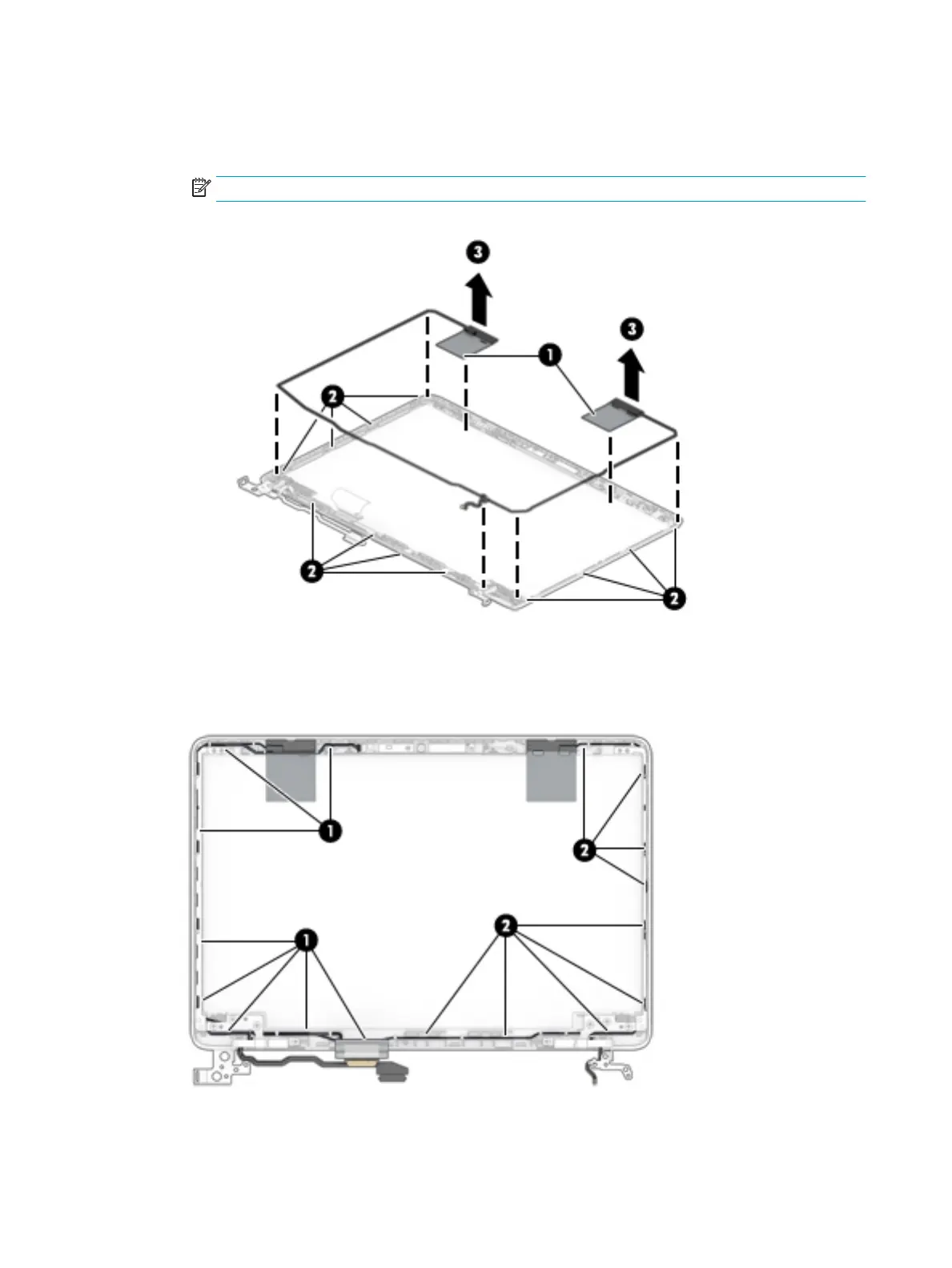

NOTE: The following illustration shows dual antennas.
Display enclosure is available as spare part number L44459-001 for royal blue models,
L44460-001 for diamond white models, and L44461-001 for rose pink models.
15. Use the following image to determine proper display cable (1) and antenna cable (1) and (2) routing in
the display back cover.
Reverse this procedure to reassemble install the display assembly.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
