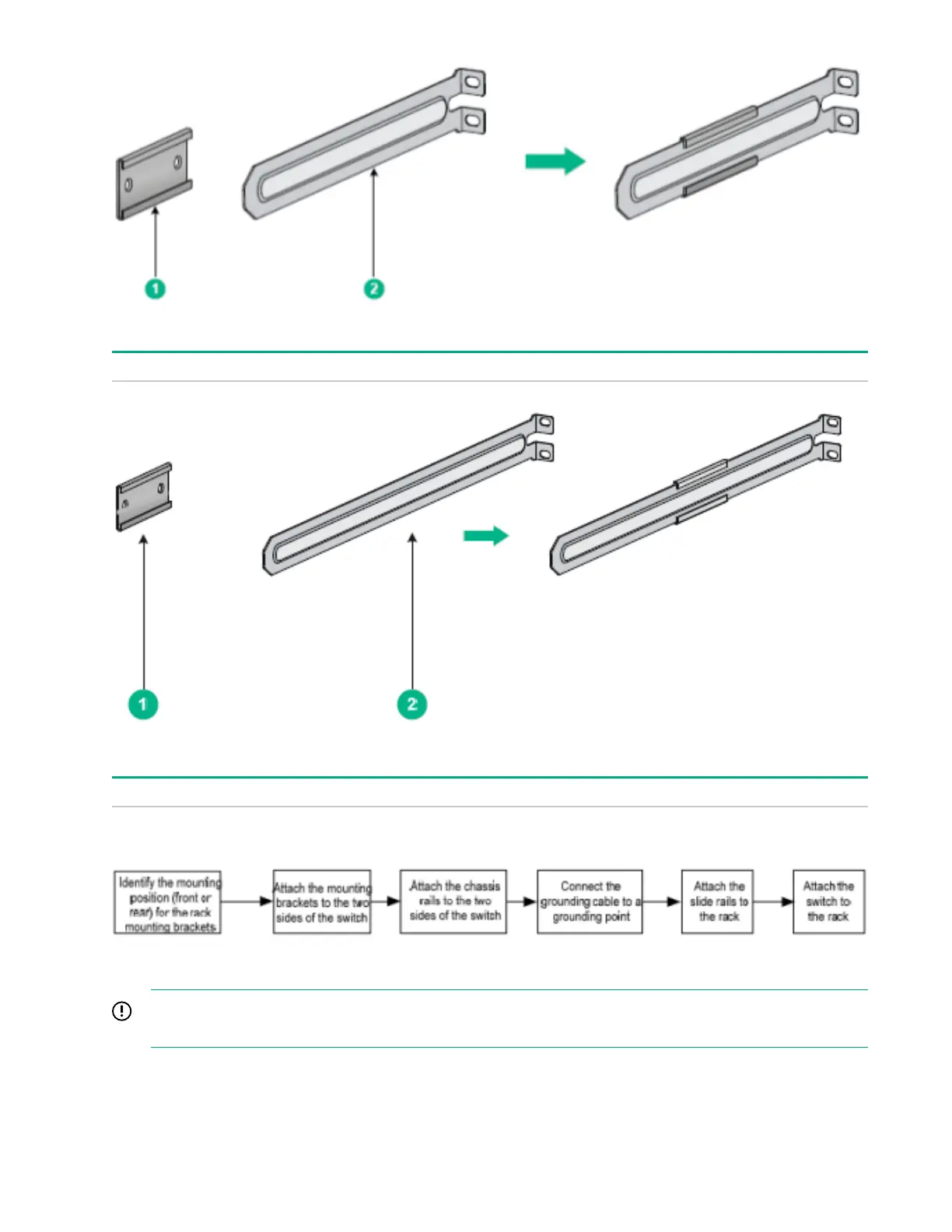

Figure 3: Rack mounting rail kit (short slide rails)
(1) Chassis rail
(2) Short slide rail
Figure 4: Rack mounting rail kit (long slide rails)
(1) Chassis rail
(2) Long slide rail
Rack-mounting procedures at a glance
Figure 5: Rack-mounting procedure
IMPORTANT: To make sure that the switch is securely installed in the rack, you must install both the mounting brackets
and rack-mounting rail kit.
14 Installing the switch
