HPE 5900AF-48G-4XG-2QSFP+/HPE 5900AF-48G-4XG-2QSFP+ TAA

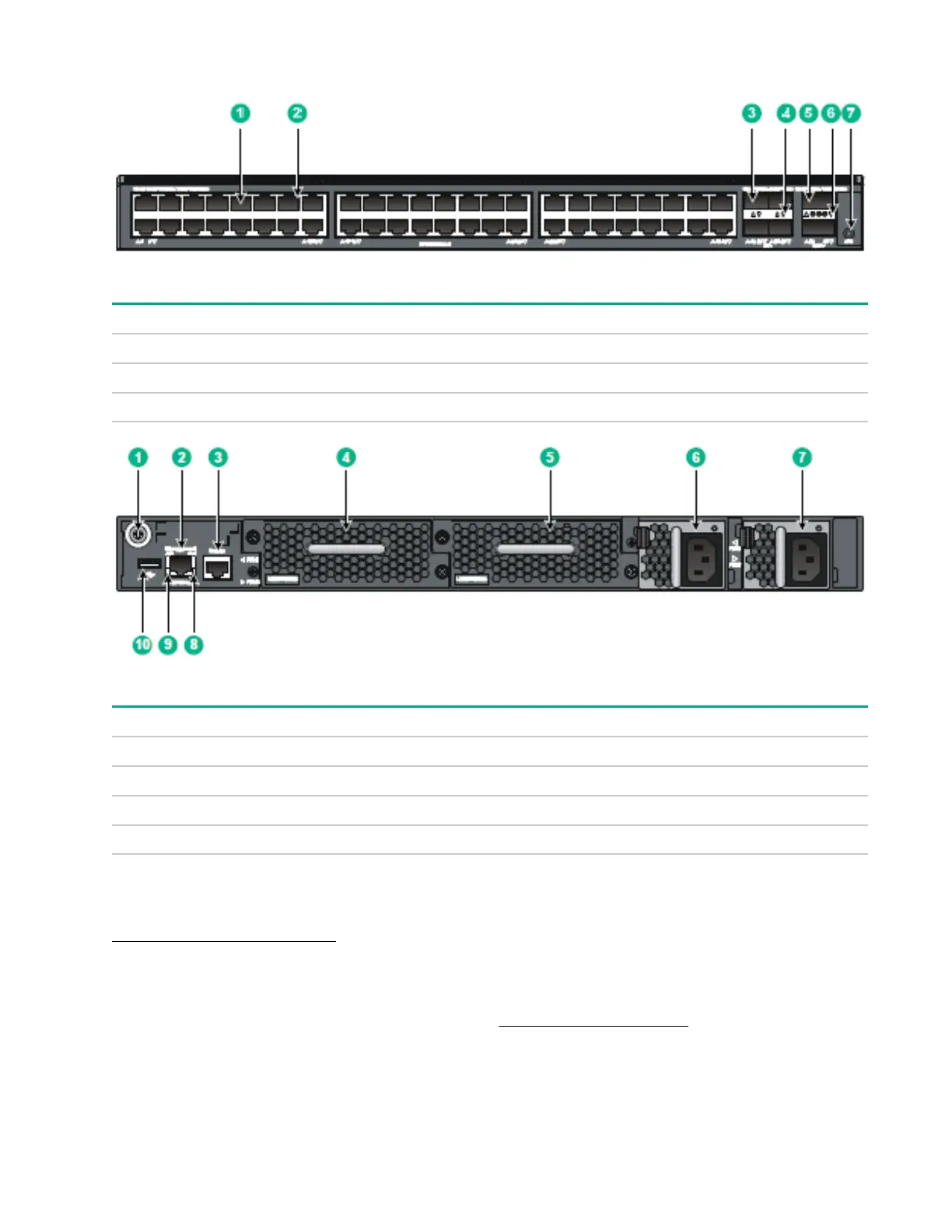

Figure 43: Front panel
(1) 10/100/1000Base-T autosensing Ethernet port
(2) 10/100/1000Base-T autosensing Ethernet port LED
(3) SFP+ port (4) SFP+ port LED
(5) QSFP+ port (6) QSFP+ port LED
(7) System status LED (SYS)
Figure 44: Rear panel
(1) Grounding screw (auxiliary grounding point 2)
(2) Management Ethernet port
(3) Console port (4) Fan tray slot 1
(5) Fan tray slot 2 (6) Power supply slot 1
(7) Power supply slot 2 (8) LINK LED for the management Ethernet port
(9) ACT LED for the management Ethernet port (10) USB port
The HPE 5900AF-48G-4XG-2QSFP+ and 5900AF-48G-4XG-2QSFP+ TAA switches come with the power supply slots empty
and the filler modules for the slots as accessories. You can install one or two power supplies for the switch as needed. In this
figure, two 650W AC power supplies are installed. For more information about installing and removing the power supply, see
Installing/removing a power supply on page 27.
The HPE 5900AF-48G-4XG-2QSFP+ and 5900AF-48G-4XG-2QSFP+ TAA switches also come with the fan tray slots empty.
You must install two fan trays for the HPE 5900AF-48G-4XG-2QSFP+ and 5900AF-48G-4XG-2QSFP+ TAA switches for
adequate heat dissipation, and their models must be the same. In this figure, two LSWM1FANSC fan trays are installed. For
more information about installing and removing the fan tray, see
Installing/removing a fan tray on page 25.
