HPE FlexNetwork 5130 Series User Manual

9
Troubleshooting ACL
This section provides troubleshooting information for common problems with ACLs.
ACL application failure with an error message
Symptom
The system fails to apply a packet filter or an ACL-based QoS policy to the hardware. It also displays
the "Reason: Not enough hardware resource" message.
Solution
To resolve the problem:
1. Execute the display qos-acl resource command, and then check the Remaining field for ACL
resources insufficiency.
If this field displays 0, the ACL hardware resources are exhausted.
2. To free hardware resources for packet filtering or QoS classification, remove unused ACLs.
3. If the problem persists, contact Hewlett Packard Enterprise Support.
ACL application failure without an error message
Symptom
The system applies a packet filter or an ACL-based QoS policy to the hardware. However, the ACL
does not take effect.

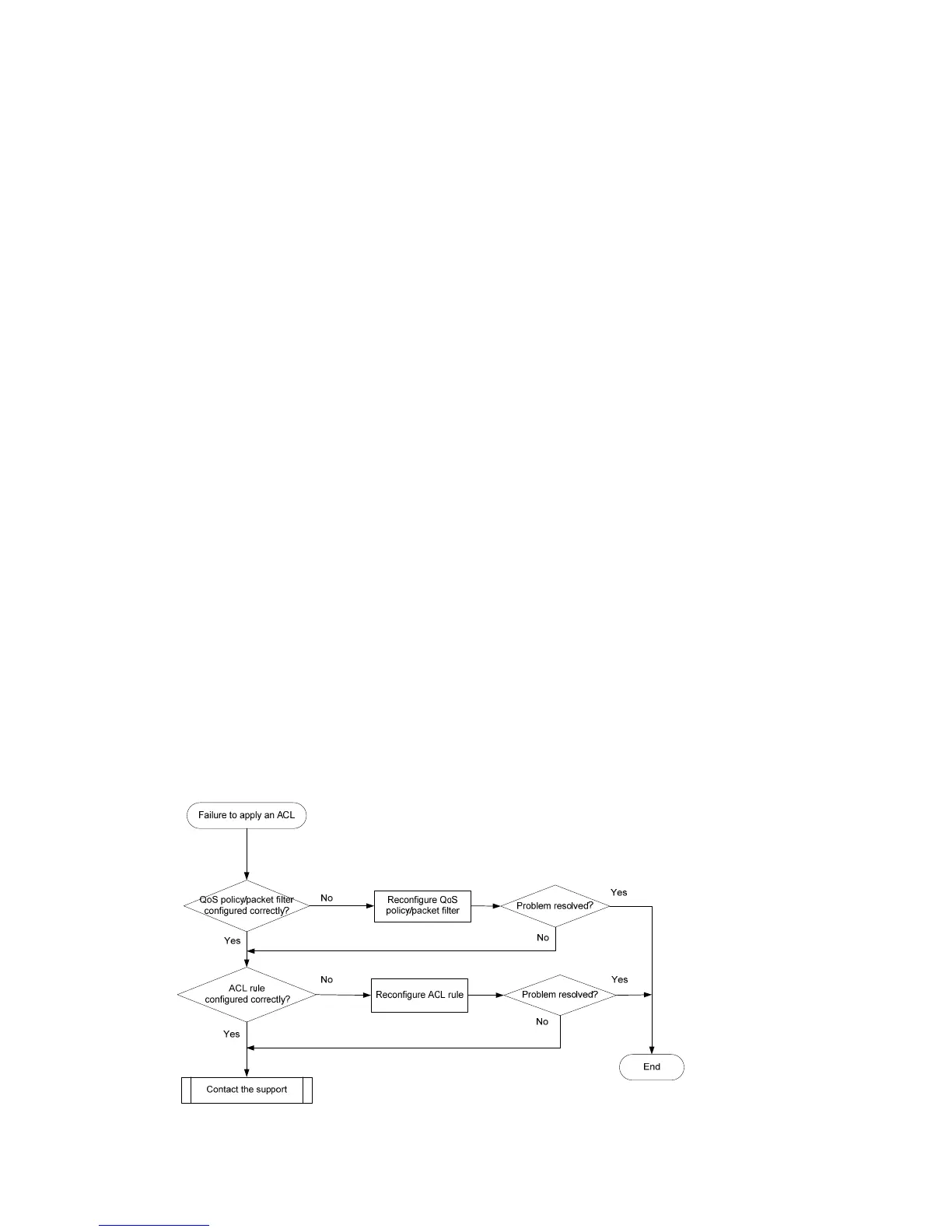

Troubleshooting flowchart
Figure 2 Troubleshooting an ACL application failure

HPE FlexNetwork 5130 Series Specifications

General

Category	Network Switch
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 x SFP+ ports
Routing Protocol	Static routing, RIP, OSPF, BGP
PoE	Available on some models (PoE+)
Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C
Management	Web, CLI, SNMP
Jumbo Frame Support	Yes
VLANs	4094
Operating Humidity	5% to 95% (noncondensing)
