• under a table

• in a rack or cabinet

Rack or cabinet mounting

The switches are designed to be mounted in any EIA-standard 19-inch telco rack or communication

equipment cabinet. Note that the mounting brackets have multiple mounting holes and can be rotated

allowing for a wide variety of mounting options.

WARNING:

For safe operation, please read Installation precautions on page 14 before mounting the switch.

NOTE:

The screws supplied with the switch are the correct threading for standard EIA/TIA open 19-inch

racks. If you are installing the switch in an equipment cabinet such as a server cabinet, use the clips

and screws that came with the cabinet in place of the screws that are supplied with the switch.

Complete the following step 1 to attach brackets to the switch. Then, plan which four holes you will

be using in the cabinet and install all four clips. Then proceed to step 2 to install the switch in the

cabinet.

Procedure

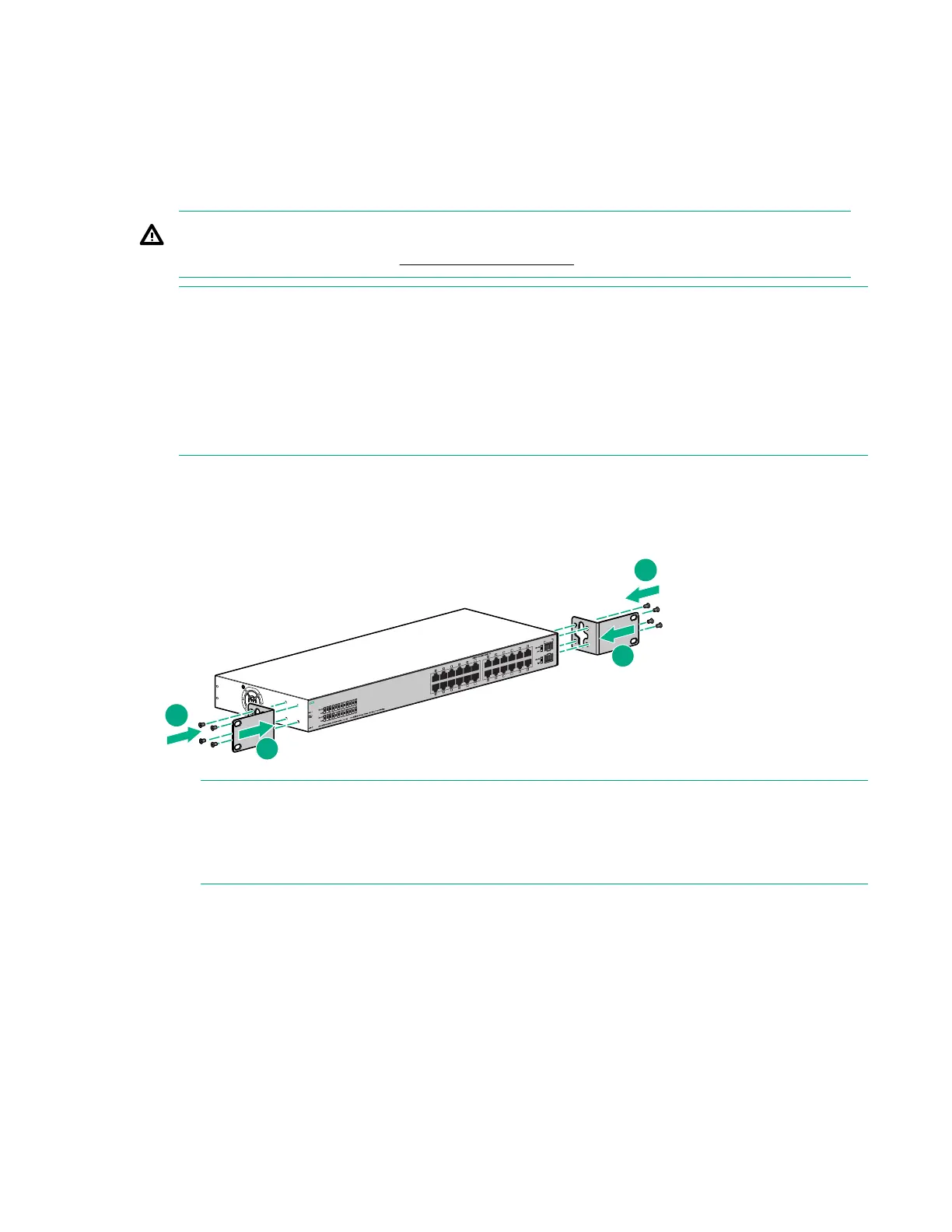

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the switch with the

included 8-mm M4 screws.

HPE OfficeConnect 1820 Series Switch J9980A

SFP Ports

NOTE:

The mounting brackets have multiple mounting holes and can be rotated allowing for a wide

variety of mounting options. These include mounting the switch so its front face is flush with the

face of the rack, as shown in the illustration.

2. Hold the switch with attached brackets in the rack and move it vertically until rack holes line up with

the bracket holes, then insert and tighten the four 12-24 screws holding the brackets to the rack.

Rack or cabinet mounting 19
