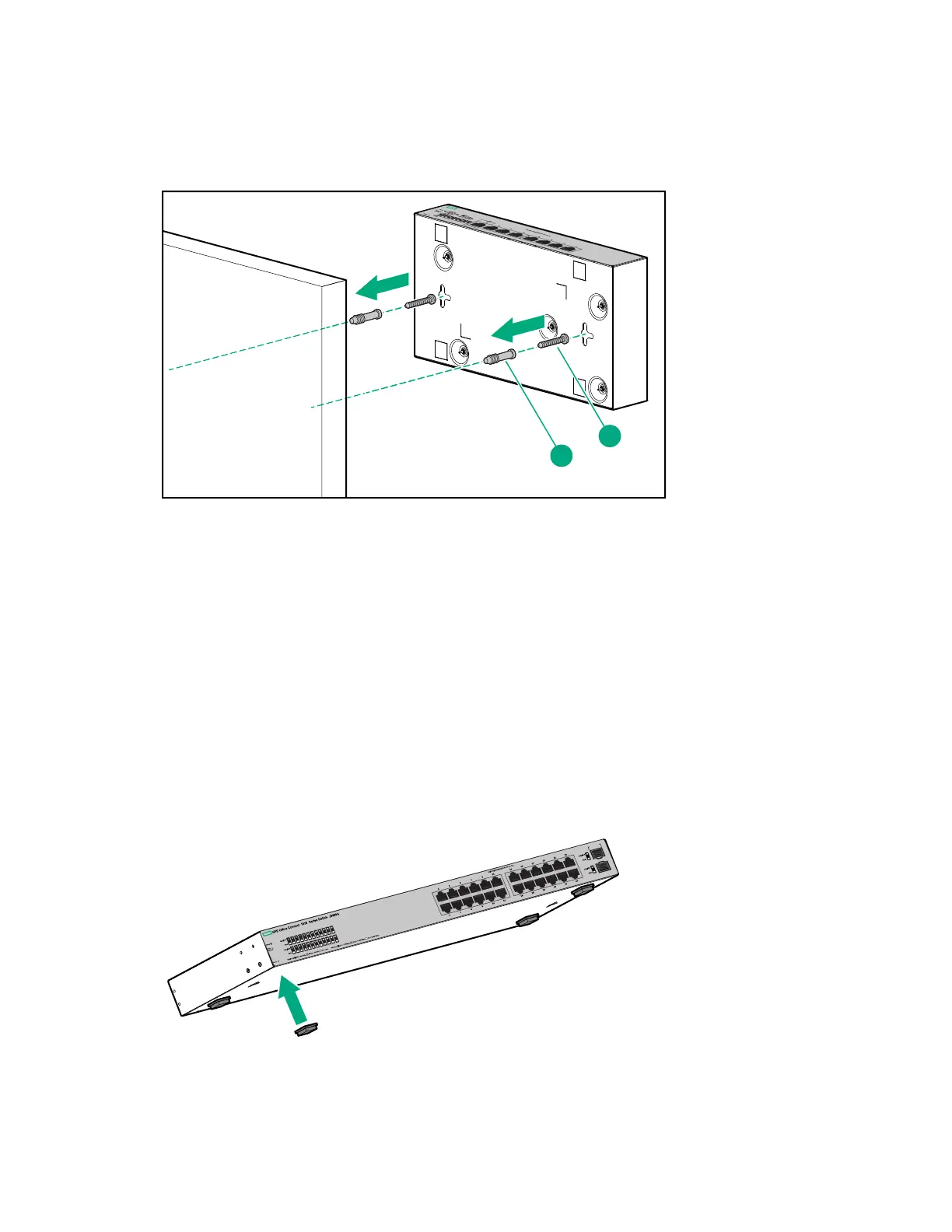

1. In the required location, mark the position for the mounting screws. The hole-to-hole distance is 3.54

inch (90 mm).

2. Use a #1 Phillips (cross-head) screwdriver and two of the included 20-mm M4 tap screws. Set the

screw heads approximately 2 mm away from the mounting surface to allow the switch to slide onto the

screws.

Wall anchors are included in the accessory kit for use with plastered brick or concrete walls.

HPE OfficeConnect 1820 Series Switch

J9979A

20mm M4 tap screws

Wall anchors

3. For under-table mounting, a third 20-mm M4 tap screw can be placed against one side of the switch to

secure it in place.

Horizontal surface mounting

Place the switch on a table or other horizontal surface. The switch comes with rubber feet in the

accessory kit that can be used to help keep the switch from sliding on the surface.

Attach the rubber feet to the four corners on the bottom of the switch within the embossed angled lines.

Use a sturdy surface in an uncluttered area. You may want to secure the networking cables and switch

power cord to the table leg or other part of the surface structure to help prevent tripping over the cords.

SFP Ports

Horizontal surface mounting 21
