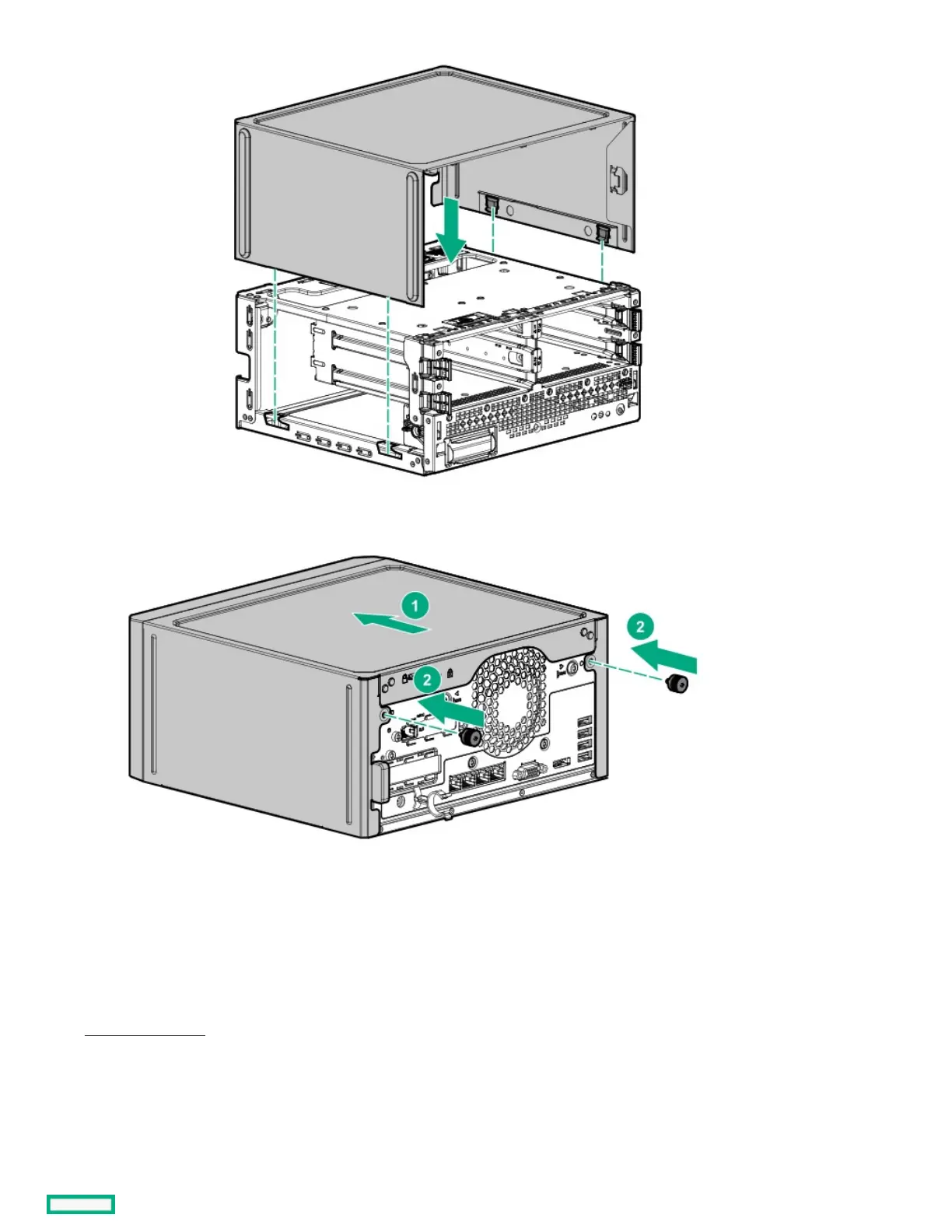

b. Slide the chassis cover towards the front panel (callout 1), and then install the chassis thumbscrews (callout 2).
2. If removed, install the security padlock and/or the Kensington security lock.
For more information, see the lock documentation.
3. Connect all peripheral cables to the server.
4. Connect the power adapter to the server, and then secure the power adapter cord in the power cord clamp.
5. Connect the power cord to the AC source.
6. Power up the server .
Installing the front bezelInstalling the front bezel
ProcedureProcedure
