Removal and replacement procedures 25
c.

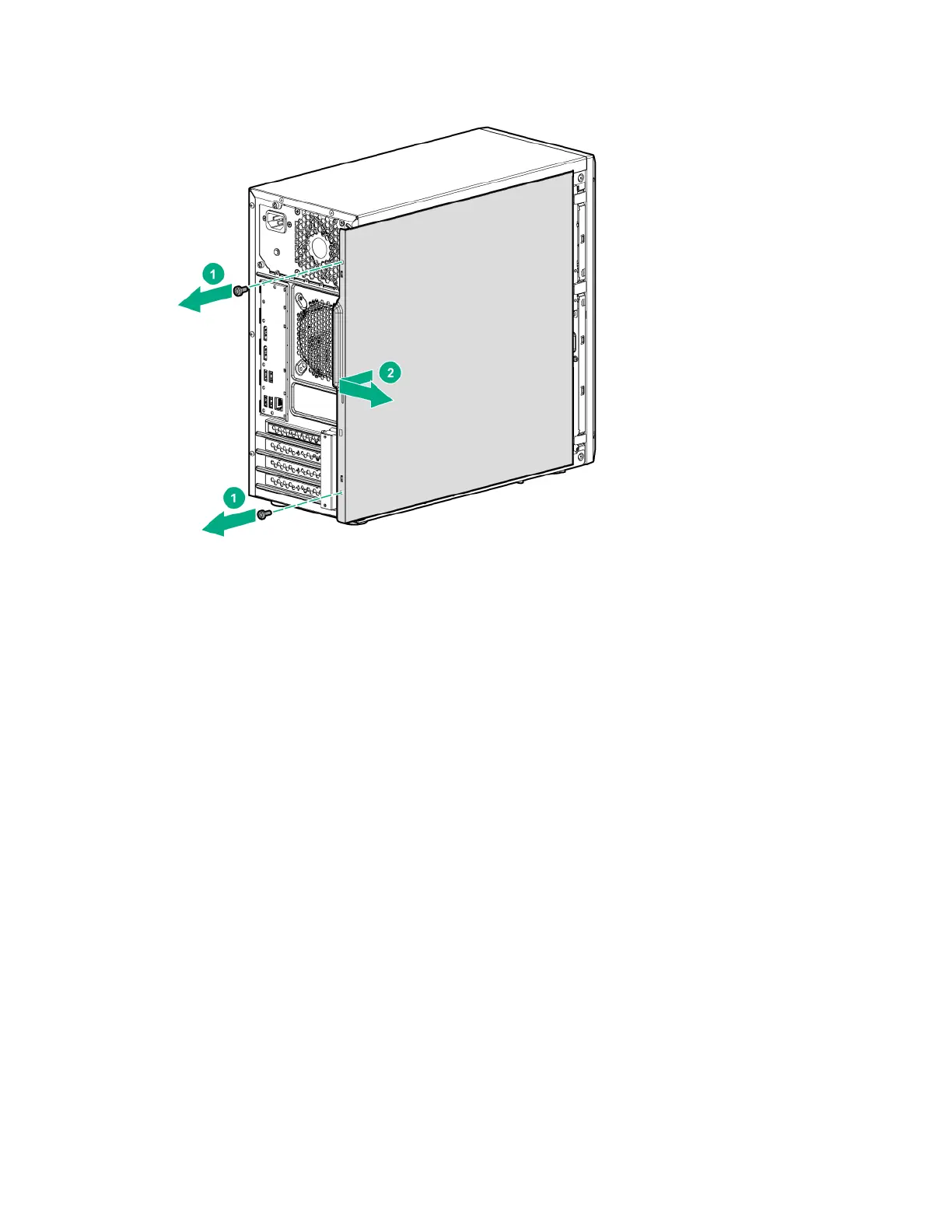

Lift the access panel away from the chassis.
Tower bezel
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the access panel (on page 24).
4. Remove all USB devices from the front I/O assembly.
