Removal and replacement procedures 39
8.

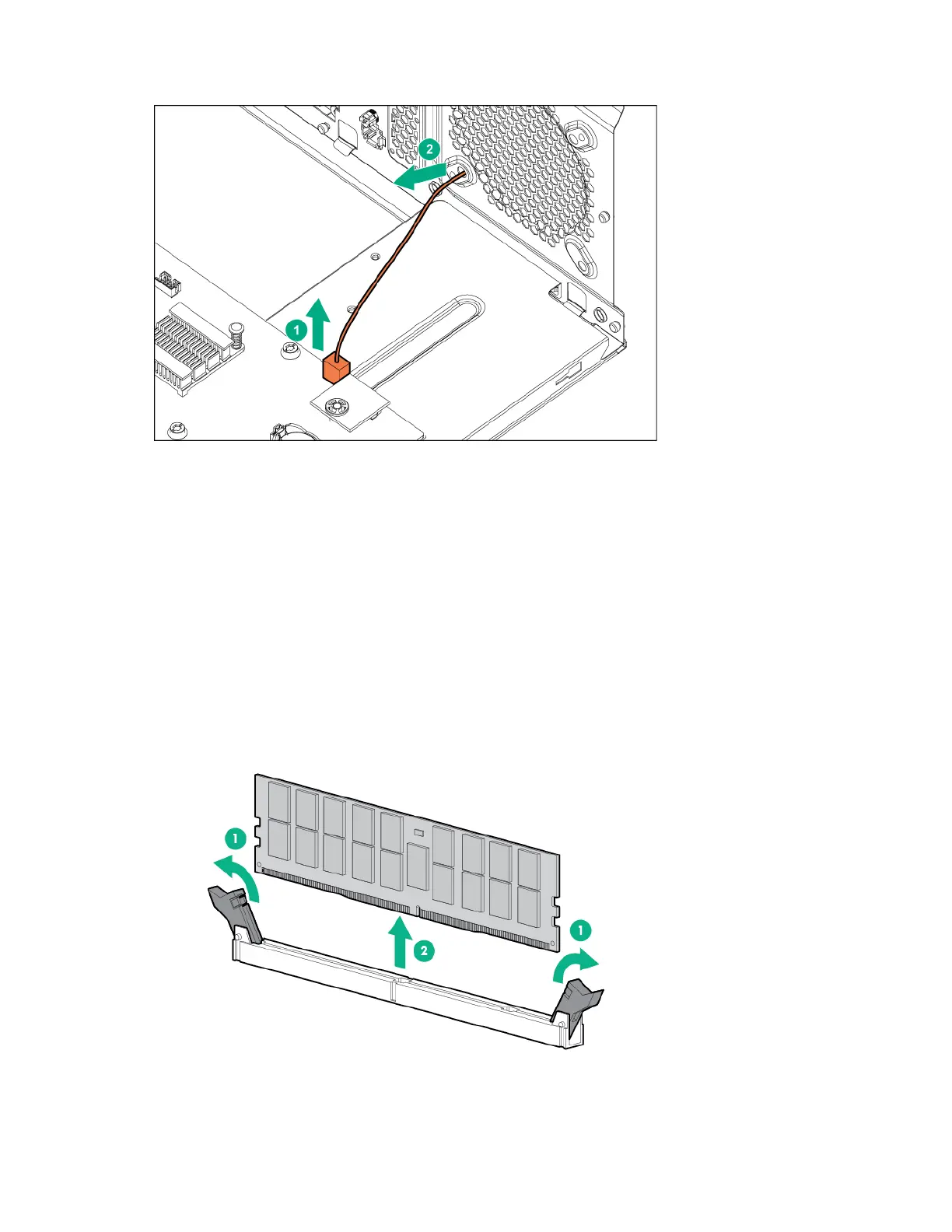

Disconnect the ambient temperature sensor cable from the system board.
To replace the component, reverse the removal procedure.
DIMMs
To remove the component:
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the access panel (on page 24).
4. Place the server on its side.
5. Open the DIMM slot latches.
6. Remove the DIMM.
To replace the component, reverse the removal procedure.
