HPE ProLiant ML10 Gen9

Component identification 62

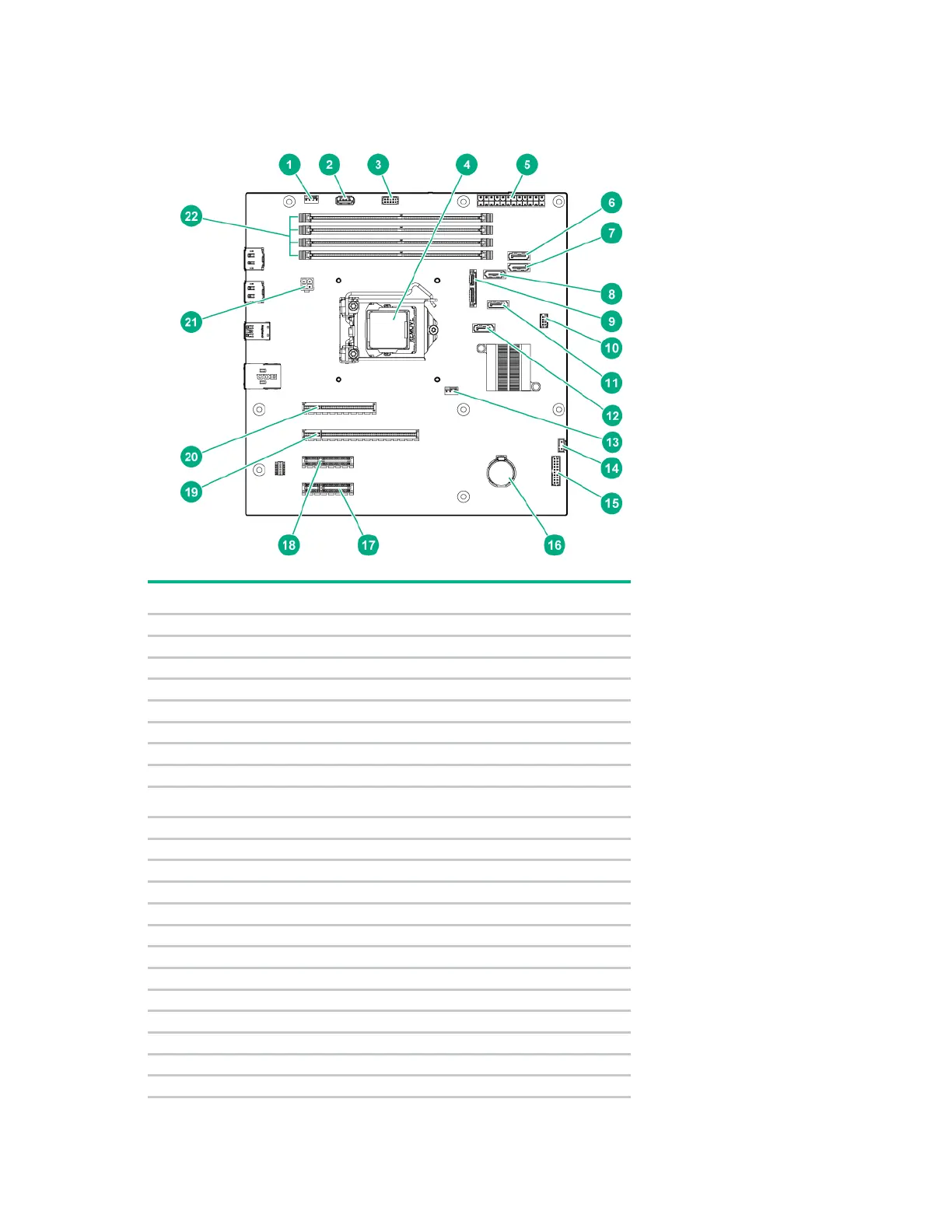

System board components
Item Description
1
System fan connector
2
Internal USB 2.0 connector
3
Front LEDs and power button module connector
4
Processor
5
24-pin power supply connector
6
SATA connector 1
7
SATA connector 2
8
SATA connector 3
9
SATA 6 and optical drive shared connector
10
Front USB connector
11
SATA connector 4
12
SATA connector 5
13
Processor fan connector
14
Ambient temperature sensor connector
15
TPM connector
16
System battery
17
Slot 4, PCIe3 x4 (4,1)*
18
Slot 3, PCIe3 x4 (4,1)*
19
Slot 2, PCIe3 x16 (16,8,4,1)*
20
Slot 1, PCIe3 x8 (8,4,1)*
21
4-pin power connector
22
DIMM slots
