Removal and replacement procedures 36
8.

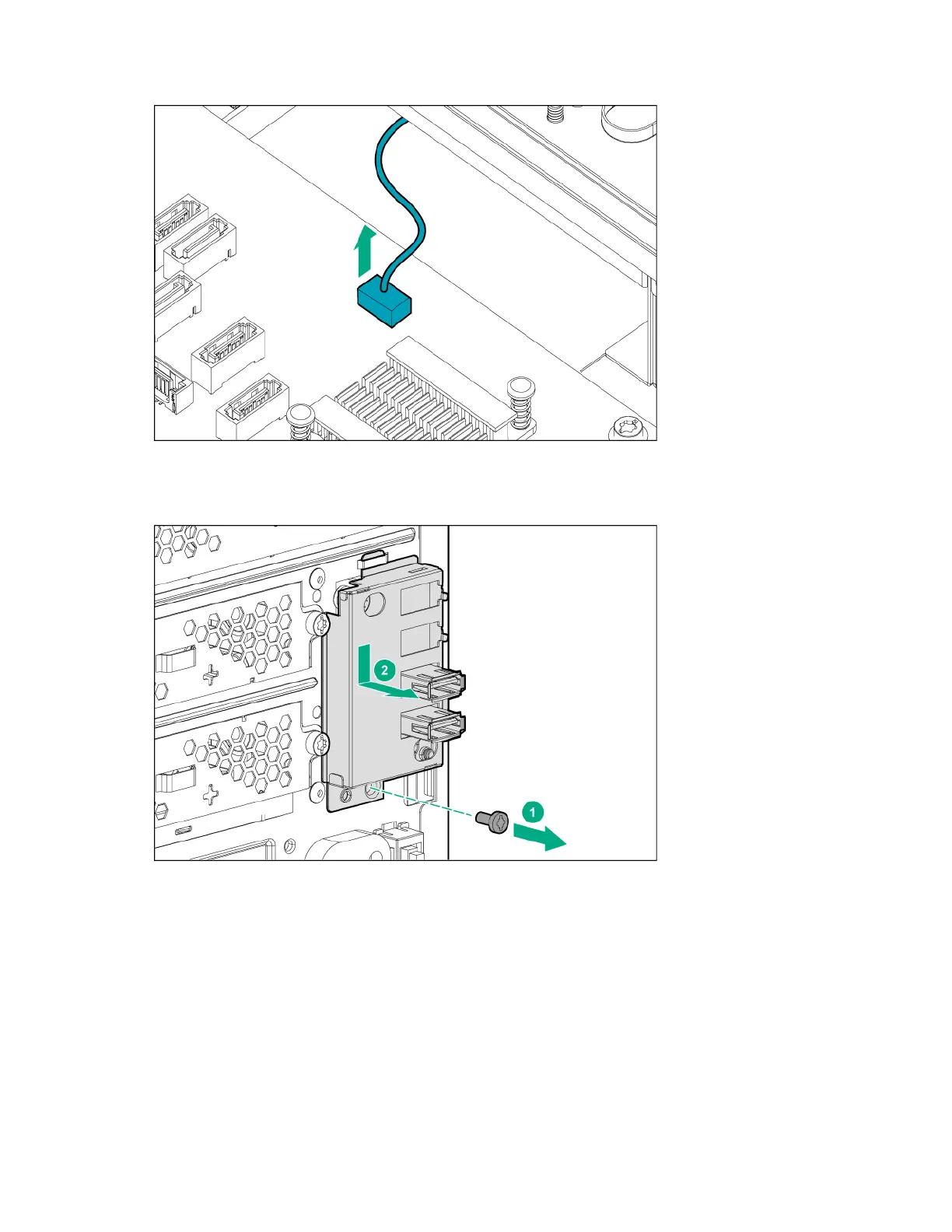

Disconnect the front USB module cable from the system board.
9. Remove the front USB module:
a. Remove one screw on the module from the front panel.
b. Move the module down and pull the cable out from the chassis.
To replace the components, reverse the removal procedure.
Front LEDs and power button module
To remove the component:
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the access panel (on page 24).
4. Remove the tower bezel ("Tower bezel" on page 25).
