HPE ProLiant ML10 Gen9

Component identification 63
* For more information on the expansion slot specifications, see "PCIe expansion slot definitions (on page 63)."
PCIe expansion slot definitions
Expansion
slot number
Technology
Bus
Width
Connector
Width
Form Factor
1
PCIe 3.0
x8
x8
Full-height
Half-length
2
PCIe 3.0
x8
x16
Full-height
Half-length
3
PCIe 3.0
x4
x4
Full-height
Half-length
4
PCIe 3.0
x1
x4
Full-height
Half-length

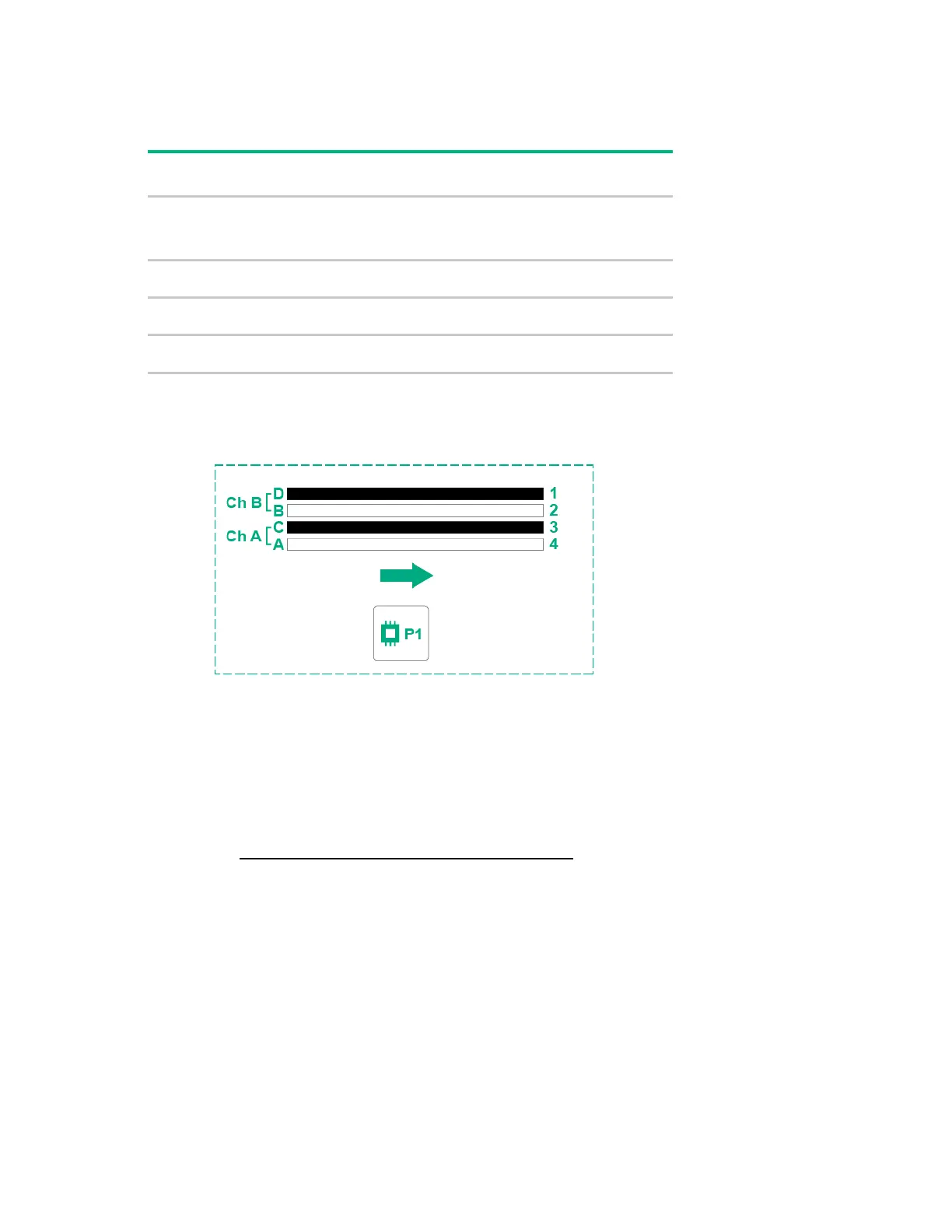

DIMM slot locations
The arrow points to the front of the server.
Drive numbering
The server supports up to 6 LFF non-hot-plug drives when a drive enablement option is installed in the
upper media bay, or 5 LFF non-hot-plug drives plus one optical drive when a slim optical drive enablement
option is installed in the upper media bay. For more information, see the HPE ProLiant ML10 Gen9 Server
User Guide (http://www.hpe.com/support/ML10Gen9/docs).
