Removal and replacement procedures 45
4.

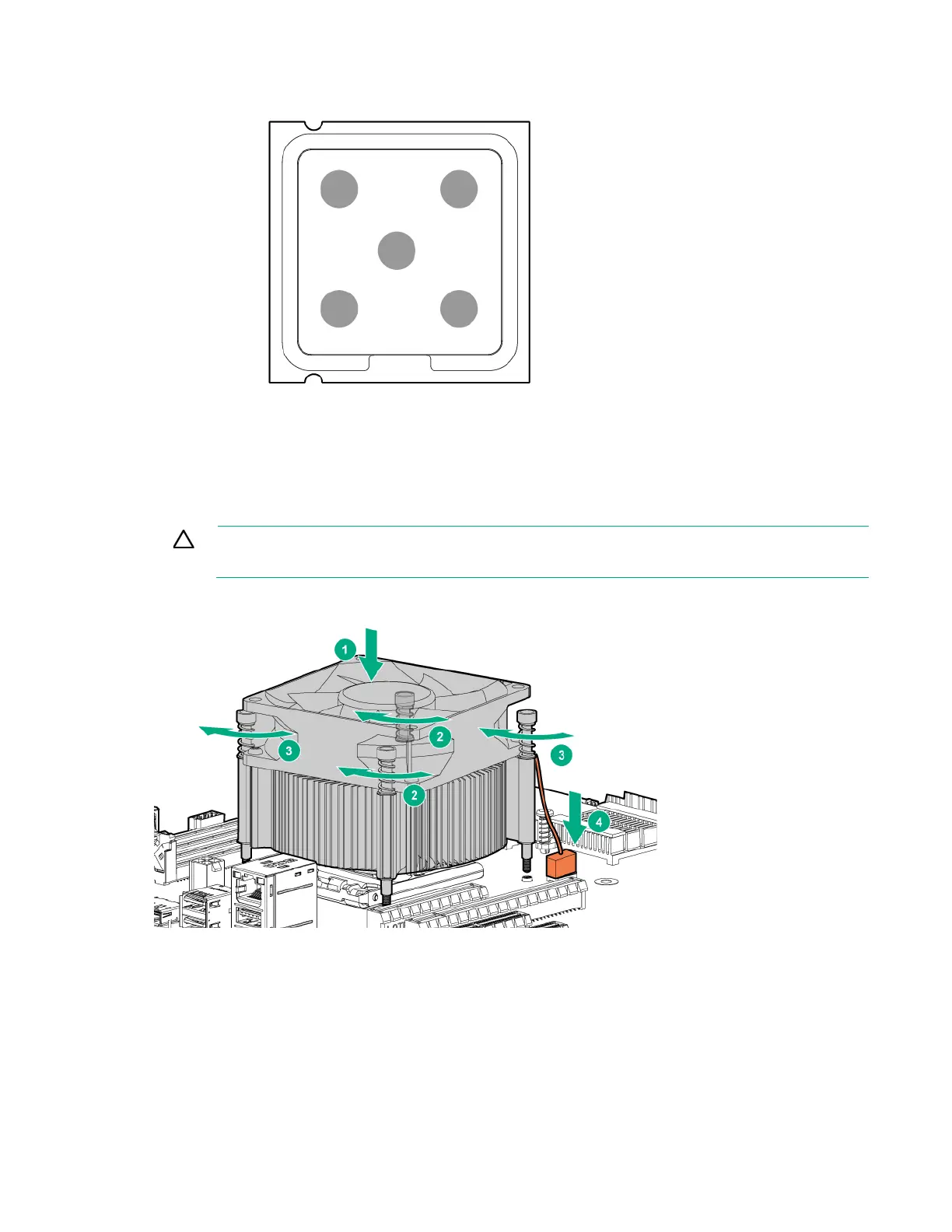

Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
5. Install the heatsink:
a. Position the heatsink on the processor backplate.
b. Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws.
c. Finish the installation by completely tightening the screws in the same sequence.
d. Connect the processor fan cable.
CAUTION:
The fan does not have a fan guard. Special attention is needed when removing or
installing the fan to prevent finger injury.
6. Return the server to an upright position.
7. Install the access panel.
8. Connect each power cord to the server.
9. Connect each power cord to the power source.
10. Power up the server.
