Removal and replacement procedures 37
5.
Place the server on its side.
6. Disconnect the front LEDs and power button module.

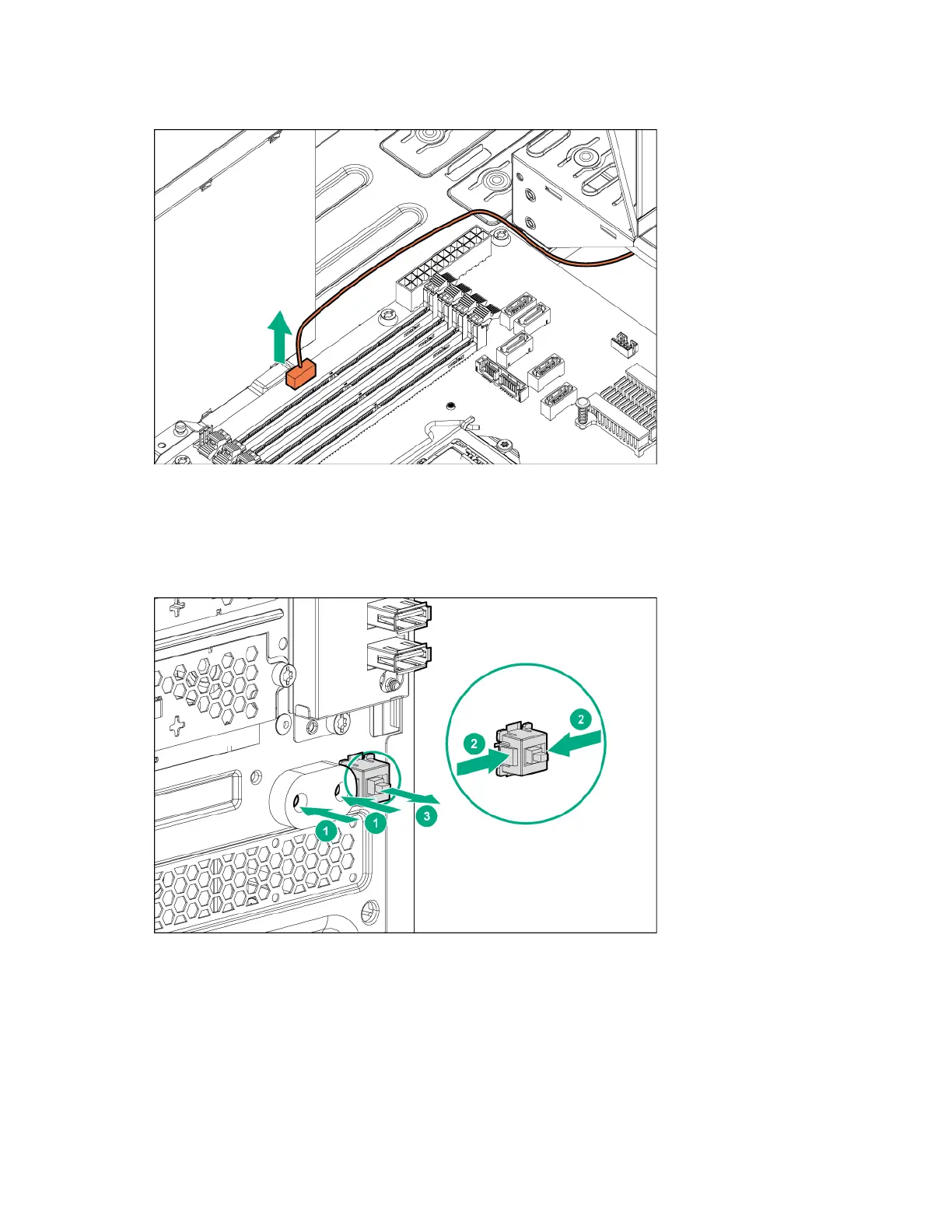

7. Remove the front LEDs and buttons cable:
a. Press LEDs inward into the chassis.
b. Release the power button.
c. Pull the front LEDs and power button module cable away from the chassis.
d. Use both hands to ensure the two LEDs get through the power buttons hole.
To replace the component, reverse the removal procedure.
Ambient temperature sensor cable
To remove the component:
1. Power down the server (on page 24).
2. Remove all power:
a. Disconnect each power cord from the power source.
