Removal and replacement procedures 51
7.

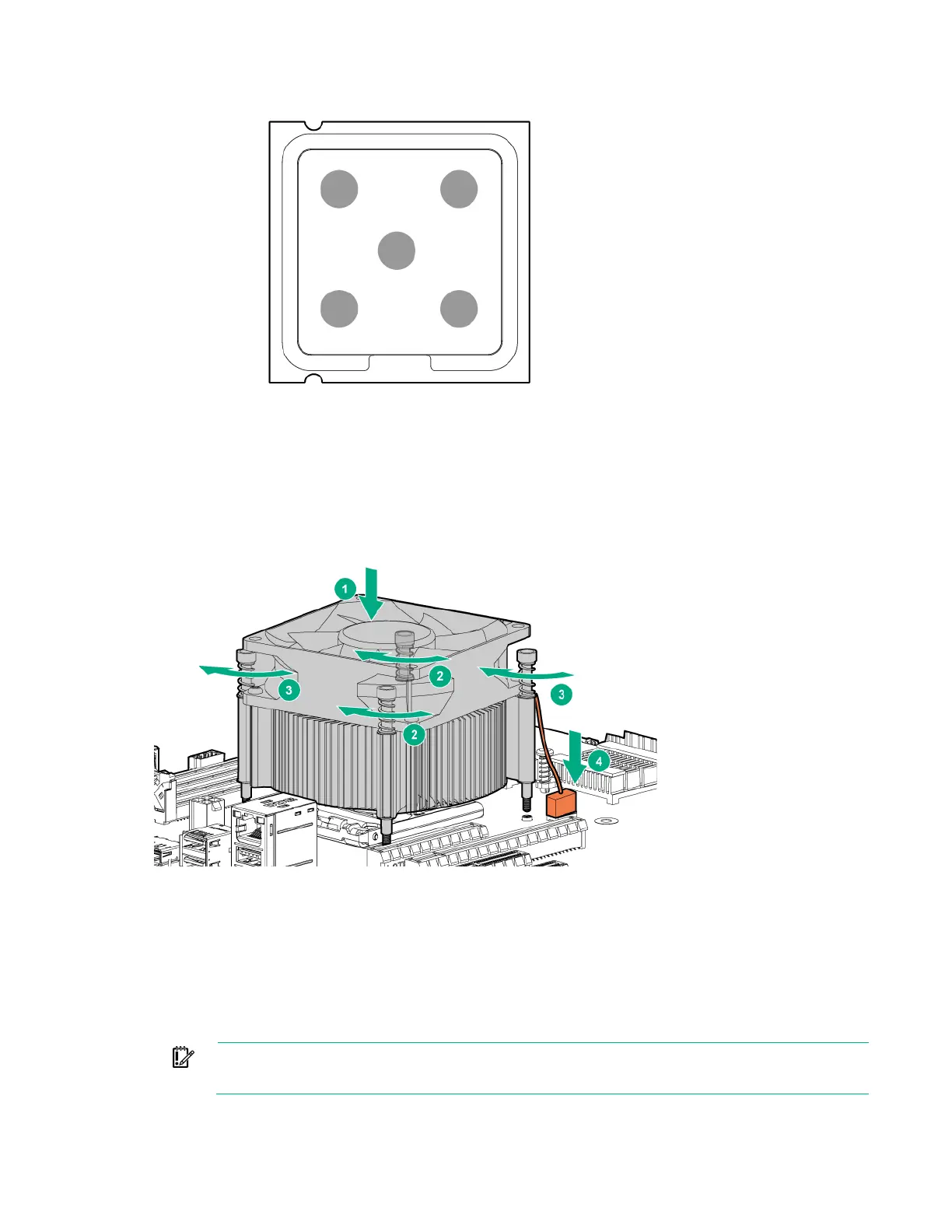

Apply all the grease to the top of the processor in the following pattern to ensure even distribution.
8. Install the heatsink:
a. Position the heatsink on the processor backplate.
b. Tighten one pair of diagonally opposite screws halfway, and then tighten the other pair of screws.
c. Finish the installation by completely tightening the screws in the same sequence.
d. Connect processor fan cable to system board.
9. Install the DIMMs.
10. Install all components removed from the failed system board.
11. Connect all cables disconnected from the failed system board.
12. Install the access panel.
13. Connect each power cord to the server.
14. Connect each power cord to the power source.
15. Power up the server.
IMPORTANT:
Install all components with the same configuration that was used on the failed
system board.
